Key Specifications
Engine
Single cylinder, four-stroke
Torque
9.20 Nm (0.9 kgf-m or 6.8 ft.lbs) @ 7000 Revolutions
Weight
102.8 kg / 226.6 lbs
Fuel Capacity
7.50 litres / 1.98 gallons
Advertisement

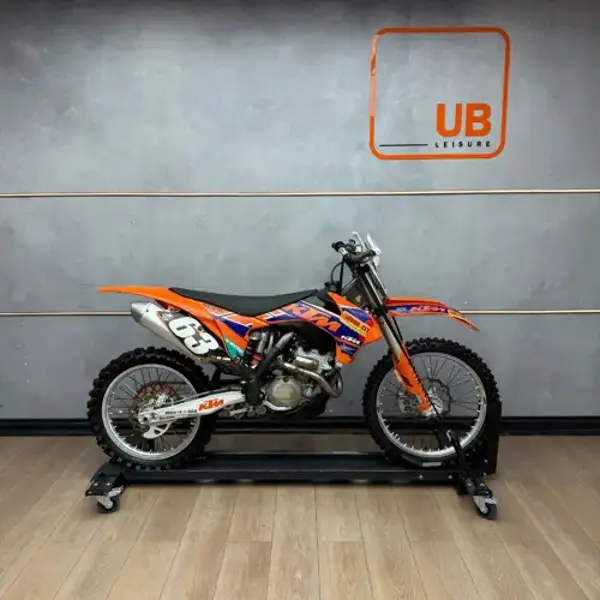

Full 2013 KTM 250 SX-F Specifications
Ground Clearance (mm)
375 mm
Ground Clearance (in.)
14.8 inches
Seat Height
992 mm / 39.1 in.
Wheelbase
1,495 mm / 58.9 in.
Height
1,140 mm / 44.9 in.
Length
2,090 mm / 82.3 in.
Width
830 mm / 32.7 in.
Dry Weight
102.8 kg / 226.6 lbs
Fuel Capacity
7.50 litres / 1.98 gallons
Fuel Control
Single Overhead Cams (SOHC)
Engine Type
Single cylinder, four-stroke
Displacement (ci)
15.25 cubic inches
Displacement (cc)
249.91 cc
Bore x Stroke (mm)
78.0 x 52.3 mm
Bore x Stroke (in,)
3.1 x 2.1 inches
Fuel System
Carburettor
Compression Ratio
10.6:1
Engine Lubrication
Forced oil lubrication with 2 Eaton pumps
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Starter
Electric
Valve System
2
Clutch
Wet multi-disc clutch / hydraulically operated
Final Drive
Chain
Gearbox
5-speed
Primary Drive
13:48. Primary drive: 22:68.
Frame Type
Central tube frame made of chrome molybdenum steel tubing
Suspension - Front
WP ?Suspension Up Side Down 4860 MXMA CC
Suspension - Rear
WP ?Suspension 5018 BAVP DCC
Rake
26.5°
Wheel Travel - Front
205 mm / 8.1 in.
Wheel Travel - Rear
185 mm / 7.3 in.
Brakes - Front Diameter (in.)
8.7 inches
Brakes - Front Diameter (mm)
220 mm
Brakes - Rear Diameter (in.)
8.3 inches
Brakes - Rear Diameter (mm)
210 mm
Brakes - Front
Single disc. Four-piston calipers.
Brakes - Rear
Single disc. Two-piston calipers.
Tyres - Front
100/80-17
Tyres - Rear
110/80-17
