Key Specifications
Torque
111.00 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 7300 Revolutions">RPM
Fuel Capacity
17.00 litres

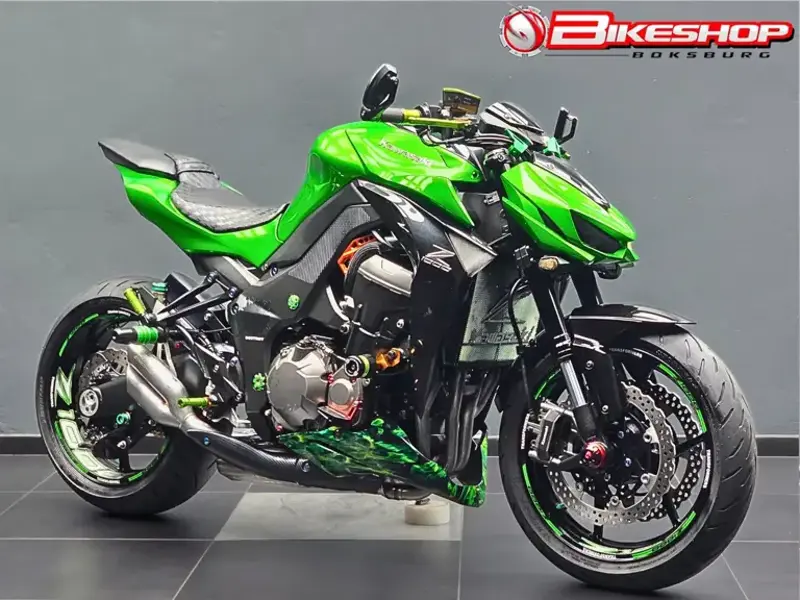

Full 2015 Kawasaki Z 1000 Specifications
Colours
Green/Black, Black/Grey, Orange/Grey
Width (mm)
790 mm
Width (in.)
31.1 inches
Wheelbase (mm)
1,435 mm
Wheelbase (in.)
56.5 inches
Seat Height (mm)
815 mm
Seat Height (in.)
32.1 inches
Length (mm)
2,045 mm
Length (in.)
80.5 inches
Height (mm)
1,055 mm
Height (in.)
41.5 inches
Ground Clearance (mm)
125 mm
Ground Clearance (in.)
4.9 inches
Wet Weight (lbs.)
485.0 pounds
Wet Weight (kg)
220.0 kg
Fuel Capacity (l)
17.00 litres
Fuel Capacity (gal.)
4.49 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Bore x Stroke (in,)
3.0 x 2.2 inches
Bore x Stroke (mm)
77.0 x 56.0 mm
Engine Type
V2, four-stroke
Displacement (ci)
63.64 cubic inches
Displacement (cc)
1043.00 cc
Fuel System
Injection. 38 mm x 4 (Keihin) with oval sub-throttles
Compression Ratio
11.8:1
Engine Lubrication
Forced lubrication, wet sump with oil cooler
Ignition
Digital
Starter
Electric
Valve System
4
Clutch
Wet multi-disc, manual
Final Drive
Chain
Gearbox
6-speed
Primary Drive
X-Ring Chain
Trail (in.)
4.1 inches
Trail (mm)
104 mm
Frame Type
Twin-tube, aluminium
Suspension - Front
41 mm inverted fork with stepless compression and rebound damping and spring preload adjustability
Suspension - Rear
Horizontal Back-link, gas-charged, with stepless rebound damping and preload adjustability
Rake
24.5°
Brakes - Rear Diameter (mm)
250 mm
Brakes - Rear Diameter (in.)
9.8 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front
Double disc. Floating discs. Optional ABS.
Brakes - Rear
Single disc. Optional ABS.
Tyres - Front
120/70-ZR17
Tyres - Rear
190/50-ZR17
