Key Specifications
Engine
Single cylinder, two-stroke
Fuel Capacity
0.61 US gallons

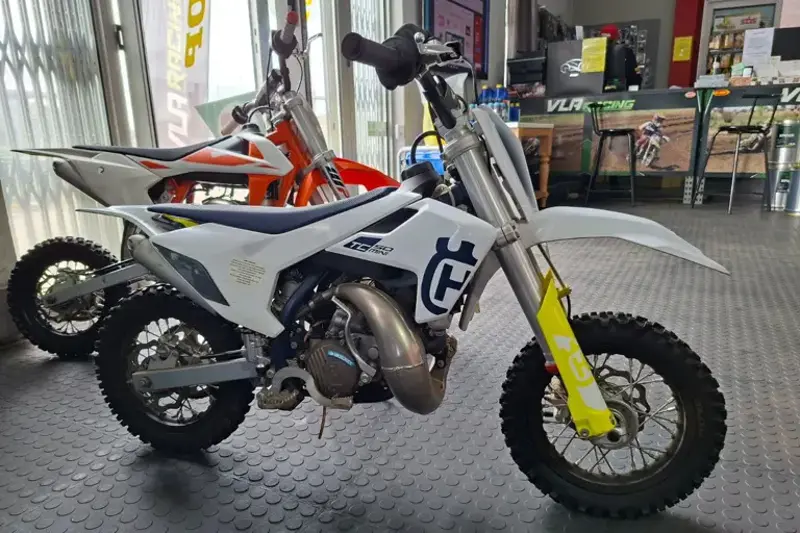

Full 2020 Husqvarna TC 50 Specifications
Colours
White/blue/yellow
Warranty
2 Years
Ground Clearance (in.)
9.9 inches
Ground Clearance (mm)
252 mm
Seat Height (in.)
26.9 inches
Seat Height (mm)
684 mm
Wheelbase (in.)
40.6 inches
Wheelbase (mm)
1032 mm
Dry Weight (kg)
41.5
Dry Weight (lbs.)
91.5 pounds
Fuel Capacity (gal.)
0.61 US gallons
Fuel Capacity (l)
2.30 litres
Oil Capacity (l)
0.90 litres
Oil Capacity (Quarts)
0.95 US quarts
Bore x Stroke (in,)
1.6 x 1.6 inches
Bore x Stroke (mm)
39.5 x 40.0 mm
Displacement (cc)
49.0 cc
Displacement (ci)
2.99 cubic inches
Engine Type
Single cylinder, two-stroke
Fuel System
Injection
Engine Lubrication
Mixture oil lubrication
Ignition
Seletra 2p D36
Starter
Kick
Clutch
Centrifugal clutch (adjustable)
Final Drive
Chain (final drive)
Gearbox
Automatic
Primary Drive
Single-speed automatic. Primary drive: 61.
Wheel Travel - Front (in.)
8.1 inches
Wheel Travel - Front (mm)
205 mm
Wheel Travel - Rear (in.)
7.3 inches
Wheel Travel - Rear (mm)
185 mm
Frame Type
Central-tube frame with double-cradle
Suspension - Front
WP-USD, AER 35, 35 mm
Suspension - Rear
WP shock absorber
Rake
24.0°
Brakes - Front
Single disc
Brakes - Rear
Single disc
