Key Specifications
Engine
Single cylinder, two-stroke
Fuel Capacity
2.30 litres

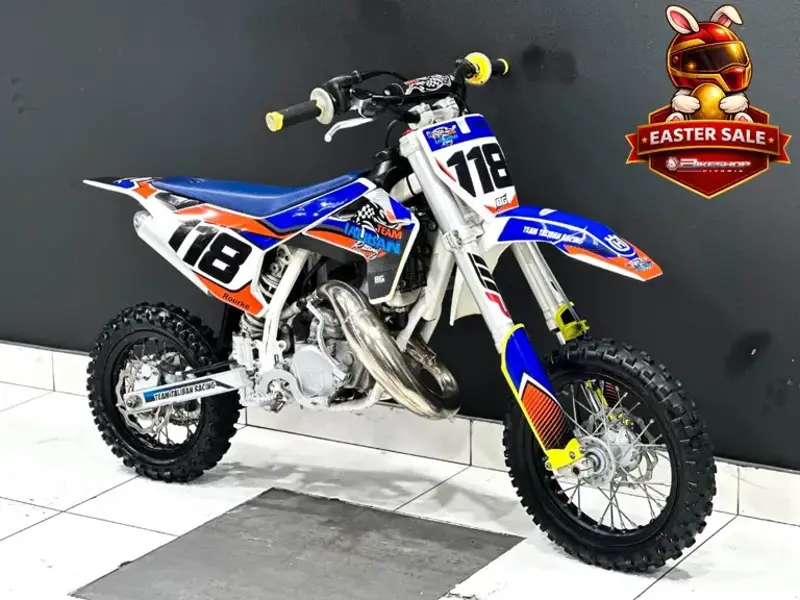

Full 2018 Husqvarna TC 50 Specifications
Colours
White/blue/yellow
Warranty
2 Years
Wheelbase (mm)
1,032 mm
Wheelbase (in.)
40.6 inches
Seat Height (mm)
684 mm
Seat Height (in.)
26.9 inches
Ground Clearance (mm)
252 mm
Ground Clearance (in.)
9.9 inches
Oil Capacity (Quarts)
0.06 quarts
Oil Capacity (l)
0.90 litres
Fuel Capacity (l)
2.30 litres
Fuel Capacity (gal.)
0.61 gallons
Dry Weight (lbs.)
91.5 pounds
Dry Weight (kg)
41.5
Engine Type
Single cylinder, two-stroke
Bore x Stroke (in,)
1.6 x 1.6 inches
Bore x Stroke (mm)
39.5 x 40.0 mm
Displacement (ci)
2.99 cubic inches
Displacement (cc)
49.00 cc
Fuel System
Injection
Engine Lubrication
Mixture oil lubrication
Ignition
Seletra 2p D36
Starter
Kick
Clutch
Centrifugal clutch (adjustable)
Final Drive
Chain
Gearbox
Automatic
Primary Drive
Single-speed automatic. Primary drive: 61.
Wheel Travel - Front (in.)
8.1 inches
Wheel Travel - Front (mm)
205 mm
Wheel Travel - Rear (in.)
7.3 inches
Wheel Travel - Rear (mm)
185 mm
Frame Type
Central-tube frame with double-cradle
Suspension - Front
WP-USD, AER 35, 35 mm
Suspension - Rear
WP shock absorber
Rake
24.0°
Brakes - Rear Diameter (in.)
6.3 inches
Brakes - Rear Diameter (mm)
160 mm
Brakes - Front Diameter (mm)
160 mm
Brakes - Front Diameter (in.)
6.3 inches
Brakes - Front
Single disc
Brakes - Rear
Single disc
