Husqvarna FC250 Specs

2020 - 2023 • 4 variants

The Husqvarna FC250 is a motocross bike produced from 2020 to 2023 across 4 variants. It is powered by a reed intake. displacing 249.9 cc.

About the Husqvarna FC250

Documented here are the full technical specifications for the Husqvarna FC250, a Cross / motocross motorcycle with a production run from 2014 to 2023. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

AdSense - 728Ã90

Husqvarna FC250 by Year

2023 Husqvarna FC250 View specs →

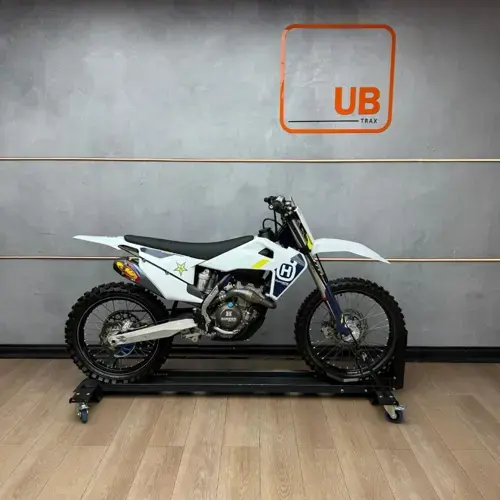

2022 Husqvarna FC250 View specs →

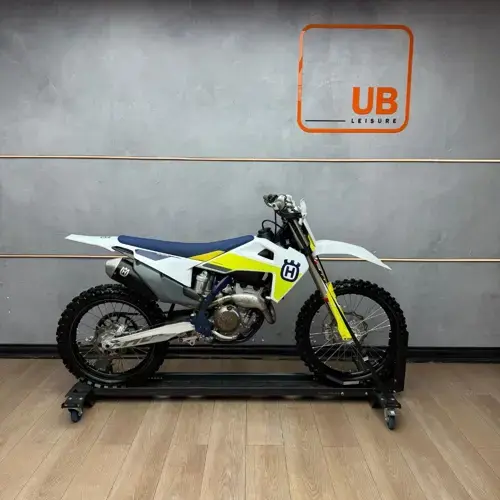

2021 Husqvarna FC250 View specs →

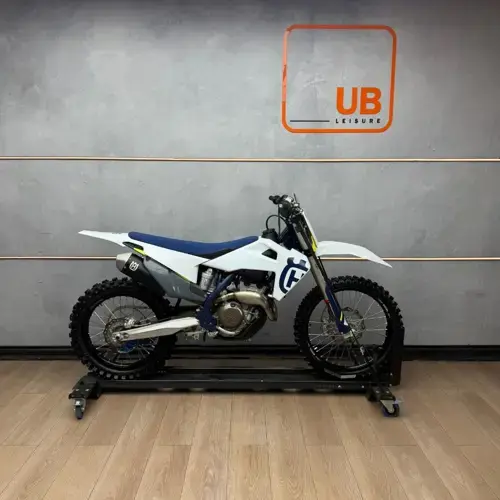

2020 Husqvarna FC250 View specs →

Spec Evolution

How key specs changed across production years.

Specification	2014	2016	2017	2018	2019	2020	2021	2022	2023
Ground Clearance (mm)	375 mm	370 mm ↓	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm	336 mm ↓
Ground Clearance (in.)	14.8 inches	14.6 inches ↓	14.6 inches	14.6 inches	14.6 inches	14.6 inches	14.6 inches	14.6 inches	13.2 inches ↓
Fuel Control	DOHC	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)
Displacement (cc)	249.91 cc	249.91 cc	249.91 cc	249.91 cc	249.9 cc	249.9 cc	249.9 cc	249.9 cc	249.9 cc
Comments	Swedish made bike.	-	-	-	-	-	-	-	Traction control.
Brakes - Rear Diameter (mm)	220 mm	220 mm	220 mm	220 mm	-	-	-	-
Brakes - Rear Diameter (in.)	8.7 inches	8.7 inches	8.7 inches	8.7 inches	-	-	-	-
Brakes - Front Diameter (mm)	260 mm	260 mm	260 mm	260 mm	-	-	-	-
Brakes - Front Diameter (in.)	10.2 inches	10.2 inches	10.2 inches	10.2 inches	-	-	-	-
Bore x Stroke (mm)	78.0 x 52.3 mm	78.0 x 52.3 mm	78.0 x 52.3 mm	78.0 x 52.3 mm	78.0 x 52.3 mm	78.0 x 52.3 mm	78.0 x 52.3 mm	78.0 x 52.3 mm	81.0 x 48.5 mm ↑
Bore x Stroke (in,)	3.1 x 2.1 inches	3.1 x 2.1 inches	3.1 x 2.1 inches	3.1 x 2.1 inches	3.1 x 2.1 inches	3.1 x 2.1 inches	3.1 x 2.1 inches	3.1 x 2.1 inches	3.2 x 1.9 inches ↑
Seat Height	992 mm / 39.1 in.	960 mm / 37.8 in. ↓	960 mm / 37.8 in.	960 mm / 37.8 in.	950 mm / 37.4 in. ↓	950 mm / 37.4 in.	940 mm / 37.0 in. ↓	940 mm / 37.0 in.	939 mm / 37.0 in. ↓
Frame Type	Central tube frame made of chrome molybdenum steel tubing	25CrMo4 steel central-tube	25CrMo4 steel central-tube	25CrMo4 steel central-tube	25CrMo4 steel central-tube	25CrMo4 steel central-tube	Central double-cradle-type 25CrMo4 steel	Central double-cradle-type 25CrMo4 steel	Central double-cradle-type 25CrMo4 steel
Dry Weight	104.1 kg / 229.5 lbs	101.1 kg / 222.9 lbs ↓	98.8 kg / 217.8 lbs ↓	98.8 kg / 217.8 lbs	99.5 kg / 219.4 lbs ↑	99.5 kg / 219.4 lbs	99.5 kg / 219.4 lbs	99.5 kg / 219.4 lbs	101.5 kg / 223.8 lbs ↑
Engine Detail	Reed intake.	-	-	-	-	-	-	-	Titanium valves
Brakes - Front	Single disc	Single disc	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper	Single disc. Brembo twin-piston floating calliper
Wheelbase	1,482 mm / 58.3 in.	1,482 mm / 58.3 in.	1,482 mm / 58.3 in.	1,482 mm / 58.3 in.	1482 mm / 58.3 in. ↑	1482 mm / 58.3 in.	1482 mm / 58.3 in.	1482 mm / 58.3 in.	1482 mm / 58.3 in.
Brakes - Rear	Single disc	Single disc	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper	Single disc. Brembo single-piston floating calliper
Fuel Capacity	7.50 litres / 1.98 gallons	7.00 litres / 1.85 gallons ↓	7.00 litres / 1.85 gallons	7.00 litres / 1.85 gallons	7.00 litres / 1.85 US gallons	7.00 litres / 1.85 US gallons	7.00 litres / 1.85 US gallons	7.00 litres / 1.85 US gallons	7.20 litres / 1.90 US gallons ↑
Suspension - Front	WP Suspension Up Side Down 4CS	WP USD ? 48 mm 4CS closed cartridge ↑	WP-USD, AER 48, ? 48 mm	WP-USD, AER 48, ? 48 mm	WP-USD, AER 48, Ø 48 mm	WP-USD, AER 48, Ø 48 mm	WP XACT-USD, Ø 48 mm	WP XACT-USD, Ø 48 mm	WP XACT-USD, Ø 48 mm
Suspension - Rear	WP Monoshock with linkage	WP Monoshock with linkage	WP Monoshock with linkage	WP Monoshock with linkage	WP Monoshock with linkage	WP Monoshock with linkage	WP XACT Monoshock with linkage	WP XACT Monoshock with linkage	WP XACT Monoshock with linkage
Fuel System	Injection. Keihin Digital Fuel Injection	-	-	Carburettor	Carburettor	Carburettor	Carburettor	Carburettor	Carburettor
Colours	Blue/yellow	Blue/yellow/white	Blue/yellow/white	White/yellow/blue	White/yellow/blue	White/yellow/blue	White/yellow/blue	White/yellow/blue	White/yellow/grey
Clutch	Wet multi-disc clutch DDS / Brembo hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet, multi-disc clutch, Magura hydraulics	Wet multi-disc DS clutch, Brembo hydraulics	Wet multi-disc DS clutch, Brembo hydraulics
Final Drive	Chain	Chain	Chain	Chain	Chain (final drive)	Chain (final drive)	Chain (final drive)	Chain (final drive)	Chain (final drive)
Length	2,260 mm / 89.0 in.	2,260 mm / 89.0 in.	2,260 mm / 89.0 in.	2,260 mm / 89.0 in.	2260 mm / 89.0 in. ↑	2260 mm / 89.0 in.	2260 mm / 89.0 in.	2260 mm / 89.0 in.	2260 mm / 89.0 in.
Engine Lubrication	Forced oil lubrication with 2 Eaton pumps	-	-	-	-	-	-	-
Gearbox	6-speed	5-speed ↓	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed
Tyres - Rear	140/90-18	140/90-18	140/90-18	140/90-18	-	-	-	-
Primary Drive	-	-	-	-	-	-	-	5/8 x 1/4´ chain	5/8 x 1/4´ X-ring chain
Rake	26.5°	26.1° ↓	26.1°	26.1°	26.1°	26.1°	26.1°	26.1°	26.1°
Wheel Travel - Front	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	310 mm / 12.2 in. ↑	310 mm / 12.2 in.	300 mm / 11.8 in. ↓	300 mm / 11.8 in.	305 mm / 12.0 in. ↑
Wheel Travel - Rear	335 mm / 13.2 in.	300 mm / 11.8 in. ↓	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	300 mm / 11.8 in.	293 mm / 11.5 in. ↓
Ignition	Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment	Keihin EMS	Keihin EMS	Keihin EMS	Keihin EMS	Keihin EMS	Keihin EMS	Keihin EMS	Hitachi Astemo EMS
Power-to-Weight Ratio	-	0.4550 HP/kg	0.4656 HP/kg ↑	0.4656 HP/kg	0.4623 HP/kg	0.4623 HP/kg	0.4623 HP/kg	0.4623 HP/kg	0.4532 HP/kg
