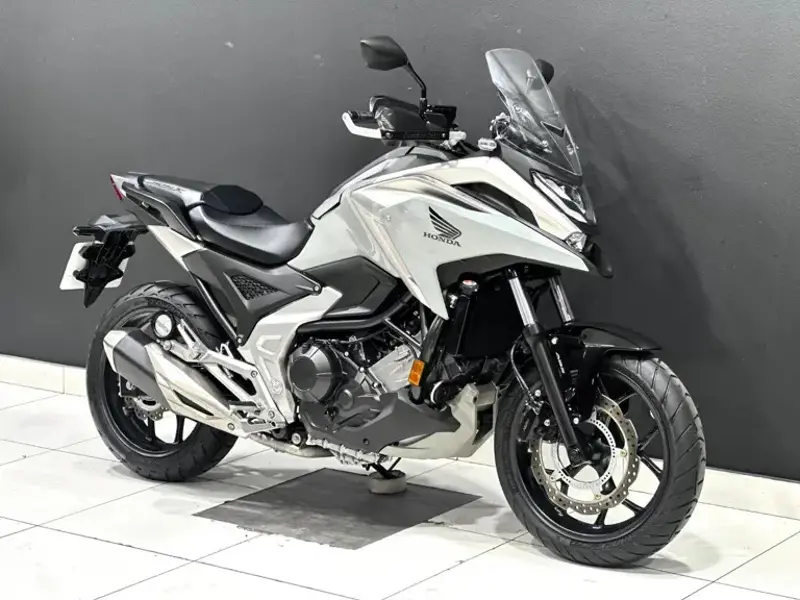

2023 Honda NC750X Overview
For 2023, Honda offers the NC750X as a super motard motorcycle with 745 cc on tap. The 2023 Honda NC750X is built around a Twin, four-stroke engine running Single Overhead Cams (SOHC) valve actuation, a compression ratio of 10.7:1. Internally, bore and stroke are 77 x 80 mm. Out on the road, the NC750X delivers 69 Nm @ 4000 rpm of torque. In everyday use, the 2023 NC750X tips the scales at 214 kg, carries a 14.10-litre fuel tank, offers a seat height of 800 mm and spans a 1527 mm wheelbase. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2023 Honda NC750X spec sheet below.
2023 NC750X - Pros & Cons
Strengths
-
🔧
Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.
Considerations
-
⚙️
Chain final drive upkeep: A chain drivetrain is the most common setup in its class, but it's also the one that demands the most regular hands-on maintenance.
Wear Points & Servicing Notes
Fuelling & injector care
Fuelling on the NC750X comes from fuel injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.
Valve clearance checks
Valve clearances on Single Overhead Cams (SOHC)-equipped engines like the NC750X's drift slowly with mileage rather than failing suddenly - sticking to the service interval keeps it a non-issue.
Brake disc and pad wear
Single disc. ABS. Hydraulic. Two-piston calipers. up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.
Suspension condition on used examples
Suspension duties are handled by Showa 41mm telescopic fork up front and Monoshock damper, Pro-Link swingarm at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.
Final drive maintenance
Chain final drive on the NC750X means routine lubing and tension checks are part of ownership - skip them and sprocket wear accelerates noticeably.
Frame & chassis check
The Diamond; steel pipe chassis holds up well with normal use; on a used bike it's still worth checking the head-stock and swingarm pivot area for impact damage or corrosion.
NC750X - Buying & Maintenance Guide
What to check before buying
A pre-purchase check on the 2023 Honda NC750X should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept NC750X settles to a smooth idle within seconds.
Oil and filter changes
Oil changes are the cheapest insurance you can buy for a NC750X's engine - keep to the manufacturer's interval rather than stretching it. The sump holds 4 litres, so budget for that volume of quality motorcycle-specific engine oil. Use the viscosity grade the manual specifies, not whatever's on sale.
Fuel system care
Injector systems like the NC750X's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.
Valve clearance service
There's no reliable seat-of-the-pants way to tell if a NC750X's valve clearances are in spec - a light top-end tick is the only real warning sign, and by then some wear has already happened. Service records are the only proof.
2023 Honda NC750X - Frequently Asked Questions
What engine does the 2023 Honda NC750X have?
The 2023 Honda NC750X uses a Twin, four-stroke engine with 745 cc of displacement.
How much does the 2023 Honda NC750X weigh?
The 2023 Honda NC750X weighs 214 kg. This is the manufacturer's wet figure.
How much power does the 2023 Honda NC750X make?
The 2023 Honda NC750X produces 69 Nm @ 4000 rpm of torque.
What is the fuel tank capacity of the 2023 Honda NC750X?
The 2023 Honda NC750X has a 14.10-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 235-282 km between stops.
Is the 2023 Honda NC750X suitable for shorter riders?
The 2023 Honda NC750X has a seat height of 800 mm. This is a moderate seat height that suits a wide range of rider heights.
What brakes does the 2023 Honda NC750X have?
The 2023 Honda NC750X uses Single disc. ABS. Hydraulic. Two-piston calipers. at the front and Single disc. ABS. Hydraulic. Single-piston caliper. at the rear.
What tyre sizes does the 2023 Honda NC750X use?
The front tyre size on the 2023 Honda NC750X is 120/70-ZR17.
How much oil does the 2023 Honda NC750X take?
The 2023 Honda NC750X takes 4 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.
Honda NC750X Spec Evolution
The Honda NC750X was produced across 9 model years (2014-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2014 |
2016 |
2017 |
2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
| Wet Weight |
219.0 kg / 482.8 lbs |
219.0 kg / 482.8 lbs |
220.0 kg / 485.0 lbs |
220.0 kg / 485.0 lbs |
217.3 kg / 479.0 lbs |
217.3 kg / 479.0 lbs |
214.0 kg / 471.8 lbs |
214.0 kg / 471.8 lbs |
214.0 kg / 471.8 lbs |
| Seat Height |
830 mm / 32.7 in. |
830 mm / 32.7 in. |
830 mm / 32.7 in. |
830 mm / 32.7 in. |
830 mm / 32.7 in. |
830 mm / 32.7 in. |
800 mm / 31.5 in. |
803 mm / 31.6 in. |
800 mm / 31.5 in. |
| Fuel Capacity |
14.10 litres / 3.73 gallons |
14.10 litres / 3.73 gallons |
14.10 litres / 3.73 gallons |
14.10 litres / 3.73 gallons |
14.10 litres / 3.73 US gallons |
14.10 litres / 3.73 US gallons |
14.10 litres / 3.73 US gallons |
14.38 litres / 3.80 US gallons |
14.10 litres / 3.73 US gallons |
| Ground Clearance (in.) |
6.5 inches |
6.5 inches |
6.5 inches |
6.5 inches |
6.5 inches |
6.5 inches |
5.7 inches |
5.7 inches |
5.7 inches |
| Displacement (cc) |
745.00 cc |
745.00 cc |
745.00 cc |
745.00 cc |
745.0 cc |
745.0 cc |
745.0 cc |
745.0 cc |
745.0 cc |
| Comments |
Model ID: NC700XDd. Dual clucth. |
- |
- |
- |
- |
- |
- |
Throttle By Wire. Model id NC750XA. |
Throttle By Wire. Model id NC750XA. |
| Ground Clearance (mm) |
165 mm |
165 mm |
165 mm |
165 mm |
165 mm |
165 mm |
145 mm |
145 mm |
145 mm |
| Oil Capacity (l) |
3.70 litres |
3.70 litres |
3.70 litres |
3.70 litres |
3.70 litres |
3.70 litres |
4.00 litres |
4.00 litres |
4.00 litres |
Key Specifications
Power
Not published by manufacturer
Torque
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4000 rpm
Top Speed
Not published by manufacturer
Weight
214.0 kg / 471.8 lbs
Fuel Capacity
14.10 litres / 3.73 US gallons
Advertisement
Full 2023 Honda NC750X Specifications
Comments
Throttle By Wire. Model id NC750XA.
Colours
Candy Chromosphere Red, Matte Jeans Blue Metallic, Pearl Deep Mud Grey
Warranty
One year transferable, unlimited-mileage limited warranty.
Ground Clearance (in.)
5.7 inches
Ground Clearance (mm)
145 mm
Storage
22-liter utility compartment
Seat Height
800 mm / 31.5 in.
Wheelbase
1527 mm / 60.1 in.
Height
1330 mm / 52.4 in.
Length
2210 mm / 87.0 in.
Width
846 mm / 33.3 in.
Oil Capacity (Quarts)
4.23 US quarts
Oil Capacity (l)
4.00 litres
Fuel Capacity
14.10 litres / 3.73 US gallons
Wet Weight
214.0 kg / 471.8 lbs
Fuel Control
Single Overhead Cams (SOHC)
Engine Type
Twin, four-stroke
Displacement (ci)
45.46 cubic inches
Displacement (cc)
745.0 cc
CO2
81.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
77.0 x 80.0 mm
Bore x Stroke (in,)
3.0 x 3.1 inches
Fuel System
Injection. PGM-FI electronic fuel injection
Compression Ratio
10.7:1
Emissions
Meets current EPA standards. California version meets current CARB standards.
Fuel Consumption
3.50 litres/100 km (28.6 km/l or 67.21 mpg)
Ignition
Computer controlled digital transistorised with electronic advance
Starter
Electric
Valve System
4
Clutch
Multiplate wet, optional DCT
Final Drive
Chain (final drive)
Gearbox
6-speed
Sprocket
16/43 (front/rear)
Frame Type
Diamond; steel pipe
Suspension - Front
Showa 41mm telescopic fork
Suspension - Rear
Monoshock damper, Pro-Link swingarm
Rake
27.0°
Trail
110 mm / 4.3 in.
Wheel Travel - Front
120 mm / 4.7 in.
Wheel Travel - Rear
120 mm / 4.7 in.
Instrumentation
LCD instruments
Lighting system
LED lights front and rear
Brakes - Front
Single disc. ABS. Hydraulic. Two-piston calipers.
Brakes - Rear
Single disc. ABS. Hydraulic. Single-piston caliper.
Rims
Multi-Spoke Aluminium Cast
Tyres - Front
120/70-ZR17
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
Spot an error? Let us know.
