Key Specifications
Engine
Four stroke , parallel twin, SOHC, 4 valves per cylinder
Power
43.1 kW / 57.8 hp @ 6750 rpm
Torque
69 Nm / 50.9 lb-ft @ 4750 rpm
Weight
214 kg / 471.7 lbs / DCT: 224 kg / 493.8 lbs
Fuel Capacity
14.1 Litres / 3.7 US gal

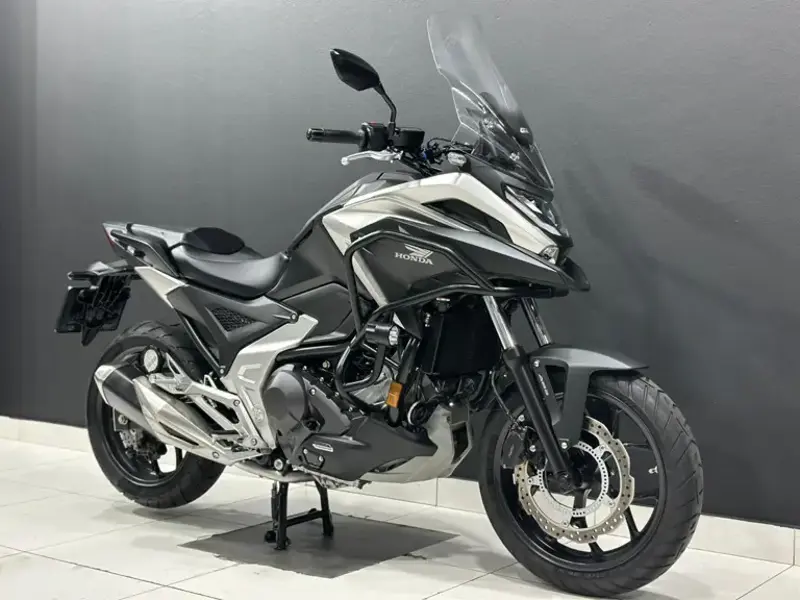

Full 2021 Honda NC 750X / DCT Specifications
Year
2021
Make Model
Honda NC 750X / DCT
Seat Height
800 mm / 31.5 in
Wheelbase
1535 mm / 60.4 in
Ground Clearance
145 mm / 5.7 in
Height
1330 mm / 52.3 in
Length
2210 mm / 87 in
Width
846 mm / 33.3 in
Wet Weight (kg)
214 kg
Fuel Capacity
14.1 Litres / 3.7 US gal
Wet Weight
214 kg / 471.7 lbs / DCT: 224 kg / 493.8 lbs
Displacement
745 cc / 45.4 cu-in
Engine Detail
Four stroke , parallel twin, SOHC, 4 valves per cylinder
Bore x Stroke
77 x 80mm
Compression Ratio
10.7:1
Cooling System
Liquid-cooled
Emissions
EURO5
Fuel Induction
PGM-FI electronic fuel injection
Ignition
Computer-controlled digital transistorised with electronic advance
Starter
Electric
Clutch
Wet multiplate / DCT: Wet multiplate hydraulic 2-clutch
Final Drive
Chain
Final Drive Ratio
2.687 (DCT 2.437)
Gear Ratios
1 2.812 (DCT 2.666) 2 1.894 (DCT 1.904) 3 1.454 (DCT 1.454) 4 1.200 (DCT 1.200) 5 1.033 (DCT 1.033) 6 0.837 (DCT 0.837)
Transmission / Drive
6 Speed Manual / DCT: 6-Speed Dual Clutch Transmission
Frame Type
Rigid tube steel diamond
Suspension - Front
41 mm telescopic forks
Suspension - Rear
Single monoshock damper, Pro-Link swingarm
Rake
27˚
Trail
110 mm / 4.3 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
120 mm / 4.7 in
Brakes - Front
Single 320 mm wavy hydraulic disc 2 piston calipers and sintered metal pads
Brakes - Rear
Single 240 mm wavy hydraulic disc 1 piston caliper and sintered metal pads
ABS
2-channel ABS standard
Rims - Front
17 x 3.50
Rims - Rear
17 x 4.50
Tyres - Front
120/70-ZR17
Tyres - Rear
160/60-ZR17
Wheels
Multi-spoke cast aluminium
