Key Specifications
Engine
Two cylinder boxer, four-stroke
Power
136 hp / 100 kW @ 7750 rpm
Torque
143 Nm / 105.4 lb-ft @ 6250 rpm
Fuel Capacity
30.00 litres

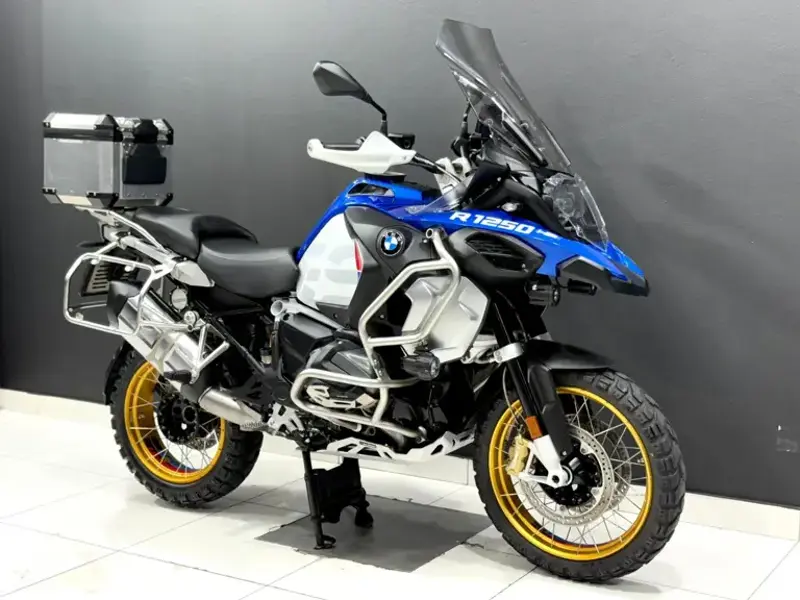

Full 2019 BMW R 1250GS Adventure Specifications
Comments
Windscreen.
Year
2019
Colours
Ice Grey, Style HP, Style Exclusive
Make Model
BMW R 1250GS Adventure
Width (mm)
980 mm
Width (in.)
38.6 inches
Wheelbase (mm)
1525 mm
Wheelbase (in.)
60.0 inches
Seat Heigth -Alternate (mm)
910 mm
Seat Heigth -Alternate (in.)
35.8 inches
Seat Height (mm)
890 mm
Seat Height (in.)
35.0 inches
Length (mm)
2270 mm
Length (in.)
89.4 inches
Height (mm)
1460 mm
Height (in.)
57.5 inches
Seat Height
890 mm to 910 mm / 35 in to 35.8 in 820 mm to 910 mm / 32 in to 35.8 in - possible
Wheelbase
1504 mm / 59.2 in
Length
952 mm / 37.5 in (including mirrors)
Width
952 mm / 37.5 in (including mirrors)
Wet Weight (lbs.)
590.8 pounds
Wet Weight (kg)
268.0 kg
Fuel Capacity (l)
30.00 litres
Fuel Capacity (gal.)
7.93 US gallons
Fuel Capacity
30 Litres / 7.9 US gal
Wet Weight
268 kg / 591 lbs
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Two cylinder boxer, four-stroke
Displacement (ci)
76.52 cubic inches
Displacement (cc)
1254.0 cc
CO2
109.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
102.5 x 76.0 mm
Bore x Stroke (in,)
4.0 x 3.0 inches
Displacement
1254 cc / 76.5 cu-in
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, with two overhead, spur gear driven camshafts , a counterbalance shaft and variable intake camshaft control system BMW ShiftCam, 4 valves per cylinder, Intake 40mm, outlet 34 mm
Fuel System
Injection. Electronic intake pipe injection
Bore x Stroke
102.5 x 76 mm
Compression Ratio
12.5:1
Cooling System
Liquid / Air cooled
Emissions
Closed-loop three-way catalytic converter, exhaust standard , Euro 4
Engine Lubrication
Dry sump
Engine Management
BMS-O
Fuel Consumption
4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Fuel Induction
Electronic intake pipe injection, 52mm Ø throttle valve
Fuel Type
Premium unleaded, 95 (RON)
Starter
Electric 900W
Valve System
4
Battery Capacity
12V/12Ah
Clutch
Wet clutch with anti-hopping function, hydraulically activated
Final Drive
Shaft
Gear Ratios
1st 2.438 2nd 1.714 3rd 1.296 4th 1.059 5th 0.943 6th 0.848
Gearbox
6-speed
Primary Drive
Constant mesh
Primary Drive Ratios
1.650
Secondary Drive Ratio
2.910
Transmission / Drive
Constant mesh 6-speed gearbox with helical gearing system
Trail (in.)
3.9 inches
Trail (mm)
100 mm
Wheel Travel - Front (in.)
8.3 inches
Wheel Travel - Front (mm)
210 mm
Wheel Travel - Rear (in.)
8.7 inches
Wheel Travel - Rear (mm)
220 mm
Frame Type
Two-section frame concept consisting of main frame with bolt-on rear frame, load-bearing engine
Suspension - Front
BMW Motorrad 37mm Telelever, central spring strut
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever, WAD spring strut, continuously adjustable spring preload by means of hand wheel, rebound-stage damping adjustable by hand wheel (Option: Dynamic ESA)
Rake
25.5°
Steering Angle
65.1°
Trail
95.4 mm / 3.8 in
Wheel Travel - Front
210 mm / in
Wheel Travel - Rear
220 mm / 8.7 in
Brakes - Front
2x 305mm floating discs, 4-piston radial brake calipers
Brakes - Rear
Single 276mm disc, 2-piston floating caliper
ABS
BMW Motorrad Integral ABS as standard (part integral), disengageable (option: ABS Pro)
Rims
Aluminium-Gussräder
Tyres - Front
120/70 R19
Tyres - Rear
170/60 R17
Wheels
Cross spoke
Wheels - Front
3.00 x 19
Wheels - Rear
4.50 x 17
