Key Specifications
Power
72 kW / 98 hp @ 6750rpm
Torque
115 Nm / 11.7 kgf-m / 84 ft-lb @ 4750 rpm
Top Speed
198 km/h / 123 mph
Fuel Capacity
24.00 litres

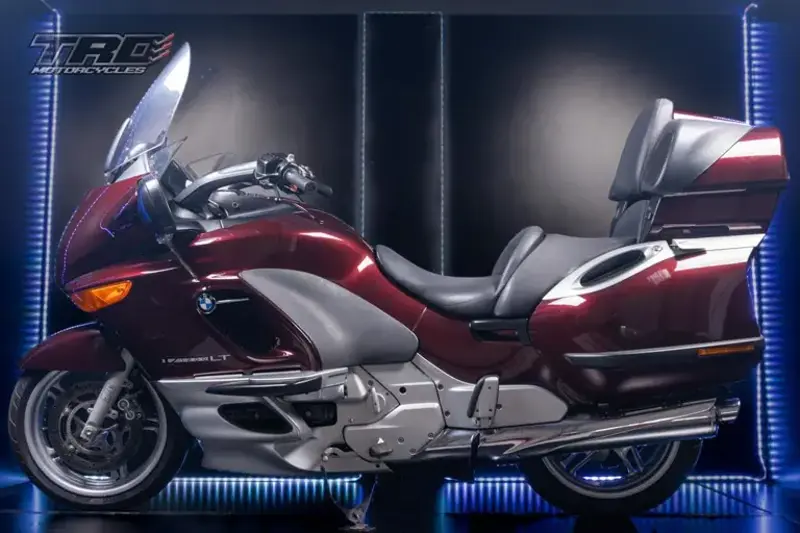

Full 2005 BMW K 1200LT Specifications
Year
2003 - 05
Colours
Anthracite Metallic, Impala Brown Metallic
Make Model
BMW K 1200LT
Wheelbase (in.)
64.4 inches
Wheelbase (mm)
1,633 mm
Wheelbase (in.)
64.3 inches
Wheelbase (mm)
1,637 mm
Width (in.)
42.5 inches
Seat Heigth -Alternate (mm)
800 mm
Seat Heigth -Alternate (in.)
31.5 inches
Seat Height (mm)
770 mm
Seat Height (in.)
30.3 inches
Width (mm)
1,080 mm
Seat Height (mm)
770 mm
Seat Height (in.)
30.3 inches
Length (mm)
2,502 mm
Length (in.)
98.5 inches
Height (mm)
1,395 mm
Height (in.)
54.9 inches
Seat Height
770 mm / 30.3 in
Wet Weight (lbs.)
853.2 pounds
Wet Weight (kg)
387.0 kg
Fuel Capacity (l)
24.00 litres
Fuel Capacity (gal.)
6.34 gallons
Dry Weight (lbs.)
779.3 pounds
Dry Weight (kg)
353.5
Dry Weight (kg)
378
Dry Weight (lbs.)
833.3 pounds
Fuel Capacity (gal.)
6.18 gallons
Fuel Capacity (l)
23.40 litres
Wet Weight (kg)
378
Dry Weight
345 kg / 761 lbs
Fuel Capacity
22 L / 5.8 US gal
Wet Weight
378 kg / 833 lbs
Displacement (cc)
1171.00 cc
Displacement (ci)
71.45 cubic inches
Engine Type
In-line four
Stroke
4
Bore x Stroke (in,)
2.8 x 3.0 inches
Stroke
4
Fuel Control
DOHC
Engine Type
In-line four
Bore x Stroke (mm)
70.5 x 75.0 mm
Displacement (cc)
1171.00 cc
Displacement (ci)
71.45 cubic inches
Displacement
1172 cc / 71.5 cu in
Engine Detail
Four stroke, horizontal in line four cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection / BMW engine management, Motronic MA 2.4 with overrun fuel cut-off
Bore x Stroke
75 x 70.5 mm
Compression Ratio
10.8:1
Compression Ratio
10.8:1
Cooling System
Liquid cooled
Fuel Consumption
6.0 L/100 km / 16.8 km/l / 39.5 US mpg
Fuel Induction
Electronic intake pipe injection
Ignition
MA 2.4 Bosch Motronic
Starter
Electric
Starter
Electric
Valve System
4
Clutch
Single-disc dry clutch, hydraulically operated
Final Drive
Shaft drive (cardan)
Final Drive
Shaft
Gear Ratios
1st 2.050 / 2nd 1.600 / 3rd 1.270 / 4th 0.960 / 5th 0.700:1
Gearbox
5-speed
Transmission / Drive
5 Speed
Trail (in.)
4.6 inches
Trail (mm)
117 mm
Wheel Travel - Front (in.)
1.4 inches
Wheel Travel - Front (in.)
1.4 inches
Wheel Travel - Front (mm)
35 mm
Wheel Travel - Rear (mm)
135 mm
Wheel Travel - Rear (in.)
5.3 inches
Wheel Travel - Front (mm)
35 mm
Frame Type
Bridging frame consisting of die cast aluminium, engine de-coupled from vibration through bearings
Frame Type
Bridge-type frame, die-cast aluminium, engine decoupled from vibrations through bearings
Suspension - Front
Motorrad Telelever, stanchion diameter ∅35 mm, central strut
Suspension - Front
BMW Motorrad Telelever
Suspension - Rear
Die cast Aluminum single sided swinging arm with Paralever, central strut, spring preload adjustable to continuously variable levels by mean of hydraulic hand wheel
Suspension - Rear
Die-cast aluminium single-sided swing arm with BMW Motorrad Paralever
Rake
27.0°
Brakes - Rear Diameter (mm)
285 mm
Brakes - Rear Diameter (in.)
11.2 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front
2 x ∅320mm disc, 4 piston calipers, ABS
Brakes - Front
Double disc
Brakes - Rear
Single ∅285mm disc, 2 piston caliper, ABS
Brakes - Rear
Single disc
Tyres - Front
120/70 ZR17
Tyres - Front
120/70-ZR17
Tyres - Rear
160/70 ZR17
Tyres - Rear
160/70-ZR17
