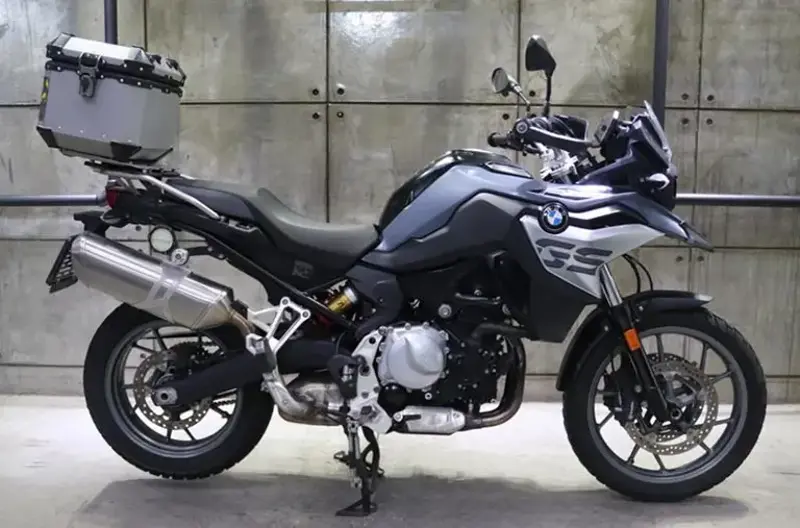

2020 BMW F 750GS Overview
The 2020 BMW F 750GS is an enduro / off-road motorcycle built around 853 cc of displacement. Under the tank sits a Twin, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 12.7:1. 2020 BMW F 750GS delivers 77 hp @ 7500rpm of peak power and 83 Nm @ 6000rpm of torque. The factory-quoted top speed stands at 190 km/h, making it a capable performer in its class. From a practical standpoint, the 2020 F 750GS tips the scales at 224 kg, carries a 15 L fuel tank, offers a seat height of 815 mm and spans a 1559 mm wheelbase. That's roughly 54.5 kg heavier than the average enduro / off-road motorcycle in our database. Scroll down for the complete 2020 BMW F 750GS spec sheet covering every technical detail from suspension travel to tyre sizes.
2020 BMW F 750GS compared with other bikes in the Enduro / Off-Road category
Here is how the 2020 BMW F 750GS stacks up against other bikes in the Enduro / Off-Road category in our database. Each model counts once, using the model year closest to this one, and the comparison covers up to 1434 models.
- Seat height of 815 mm is lower than that of 983 of the other 1145 bikes in the Enduro / Off-Road category.
- Only 224 of the other 1433 bikes in the Enduro / Off-Road category have a larger engine displacement than the 853 cc of the F 750GS.
- With 190 km/h, the F 750GS has the joint 100th highest top speed of 450 bikes in the Enduro / Off-Road category, 28% above the category average of 148 km/h.
- Narrowing the field to the 480 models within five model years of it, the seat height of 815 mm is lower than that of 407 of the other 479.
Versus the 2019 model
The figures we track are unchanged from the 2019 model: peak power, peak torque, wet weight, displacement, seat height and top speed all match.
2020 F 750GS - Pros & Cons
Strengths
-
⚡
Strong power output: 2020 BMW F 750GS makes 77 hp @ 7500rpm with 83 Nm @ 6000rpm of torque - competitive figures for its class.
-
🔧
Fuel injection: The Electronic intake injection system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.
-
🛑
Strong front braking: The disc front brake gives excellent stopping power and responds well to aftermarket braided lines.
-
🛡️
ABS fitted: Anti-lock braking is standard, adding a real margin of safety on wet roads or in an emergency stop.
Considerations
-
⚙️
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.
Wear Points & Servicing Notes
Cooling system servicing
The Liquid cooled system on the F 750GS needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.
Fuelling & injector care
Fuelling comes from Electronic intake injection. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.
Valve clearance checks
Double Overhead Cams/Twin Cam (DOHC) valve actuation on the F 750GS means clearances should be checked at the manufacturer's specified interval - they can tighten as mileage accumulates, and a light top-end tick is usually the first sign.
Brake disc and pad wear
The disc front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.
Suspension condition on used examples
Up front, the F 750GS runs 41mm telescopic forks and Aluminum double-sided swing arm, directly mounted, preload and rebound damping adjustable at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.
Final drive maintenance
Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.
Frame & chassis check
The frame is Steel bridge frame in monocoque design, load-bearing engine - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.
Handling the weight at a standstill
At 224 kg, the F 750GS is a substantial machine - low-speed manoeuvring in car parks takes more physical effort than on a lighter bike, though the weight disappears once rolling.
F 750GS - Buying & Maintenance Guide
What to check before buying
When inspecting a used 2020 BMW F 750GS with its 853 cc enduro / off-road, start with the basics: check the service book for oil change frequency, inspect the drivetrain for wear, and look for oil seepage around the engine casings and rocker covers. This model runs chain final drive, so check chain slack and sprocket tooth profile specifically - a worn sprocket is a cheaper fix now than after it's chewed up the next chain. Now 6 years old, this enduro / off-road is as likely to show age-related wear (perished rubber, seized fasteners, degraded seals) as mileage-related wear. A cold start test is invaluable - a well-maintained F 750GS should fire up cleanly and settle to a smooth idle within a few seconds.
Oil and filter changes
Regular oil changes are the single most important maintenance task for the F 750GS's 853 cc twin, four-stroke. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. With a 12.7:1 compression ratio, running the octane grade specified in the manual matters more than on a lower-compression engine. Always use the correct viscosity grade as specified in the owner's manual.
Fuel system care
The F 750GS's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.
Valve clearance service
Check that valve clearances have been adjusted at the correct intervals on any used F 750GS. A bike with clearances out of spec doesn't always feel obviously wrong - but tight clearances accelerate valve seat wear. Ask for service documentation proving it's been done.
2020 BMW F 750GS - Frequently Asked Questions
What engine does the 2020 BMW F 750GS have?
The 2020 BMW F 750GS uses a Twin, four-stroke engine with 853 cc of displacement. It is liquid cooled.
What is the top speed of the 2020 BMW F 750GS?
The 2020 BMW F 750GS has a factory-quoted top speed of 190 km/h. Real-world speeds vary depending on rider weight, conditions and state of tune.
How much does the 2020 BMW F 750GS weigh?
The 2020 BMW F 750GS weighs 224 kg. This is the manufacturer's wet figure.
How much power does the 2020 BMW F 750GS make?
The 2020 BMW F 750GS produces 77 hp @ 7500rpm of power and 83 Nm @ 6000rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2020 BMW F 750GS?
The 2020 BMW F 750GS has a 15 L fuel tank. At around 5-6 litres per 100 km, that is roughly 250-300 km between stops.
Is the 2020 BMW F 750GS suitable for shorter riders?
The 2020 BMW F 750GS has a seat height of 815 mm. This is a moderate seat height that suits a wide range of rider heights.
What brakes does the 2020 BMW F 750GS have?
The 2020 BMW F 750GS uses 2 x 305mm discs, 2 piston calipers, ABS at the front and single 265mm disc,1 piston caliper, ABS at the rear.
What tyre sizes does the 2020 BMW F 750GS use?
The 2020 BMW F 750GS runs 110/80-19 front and 150/70-17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2020 BMW F 750GS have?
The 2020 BMW F 750GS is fitted with a Constant-Mesh 6 speed transmission.
BMW F 750GS Spec Evolution
The BMW F 750GS was produced across 6 model years (2018-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
| Wet Weight |
224 kg / 494 lbs |
224 kg / 494 lbs |
224 kg / 494 lbs |
227 kg / 500 lbs |
224.0 kg / 493.8 lbs |
224.0 kg / 493.8 lbs |
| Seat Height |
770-830 mm / 30.3-32.7 in |
815 mm / 32.1 in |
815 mm / 32.1 in |
815 mm / 32.1 in |
815 mm / 32.1 in. |
815 mm / 32.1 in. |
| Fuel Capacity |
15 Litres / 4.0 US gal |
15.0 L / 3.96 US gal |
15.0 L / 3.96 US gal |
15.0 L / 3.96 US gal |
15.00 litres / 3.96 US gallons |
15.00 litres / 3.96 US gallons |
| Comments |
Ride-By-Wire. Riding Modes Rain and Road. |
- |
2 Riding modes, rain or road. |
Automatic Stability Control. 2 Riding modes, rain or road. 12 V power socket. |
Automatic Stability Control. 2 Riding modes, rain or road. 12 V power socket. |
Automatic Stability Control. 2 Riding modes, rain or road. 12 V power socket. |
| Brakes - Front Diameter (in.) |
11.8 inches |
12.0 inches |
12.0 inches |
12.0 inches |
- |
- |
| Brakes - Front Diameter (mm) |
300 mm |
305 mm |
305 mm |
305 mm |
- |
- |
| Frame Type |
Steel bridge frame in monocoque design, load-bearing engine |
Steel bridge frame in monocoque design, load-bearing engine |
Steel bridge frame in monocoque design, load-bearing engine |
Steel bridge frame in monocoque design, load-bearing engine |
Tubular steel space frame, load bearing engine |
Tubular steel space frame, load bearing engine |
| Brakes - Front |
2 x 305mm discs, 2 piston calipers, ABS |
2 x 305mm discs, 2 piston calipers, ABS |
2 x 305mm discs, 2 piston calipers, ABS |
2 x 305mm discs, 2 piston floating calipers |
Double disc. ABS. Floating discs. Two-piston calipers. |
Double disc. ABS. Floating discs. Two-piston calipers. |
Key Specifications
Power
77 hp / 57.4 kW @ 7500rpm
Torque
83 Nm / 61.2 lb-ft @ 6000rpm
Top Speed
190.0 km/h / 118.1 mph
Fuel Capacity
15.0 L / 3.96 US gal
Advertisement
Full 2020 BMW F 750GS Specifications
Comments
2 Riding modes, rain or road.
Year
2020
Make
BMW
Model
F 750GS
Colours
Austin Yellow Metallic, Light White, Stereo Metallic Matte
Make Model
BMW F 750GS
Storage
Small luggage rack
Seat Height
815 mm / 32.1 in
Wheelbase
1559 mm / 61.4 in
Height
1225 mm / 48.2 in.
Length
2255 mm / 88.8 in
Width
922 mm / 36.3 in (incl. mirrors)
Dry Weight
199 kg / 439 lbs
Fuel Capacity
15.0 L / 3.96 US gal
Wet Weight
224 kg / 494 lbs
CO2
95.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Engine Type
Twin, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Stroke
77.0 mm
Displacement
853 cc / 52 ci-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electroinc intake pipe injection, digital engine management (BMS-K+)
Bore x Stroke
84 x 77mm
Compression Ratio
12.7:1
Cooling System
Liquid cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-4
Engine Lubrication
Dry sump
Fuel Consumption
4.10 litres/100 km (24.4 km/l or 57.37 mpg)
Fuel Induction
Electronic intake injection
Fuel Reserve
3.50 litres / 0.92 US gallons
Ignition
Knock control and oxygen sensors.
Starter
Electric
Valve System
4
Clutch
Multiplate wet clutch (anti-hopping), mechanically controlled
Final Drive
O-ring chain
Gearbox
6-speed
Primary Drive
Endless O-ring chain with shock damping in rear wheel hub
Transmission / Drive
Constant-Mesh 6 speed
Frame Type
Steel bridge frame in monocoque design, load-bearing engine
Suspension - Front
41mm telescopic forks
Suspension - Rear
Aluminum double-sided swing arm, directly mounted, preload and rebound damping adjustable (Dynamic ESA)
Rake
27.0°
Trail
105 mm / 4.1 in.
Wheel Travel - Front
151 mm / 5.1 in
Wheel Travel - Rear
177 mm / 7.0 in
Lighting system
LED headlamps
Brakes - Front Diameter (in.)
12.0 inches
Brakes - Front Diameter (mm)
305 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front
2 x 305mm discs, 2 piston calipers, ABS
Brakes - Rear
Single 265mm disc,1 piston caliper, ABS
ABS
BMW Motorrad ABS (Standard, disengageable)
Rims
Cast aluminium wheels
Tyres - Front
110/80-19
Tyres - Rear
150/70-17
Wheels
Cast aluminium
Wheels - Front
Cast aluminum 19 x 2.5 in
Wheels - Rear
Cast aluminum 17 x 4.25 in
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
