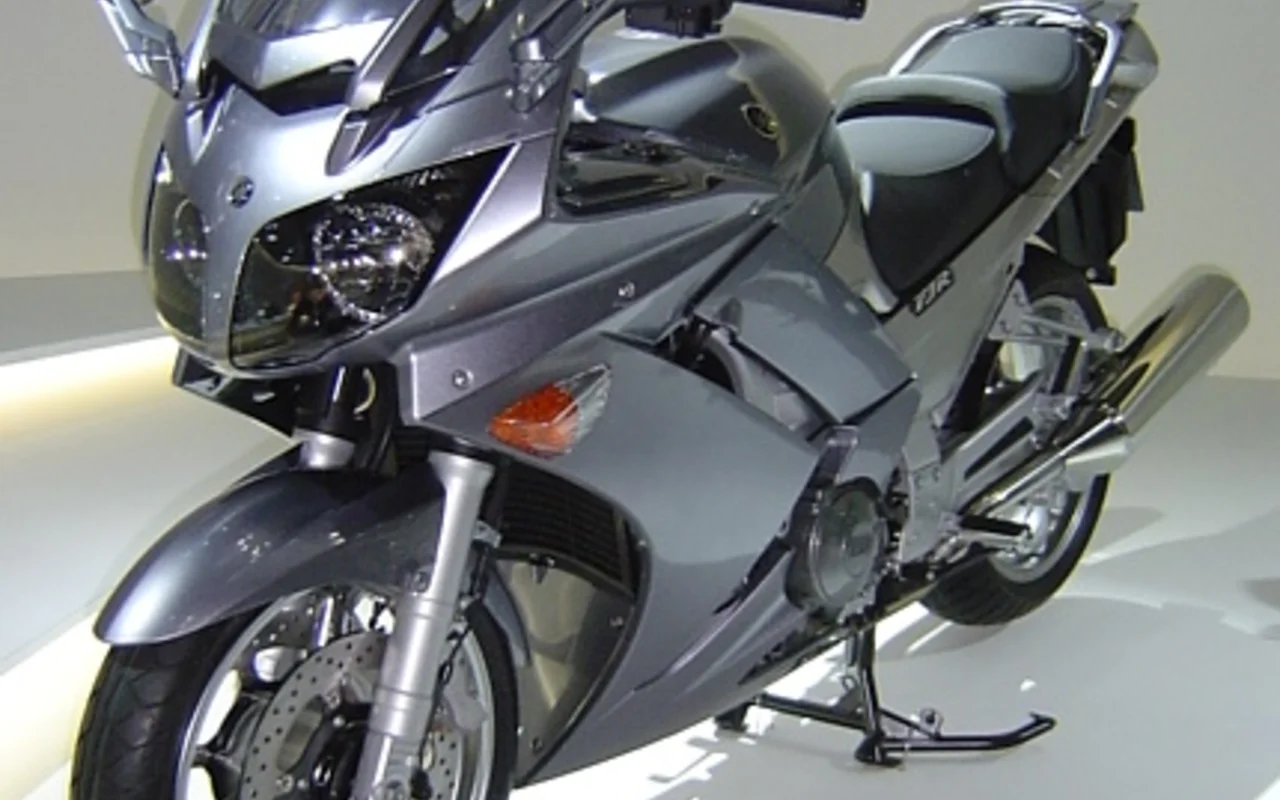

2005 Yamaha FJR 1300 Specifications

Name: 2005 Yamaha FJR 1300
Brand: Yamaha

Sport touring • Specs last verified 13 July 2026

No images available

Tap to enlarge

2005 Yamaha FJR 1300 Overview

Yamaha FJR 1300 is a sport touring motorcycle, displacing 1298 cc. Power comes from an In-line four engine running DOHC valve actuation, a compression ratio of 10.8:1. Bore and stroke come in at 79 x 66.2 mm. On the road, the 2005 FJR 1300 carries a 24.98-litre fuel tank, offers a seat height of 818 mm and spans a 1,539 mm wheelbase. The full 2005 Yamaha FJR 1300 spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2005 FJR 1300 - Pros & Cons

Strengths

Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
Large fuel range: A 24.98-litre tank means fewer stops on longer rides - a genuine plus for touring or a lengthy daily commute.
Low-maintenance final drive: Running Shaft drive (cardan) final drive cuts out the regular chain cleaning and tensioning that most bikes need.

Considerations

Age-related wear: Nothing specific stands out as a weak point on the FJR 1300 - the usual used-bike checks (service history, consumables, tyres) apply.

Wear Points & Servicing Notes

Fuelling & injector care

The fuel injection on the FJR 1300 needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Valve clearance checks

With DOHC valve gear, the FJR 1300 needs periodic clearance checks; caught early they're a cheap adjustment, left unchecked they accelerate valve seat wear.

Brake disc and pad wear

Braking up front comes from Double disc - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The FJR 1300's suspension runs 48mm Soqi telescopic fork w/adjustable preload, compression and rebound damping at the front. The rear uses Single shock, link-type, w/adjustable preload and rebound damping. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The FJR 1300 uses shaft final drive: essentially maintenance-free day to day, with periodic gear-oil changes the only real service item.

FJR 1300 - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2005 Yamaha FJR 1300, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy FJR 1300 should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects a FJR 1300's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the FJR 1300 needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

Valve clearance service

Valve clearances are easy to overlook on a used FJR 1300 since a bike out of spec doesn't always feel obviously wrong - but the wear it causes is real. Ask the seller for documentation before assuming it's been done.

2005 Yamaha FJR 1300 - Frequently Asked Questions

What engine does the 2005 Yamaha FJR 1300 have?

The 2005 Yamaha FJR 1300 uses an In-line four engine with 1298 cc of displacement.

How much does the 2005 Yamaha FJR 1300 weigh?

The 2005 Yamaha FJR 1300 weight is listed in the full spec table below.

What is the fuel tank capacity of the 2005 Yamaha FJR 1300?

The 2005 Yamaha FJR 1300 has a 24.98-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 416-499 km between stops.

Is the 2005 Yamaha FJR 1300 suitable for shorter riders?

The 2005 Yamaha FJR 1300 has a seat height of 818 mm. This is a moderate seat height that suits a wide range of rider heights.

What brakes does the 2005 Yamaha FJR 1300 have?

The 2005 Yamaha FJR 1300 uses Double disc at the front and Single disc at the rear.

What tyre sizes does the 2005 Yamaha FJR 1300 use?

The 2005 Yamaha FJR 1300 runs 120/70-ZR17 front and 180/55-ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What fuel system does the 2005 Yamaha FJR 1300 use?

The 2005 Yamaha FJR 1300 uses Injection, providing precise fuelling across the rev range and reliable cold-start behaviour.

Yamaha FJR 1300 Spec Evolution

The Yamaha FJR 1300 was produced across 5 model years (2001-2006). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2001	2002	2004	2005	2006
Dry Weight	237 kg / 522.5 lbs	237 kg / 522.5 lbs	244 kg / 537.9 lbs	-	268 kg / 590.8 lbs
Seat Height	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	818 mm / 32.2 in.	805 mm / 31.7 in.
Fuel Capacity	25.00 litres / 6.61 gallons	-	-	24.98 litres / 6.60 gallons	25.00 litres / 6.61 gallons
Ground Clearance (mm)	-	-	135 mm	1,000 mm	135 mm
Ground Clearance (in.)	-	-	5.3 inches	39.4 inches	5.3 inches
Brakes - Front Diameter (mm)	298 mm	298 mm	320 mm	320 mm	320 mm
Brakes - Front Diameter (in.)	11.7 inches	11.7 inches	12.6 inches	12.6 inches	12.6 inches
Wheelbase	-	1,515 mm / 59.6 in.	1,515 mm / 59.6 in.	1,539 mm / 60.6 in.	1,550 mm / 61.0 in.

Key Specifications

Engine

In-line four

Power

Not published by manufacturer

Torque

Not published by manufacturer

Top Speed

Not published by manufacturer

Weight

Not published by manufacturer

Fuel Capacity

24.98 litres / 6.60 gallons

Full 2005 Yamaha FJR 1300 Specifications

Colours Galaxy Blue

Ground Clearance (in.) 39.4 inches

Ground Clearance (mm) 1,000 mm

Seat Height 818 mm / 32.2 in.

Wheelbase 1,539 mm / 60.6 in.

Height 1,438 mm / 56.6 in.

Length 2,230 mm / 87.8 in.

Width 770 mm / 30.3 in.

Fuel Capacity 24.98 litres / 6.60 gallons

Bore x Stroke (in,) 3.1 x 2.6 inches

Bore x Stroke (mm) 79.0 x 66.2 mm

Displacement (cc) 1298.00 cc

Displacement (ci) 79.20 cubic inches

Engine Type In-line four

Fuel Control DOHC

Stroke 4

Fuel System Injection

Compression Ratio 10.8:1

Valve System 4

Final Drive Shaft drive (cardan)

Gearbox 5-speed

Suspension - Front 48mm Soqi telescopic fork w/adjustable preload, compression and rebound damping

Suspension - Rear Single shock, link-type, w/adjustable preload and rebound damping

Wheel Travel - Front 137 mm / 5.4 in.

Wheel Travel - Rear 122 mm / 4.8 in.

Brakes - Front Diameter (in.) 12.6 inches

Brakes - Front Diameter (mm) 320 mm

Brakes - Rear Diameter (in.) 11.1 inches

Brakes - Rear Diameter (mm) 282 mm

Brakes - Front Double disc

Brakes - Rear Single disc

Tyres - Front 120/70-ZR17

Tyres - Rear 180/55-ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
