Key Specifications
Engine
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Power
70.8 KW / 95 hp @ 9250 rpm
Torque
79 Nm / 8.1 kgf-m / 58 ft.lb @ 7850 rpm
Fuel Capacity
19 Litres / 5.0 US gal / 4.2 Imp gal

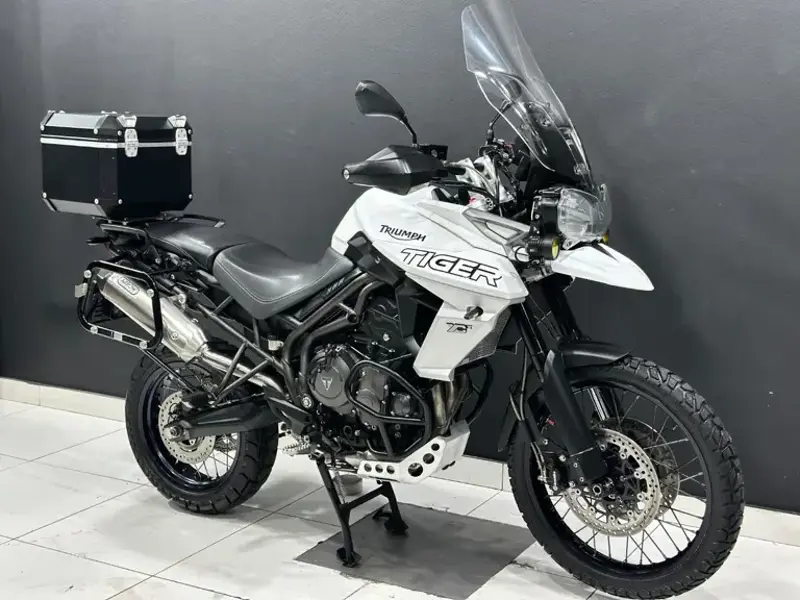

Full 2018 Triumph Tiger 800 XCx Specifications
Year
2017 - 18
Make Model
Triumph Tiger 800 XCx
Seat Height
840 mm - 860 mm / 33.1 in- 33.9 in adjustable
Wheelbase
1545 mm / 60.8 in
Height
1390 mm / 54.7 in (without mirrors)
Length
2215 mm / 87.1in
Width
845 mm / 33.3 in (with handlebars)
Dry Weight (kg)
215
Dry Weight
215 kg / 474 lbs
Fuel Capacity
19 Litres / 5.0 US gal / 4.2 Imp gal
Oil Capacity
3.7 L / 0.98 US gal
Displacement
799 cc / 48.7 cub in
Engine Detail
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Bore x Stroke
74 x 61.9 mm
Compression Ratio
11.3:1
Cooling System
Liquid cooled
Exhaust
Stainless Steel, 3 into 1, high-level stainless steel silencer
Fuel Induction
Multipoint sequential electronic fuel injection
Ignition
Digital CDI
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multi-plate
Final Drive
Chain, O-ring
Transmission / Drive
6 Speed
Frame Type
Tubular steel trellis frame, swingarm: twin-sided, cast aluminum alloy
Suspension - Front
WP 43mm upside down forks, adjustable rebound and compression
Suspension - Rear
WP monoshock with remote oil reservoir, hudraulically adjustable preload, rebound
Rake
24.3°
Trail
95.3 mm / 3.75 in
Wheel Travel - Front
220 mm / 8.7 in
Wheel Travel - Rear
215 mm / 8.5 in
Brakes - Front
2 x 308 mm floating discs, Nissin 2-piston sliding calipers, switchable ABS
Brakes - Rear
Single 255 mm disc, Nissin single-piston sliding caliper, Switchable ABS
Tyres - Front
90/90 R21
Tyres - Rear
150/70 R17
Wheels - Front
36-Spoke 21 x 2.5 in, aluminium rim
Wheels - Rear
32-Spoke 17 x 4.25 in, aluminium rim
