Key Specifications
Engine
In-line three, four-stroke
Power
69.1 kW / 93.9 hp @ 9300 rpm
Torque
79 Nm / 8.1 kgf-m / 58 ft.lb @ 7850 rpm
Top Speed
196.3 km/h / 122 mph
Weight
214.5 kg / 473 lbs
Fuel Capacity
18.9 Litres / 5.0 US gal / 4.2 Imp gal
Advertisement

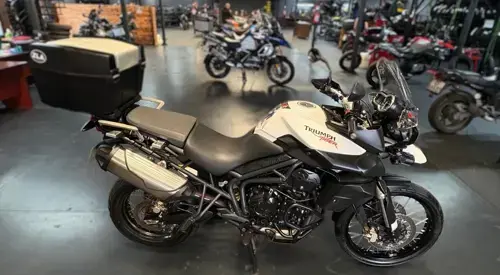

Full 2013 Triumph Tiger 800 XC Specifications
Comments
Windscreen
Year
2013
Colours
Black, white, blue
Make Model
Triumph Tiger 800 XC
Storage
Top box, saddle bags
Ground Clearance (mm)
160 mm
Ground Clearance (in.)
6.3 inches
Seat Height
810 mm -830 mm / 31.9"- 32.7" adjustable
Wheelbase
1530 mm / 60.2"
Height
1350 mm / 53.1"
Length
2215 mm / 87.1"
Width
795 mm / 31.3"
Oil Capacity (Quarts)
0.24 quarts
Oil Capacity (l)
3.70 litres
Dry Weight
112 kg / 246.9 lbs
Fuel Capacity
18.9 Litres / 5.0 US gal / 4.2 Imp gal
Wet Weight
214.5 kg / 473 lbs
Fuel Control
DOHC
Engine Type
In-line three, four-stroke
CO2
133.2 CO
Displacement
799 cc / 48.7 cu-in
Engine Detail
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Fuel System
Injection. Multipoint sequential electronic fuel injection
Bore x Stroke
74 x 61.9 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Exhaust
Stainless Steel, 3 into 1, high-level exhaust
Fuel Consumption
5.3 L/100 km / 18.8 km/l / 44.2 US mpg / 53 Imp mpg
Fuel Induction
Multipoint sequential electronic fuel injection
Ignition
Digital CDI
Lubrication
Wet sump
Starter
Electric
Valve System
4
Clutch
Wet, multi-plate
Final Drive
Chain
Gearbox
6-speed
Primary Drive
O ring chain
Transmission / Drive
6 Speed
Frame Type
Tubular steel trellis frame, twin-sided swingarm
Suspension - Front
Showa 45mm upside down forks
Suspension - Rear
Showa monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment
Rake
23.9°
Trail
92.4mm / 3.6"
Wheel Travel - Front
220 mm / 8.7"
Wheel Travel - Rear
215 mm / 8.5"
Instrumentation
LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, switchable ABS and clock
Brakes - Front Diameter (in.)
12.1 inches
Brakes - Front Diameter (mm)
308 mm
Brakes - Rear Diameter (in.)
10.0 inches
Brakes - Rear Diameter (mm)
255 mm
Brakes - Front
2 x 308mm floating discs, Nissin 2-piston floating caliber (Switchable ABS available), Nissin front brake master cylinder, 14mm diameter
Brakes - Rear
Single 255mm disc, Nissin single-piston floating caliber (Switchable ABS available)
Tyres - Front
90/90 ZR21
Tyres - Rear
150/70 ZR17
Wheels - Front
2.50 x 21" Cast aluminium rim, 36 spoke
Wheels - Rear
4.25 x 17" Cast aluminium rim, 32 spoke
