Key Specifications
Engine
Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder.
Power
79 kW / 106 hp @ 11850 rpm
Torque
68 Nm / 6.9 kgf-m / 50 ft/lb @ 9750 rpm
Fuel Capacity
17.4 Litres / 4.6 US gal / 3.8 Imp gal
Advertisement

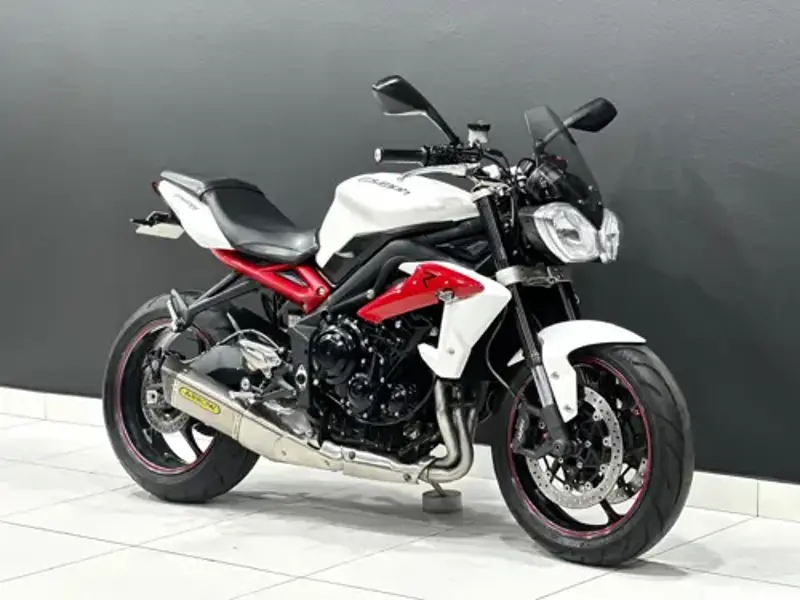

Full 2015 Triumph Street Triple R Specifications
Year
2015
Make Model
Triumph Street Triple R
Seat Height
820 mm / 32.3 in
Wheelbase
1410 mm / 55.5 in
Height
1110 mm / 43.7 in (without mirrors)
Length
2055 mm / 80.9 in
Width
740 mm / 29.1 in (handlebars)
Dry Weight
168 kg / 370 lbs
Fuel Capacity
17.4 Litres / 4.6 US gal / 3.8 Imp gal
Oil Capacity
3.4 Litres / 3.6 US qt / 3.0 Imp qt
Wet Weight
183 kg / 403 lbs
Displacement
675 cc / 41.2 cub in.
Engine Detail
Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder.
Bore x Stroke
74 x 52.3 mm
Cooling System
Liquid-cooled
Exhaust
Stainless steel 3 into 1 system low single sided stainless steel silencer
Fuel Induction
Multipoint sequential electronic fuel injection with SAI
Ignition
Digital - inductive type
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multi-plate
Final Drive
Chain
Transmission / Drive
6 Speed, close ratio
Frame Type
Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm Braced, twin-sided, cast aluminium alloy
Suspension - Front
Kayaba 41mm upside down forks with adjustable preload, rebound and compression damping
Suspension - Rear
Kayaba monoshock with piggy back reservoir adjustable for rebound and compression damping
Rake
23.4°
Trail
95 mm / 3.7 in
Wheel Travel - Front
115 mm / 4.5 in
Wheel Travel - Rear
135 mm / 5.3 in
Brakes - Front
2 x 310 mm floating discs, Nissen 4 piston radial calipers, ABS
Brakes - Rear
Single 220 mm disc, Brembo 1 piston caliper, ABS
Tyres - Front
120/70 ZR 17
Tyres - Rear
180/55 ZR 17
Wheels - Front
Cast aluminium alloy 5-spoke 17 x 3.5 in
Wheels - Rear
Cast aluminium alloy 5-spoke 17 x 5.5 in
