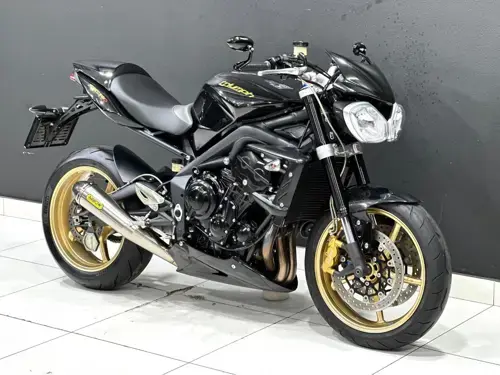

Triumph Street Triple R Specs

2012 - 2015 • 2 variants

The Triumph Street Triple R is a sport motorcycle produced from 2012 to 2015 across 2 variants. It is powered by a four stroke, in-line 3-cylinder, dohc, 12 valves. Peak power output is 107 hp. Peak torque is 69 Nm.

About the Triumph Street Triple R

Documented here are the full technical specifications for the Triumph Street Triple R, a Sport motorcycle with a production run from 2009 to 2023. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

AdSense - 728Ã90

Triumph Street Triple R by Year

2015 Triumph Street Triple R View specs →

2012 Triumph Street Triple R View specs →

Spec Evolution

How key specs changed across production years.

Specification	2009	2010	2012	2013	2014	2015	2016	2020	2022	2023
Displacement	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.2 cub in.	675 cc / 41.2 cub in.	765 cc / 46.6 cu-in ↑	765 cc / 46.6 cu-in	765 cc / 46.6 cu-in
Seat Height	805 mm / 31.7 in	805 mm / 31.7 in	805 mm / 31.7 in	805 mm / 31.7 in	805 mm / 31.7 in	820 mm / 32.3 in ↑	820 mm / 32.3 in	825 mm (780 mm LRH) / 32.4 in ↑	825 mm / 32.5 in	826 mm / 32.5 in ↑
Frame Type	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm Braced, twin-sided, cast aluminium alloy	Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm Braced, twin-sided, cast aluminium alloy	Front Aluminium beam twin spar. Rear 2 piece high pressure die cast	Front - Aluminum beam twin spar Rear - 2 piece high pressure die cast	Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe
Dry Weight	-	-	-	-	-	168 kg / 370 lbs	168 kg / 370 lbs	168 kg / 370.3 lbs	168 kg / 370.3 lbs	-
Engine Detail	Four stroke, in-line 3-cylinder, DOHC, 12 valves	Four stroke, in-line 3-cylinder, DOHC, 12 valves	Four stroke, in-line 3-cylinder, DOHC, 12 valves	Four stroke, in-line 3-cylinder, DOHC, 12 valves	Four stroke, in-line 3-cylinder, DOHC, 12 valves	Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder.	Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder.	Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder	Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder	Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder
Brakes - Front	2 x 308mm Floating discs, Nissin4 piston radial calipers	2 x 308mm Floating discs, Nissin4 piston radial calipers	2 x 308mm Floating discs, Nissin4 piston radial calipers	2 x 308mm Floating discs, Nissin4 piston radial calipers	2 x 308mm Floating discs, Nissin4 piston radial calipers	2 x 310 mm floating discs, Nissen 4 piston radial calipers, ABS	2 x 310 mm floating discs, Nissen 4 piston radial calipers, ABS	2 x 310 mm floating discs, Brembo M4.32 4-piston radial monobloc calipers, ABS	2 x 310mm floating discs, Brembo M50 4-piston radial monoblock calipers	2 x 310 mm floating discs, Brembo M4.32 4-piston radial monobloc calipers
Wheelbase	-	-	-	-	-	1410 mm / 55.5 in	1410 mm / 55.5 in	1405 mm / 55.3 in ↓	1405 mm / 55.3 in	1402 mm / 55.1 in ↓
Brakes - Rear	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, Brembo 1 piston caliper, ABS	Single 220 mm disc, Brembo 1 piston caliper, ABS	Single 220 mm disc, Brembo single piston caliper, ABS	Single 220mm disc, Brembo single-piston caliper	Single 220mm disc, Brembo single-piston caliper
Fuel Capacity	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal	15 Litres / 3.9 US gal ↓
Suspension - Front	41mm Kayaba upside down forks, with adjustable preload, rebound and compression damping,	41mm Kayaba upside down forks, with adjustable preload, rebound and compression damping,	41mm Kayaba upside down forks, with adjustable preload, rebound and compression damping,	41mm Kayaba upside down forks, with adjustable preload, rebound and compression damping,	41mm Kayaba upside down forks, with adjustable preload, rebound and compression damping,	Kayaba 41mm upside down forks with adjustable preload, rebound and compression damping	Kayaba 41mm upside down forks with adjustable preload, rebound and compression damping	Showa 41 mm upside down separate function big piston forks (SF-BPF), Adjustable compression damping, rebound damping and preload adjustment	Showa 41 mm upside down separate function big piston forks (SF-BPF), Adjustable compression damping and rebound damping.	Showa 41 mm upside down Separate Function Forks - Big Piston (SFF-BP), adjustable compression and rebound damping, and preload adjustment
Suspension - Rear	Kayaba monoshock with piggy back reservoir, adjustable for preload, rebound and compression damping,	Kayaba monoshock with piggy back reservoir, adjustable for preload, rebound and compression damping,	Kayaba monoshock with piggy back reservoir, adjustable for preload, rebound and compression damping,	Kayaba monoshock with piggy back reservoir, adjustable for preload, rebound and compression damping,	Kayaba monoshock with piggy back reservoir, adjustable for preload, rebound and compression damping,	Kayaba monoshock with piggy back reservoir adjustable for rebound and compression damping	Kayaba monoshock with piggy back reservoir adjustable for rebound and compression damping	Showa piggyback reservoir monoshock, Adjustable compression and rebound damping and preload adjustment	Showa piggyback reservoir monoshock, Adjustable compression and rebound damping	Showa piggyback reservoir monoshock, adjustable compression, rebound and preload adjustment
Clutch	Wet multiplate	Wet multiplate	Wet multiplate	Wet multiplate	Wet multiplate	Wet, multi-plate	Wet, multi-plate	Wet, multi-plate, slip-assisted	Wet, multi-plate, slip-assisted	Wet, multi-plate, slip-assisted
Bore x Stroke	74 x 52.3 mm	74 x 52.3 mm	74 x 52.3 mm	74 x 52.3 mm	74 x 52.3 mm	74 x 52.3 mm	74 x 52.3 mm	78 x 53.4 mm ↑	78 x 53.4 mm	78 x 53.4 mm
Final Drive	O-ring chain	O-ring chain	O-ring chain	O-ring chain	O-ring chain	Chain	Chain	X ring chain	X ring chain	X ring chain
Height	without mirrors 1110mm / 43.7 in	without mirrors 1110mm / 43.7 in	without mirrors 1110mm / 43.7 in	without mirrors 1110mm / 43.7 in	without mirrors 1110mm / 43.7 in	1110 mm / 43.7 in (without mirrors)	1110 mm / 43.7 in (without mirrors)	1065 mm (1045 mm LRH) / 41.9 in (41.1 in LRH) - without mirrors ↓	1085 mm / 42.7 in - without mirrors ↑	1047 mm / 41.2 in ↓
Length	2030 mm / 79.9 in	2030 mm / 79.9 in	2030 mm / 79.9 in	2030 mm / 79.9 in	2030 mm / 79.9 in	2055 mm / 80.9 in ↑	2055 mm / 80.9 in	2055 mm / 80.9 in	1085 mm / 42.7 in - without mirrors ↓	2055 mm / 80.9 in ↑
Wet Weight	189 kg / 416 lbs	189 kg / 416 lbs	189 kg / 416 lbs	189 kg / 416 lbs	189 kg / 416 lbs	183 kg / 403 lbs ↓	183 kg / 403 lbs	-	-	189 kg / 416.6 lbs
Compression Ratio	12.65:1	12.65:1	12.65:1	12.65:1	12.65:1	-	-	12.5:1	12.54:1 ↑	13.25:1 ↑
Tyres - Front	120/80 ZR17	120/80 ZR17	120/80 ZR17	120/80 ZR17	120/80 ZR17	120/70 ZR 17	120/70 ZR 17	120/70 ZR17	120/70 ZR17	120/70 ZR17
Width	(handlebars) 755 mm / 29.7 in	(handlebars) 755 mm / 29.7 in	(handlebars) 755 mm / 29.7 in	(handlebars) 755 mm / 29.7 in	(handlebars) 755 mm / 29.7 in	740 mm / 29.1 in (handlebars) ↓	740 mm / 29.1 in (handlebars)	775 mm / 30.5 in - with handlebars ↑	775 mm / 30.5 in - with handlebars	792 mm / 31.1 in ↑
Tyres - Rear	180/55 ZR17	180/55 ZR17	180/55 ZR17	180/55 ZR17	180/55 ZR17	180/55 ZR 17	180/55 ZR 17	180/55 ZR17	180/55 ZR17	180/55 ZR17
Rake	23.9°	23.9°	23.9°	23.4° ↓	23.4°	23.4°	23.4°	23.5° (24.5° LRH) ↑	23.9° ↑	23.7° ↓
Wheels - Front	Cast aluminium alloy 5-spoke 17 x 3.5in	Cast aluminium alloy 5-spoke 17 x 3.5in	Cast aluminium alloy 5-spoke 17 x 3.5in	Cast aluminium alloy 5-spoke 17 x 3.5in	Cast aluminium alloy 5-spoke 17 x 3.5in	Cast aluminium alloy 5-spoke 17 x 3.5 in	Cast aluminium alloy 5-spoke 17 x 3.5 in	Cast aluminium alloy 5-spoke 17 x 3.5 in	3.5 x 17 ↓	3.5 x 17
Exhaust	-	-	-	-	-	Stainless steel 3 into 1 system low single sided stainless steel silencer	Stainless steel 3 into 1 system low single sided stainless steel silencer	Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer	Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer	Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Wheels - Rear	Cast aluminium alloy 5-spoke 17 x 5.5in	Cast aluminium alloy 5-spoke 17 x 5.5in	Cast aluminium alloy 5-spoke 17 x 5.5in	Cast aluminium alloy 5-spoke 17 x 5.5in	Cast aluminium alloy 5-spoke 17 x 5.5in	Cast aluminium alloy 5-spoke 17 x 5.5 in	Cast aluminium alloy 5-spoke 17 x 5.5 in	Cast aluminium alloy 5-spoke 17 x 5.5 in	5.5 x 17 ↑	5.5 x 17
Transmission / Drive	6 Speed	6 Speed	6 Speed	6 Speed	6 Speed	6 Speed, close ratio	6 Speed, close ratio	6-speed with Triumph Shift Assist	6 Speed with Triumph Shift Assist	6 Speed with Triumph Shift Assist
Fuel Induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with SAI	Multipoint sequential electronic fuel injection with SAI	Multipoint sequential electronic fuel injection with SAI. Electronic throttle control	Multipoint sequential electronic fuel injection with SAI. Electronic throttle control	Multipoint sequential electronic fuel injection with electronic throttle control
Swingarm	-	-	-	-	-	-	-	Twin-sided, cast aluminium alloy	Twin-sided, cast aluminum alloy	Twin-sided, cast aluminum alloy
Trail	95 mm / 3.7 in	95 mm / 3.7 in	95 mm / 3.7 in	95 mm / 3.7 in	95 mm / 3.7 in	95 mm / 3.7 in	95 mm / 3.7 in	98.3 mm (102.7 mm LRH) / ↑	100 mm / 3.9 in ↑	97.8 mm / 3.8 in ↓
Max Power	79 kW / 107 hp @ 11700 rpm	79 kW / 107 hp @ 11700 rpm	79 kW / 107 hp @ 11700 rpm	79 kW / 107 hp @ 11700 rpm	79 kW / 107 hp @ 11700 rpm	79 kW / 106 hp @ 11850 rpm	79 kW / 106 hp @ 11850 rpm	116 hp / 118 PS / 87 kW @ 12,000 rpm ↑	121.3 hp / 90 kW @ 11750 rpm ↑	118.4 hp / 88.3 kW @ 11500 rpm ↓
Wheel Travel - Front	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	115 mm / 4.5 in ↓	115 mm / 4.5 in	115 mm / 4.5 in	115 mm / 4.5 in	115 mm / 4.5 in
Wheel Travel - Rear	126 mm / 5.0 in	126 mm / 5.0 in	126 mm / 5.0 in	126 mm / 5.0 in	126 mm / 5.0 in	135 mm / 5.3 in ↑	135 mm / 5.3 in	131 mm / 5.1 in ↓	131 mm / 5.2 in	133 mm / 5.2 in ↑
Max Torque	69 Nm / 7.0 kgf-m / 51 ft-lb @ 9100 rpm	69 Nm / 7.0 kgf-m / 51 ft-lb @ 9100 rpm	69 Nm / 7.0 kgf-m / 51 ft-lb @ 9100 rpm	69 Nm / 7.0 kgf-m / 51 ft-lb @ 9100 rpm	69 Nm / 7.0 kgf-m / 51 ft-lb @ 9100 rpm	68 Nm / 6.9 kgf-m / 50 ft/lb @ 9750 rpm ↓	68 Nm / 6.9 kgf-m / 50 ft/lb @ 9750 rpm	56.8 lb-ft / 77 Nm @ 9,400 rpm ↓	79 Nm / 58.3 lb-ft @ 9350 rpm ↑	80 Nm / 59 lb-ft @ 9500 rpm ↑
