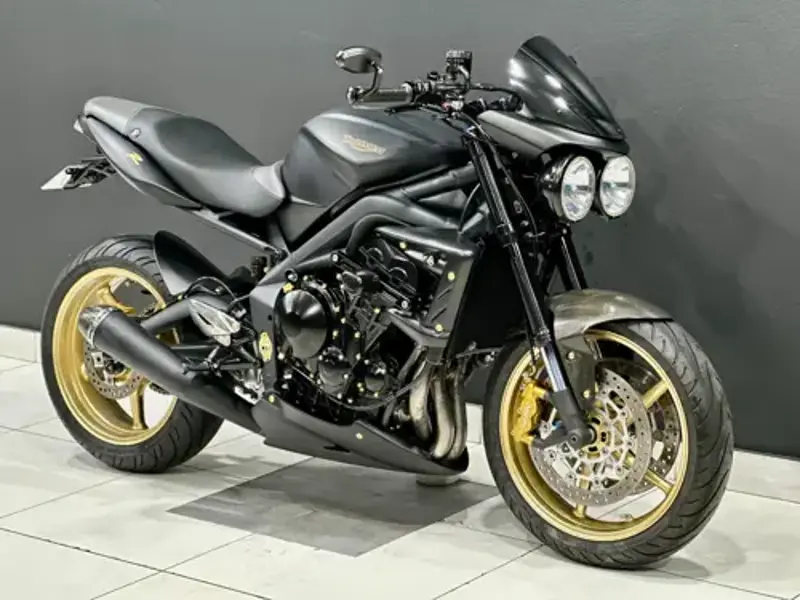

Triumph Street Triple 675 Specs

2009 - 2014 • 3 variants

The Triumph Street Triple 675 is a sport motorcycle produced from 2009 to 2014 across 3 variants. It is powered by a four stroke, in-line 3-cylinder, dohc, 12 valve. Peak power output is 105 hp. Peak torque is 68 Nm.

About the Triumph Street Triple 675

Documented here are the full technical specifications for the Triumph Street Triple 675, a Sport motorcycle with a production run from 2007 to 2015. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

AdSense - 728Ã90

Triumph Street Triple 675 by Year

2014 Triumph Street Triple 675 View specs →

2010 Triumph Street Triple 675 View specs →

2009 Triumph Street Triple 675 View specs →

Spec Evolution

How key specs changed across production years.

Specification	2007	2008	2009	2010	2011	2012	2014	2015
Frame Type	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar	Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm, twin-sided, cast aluminium alloy
Dry Weight	167 kg / 368 lbs	167 kg / 368 lbs	167 kg / 368 lbs	167 kg / 368 lbs	167 kg / 368 lbs	167 kg / 368 lbs	167 kg / 368 lbs	168 kg / 370 lbs ↑
Displacement	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.19 cu-in	675 cc / 41.2 cub in.
Brakes - Front	2 x 308 mm Discs, Nissin 2 piston sliding calipers	2 x 308 mm Discs, Nissin 2 piston sliding calipers	2 x 308 mm Discs, Nissin 2 piston sliding calipers	2 x 308 mm Discs, Nissin 2 piston sliding calipers	2 x 308 mm Discs, Nissin 2 piston sliding calipers	2 x 308 mm Discs, Nissin 2 piston sliding calipers	2 x 308 mm Discs, Nissin 2 piston sliding calipers	2 x 310 mm Floating discs, Nissen 2 piston sliding calipers,ABS
Engine Detail	Four stroke, in-line 3-cylinder, DOHC, 12 valve	Four stroke, in-line 3-cylinder, DOHC, 12 valve	Four stroke, in-line 3-cylinder, DOHC, 12 valve	Four stroke, in-line 3-cylinder, DOHC, 12 valve	Four stroke, in-line 3-cylinder, DOHC, 12 valve	Four stroke, in-line 3-cylinder, DOHC, 12 valve	Four stroke, in-line 3-cylinder, DOHC, 12 valve	Liquid-cooled, four stroke, in-line 3-cylinder, DOHC, 12 valves
Brakes - Rear	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, 1 piston caliper	Single 220 mm disc, Brembo 1 piston caliper, ABS
Top Speed	223 km/h / 139 mph	223 km/h / 139 mph	223 km/h / 139 mph	223 km/h / 139 mph	223 km/h / 139 mph	223 km/h / 139 mph	223 km/h / 139 mph	223.1 km/h / 138.6 mph ↑
Final Drive	O ring chain	O ring chain	O ring chain	O ring chain	O ring chain	O ring chain	O ring chain	O ring, chain
Height	(without mirrors) 1060 mm / 41.7 in	(without mirrors) 1060 mm / 41.7 in	(without mirrors) 1060 mm / 41.7 in	(without mirrors) 1060 mm / 41.7 in	(without mirrors) 1060 mm / 41.7 in	(without mirrors) 1060 mm / 41.7 in	(without mirrors) 1060 mm / 41.7 in	1060mm / 41.7in (without mirrors)
Length	2055 mm / 80.8 in	2055 mm / 80.8 in	2055 mm / 80.8 in	2055 mm / 80.8 in	2055 mm / 80.8 in	2055 mm / 80.8 in	2055 mm / 80.8 in	2055 mm / 80.8in
Wet Weight	182 kg / 400 lbs	182 kg / 400 lbs	182 kg / 400 lbs	182 kg / 400 lbs	182 kg / 400 lbs	182 kg / 400 lbs	182 kg / 400 lbs	188 kg / 414 lbs ↑
Width	(handlebars) 740 mm / 29.1 in	(handlebars) 710 mm / 27.9 in ↓	(handlebars) 740 mm / 29.1 in ↑	(handlebars) 740 mm / 29.1 in	(handlebars) 740 mm / 29.1 in	(handlebars) 740 mm / 29.1 in	(handlebars) 740 mm / 29.1 in	740 mm / 29.1in (handle bard)
Rake	24.3°	24.3°	24.3°	24.3°	24.3°	24.1° ↓	24.1°	24.1°
Fuel Induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with forced air induction	Multipoint sequential electronic fuel injection with SAI
Trail	95.3 mm / 3.75 in	95.3 mm / 3.75 in	95.3 mm / 3.75 in	95.3 mm / 3.75 in	95.3 mm / 3.75 in	95.3 mm / 3.75 in	99.3 mm / 3.9 in ↑	99.6 mm / 3.92 in ↑
Wheel Travel - Front	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	120 mm / 4.7 in	110 mm / 4.3 in ↓
Max Power	78 kW / 105 hp @ 11850rpm	78 kW / 105 hp @ 11850rpm	78 kW / 105 hp @ 11850rpm	78 kW / 105 hp @ 11850rpm	78 kW / 105 hp @ 11850rpm	78 kW / 105 hp @ 11850rpm	78 kW / 105 hp @ 11850rpm	78 kW / 106 hp @ 11850 rpm
Wheel Travel - Rear	126 mm / 5.0 in	126 mm / 5.0 in	126 mm / 5.0 in	126 mm / 5.0 in	126 mm / 5.0 in	126 mm / 5.0 in	126 mm / 5.0 in	124.5 mm / 4.9 in ↓
Max Torque	68 Nm / 6.9 kgf-m / 50ft.lbs @ 9750rpm	68 Nm / 6.9 kgf-m / 50ft.lbs @ 9750rpm	68 Nm / 6.9 kgf-m / 50ft.lbs @ 9750rpm	68 Nm / 6.9 kgf-m / 50ft.lbs @ 9750rpm	68 Nm / 6.9 kgf-m / 50ft.lbs @ 9750rpm	68 Nm / 6.9 kgf-m / 50ft.lbs @ 9750rpm	68 Nm / 6.9 kgf-m / 50ft.lbs @ 9750rpm	68 Nm / 6.9 kgf-m / 50 ft/lb @ 9750 rpm
