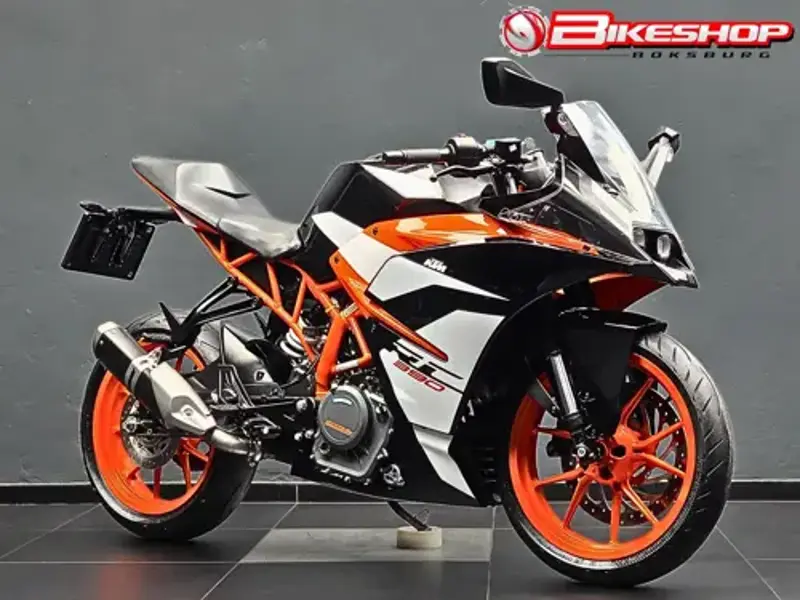

2017 KTM RC 390 Specifications

Name: 2017 KTM RC 390
Brand: KTM

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2017 KTM RC 390 Overview

KTM RC 390 is a sport motorcycle, displacing 373 cc. Power comes from a Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder engine, a compression ratio of 12.6:1. On the performance side, it delivers 32 kW @ 9500 rpm of peak power and 35.3 Nm of torque. On the road, the 2017 RC 390 tips the scales at 149 kg, carries a 10-litre fuel tank, offers a seat height of 820 mm and spans a 1340 mm wheelbase. That's roughly 53.7 kg lighter than the average sport motorcycle in our database. The full 2017 KTM RC 390 spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2017 RC 390 - Pros & Cons

Strengths

Strong power output: With 32 kW @ 9500 rpm and 35.3 Nm of torque on tap, the RC 390 is no slouch for its class.
Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.

Considerations

Tall seat height: At 820 mm, shorter riders will likely be on tiptoes at a standstill - worth sitting on one before you buy.
Modest fuel capacity: Range between stops is limited by the 10-litre tank - plan fuel stops accordingly on longer routes.
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.

Wear Points & Servicing Notes

Cooling system servicing

RC 390's Liquid Cooled setup is low-maintenance provided the coolant interval is kept - old, acidic coolant is the main cause of long-term corrosion in the water passages.

Fuelling & injector care

The Bosch Injection on the RC 390 needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Brake disc and pad wear

Braking up front comes from Single 320 mm disc 4 piston radial caliper - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The RC 390's suspension runs WP Suspension Up Side Down at the front. The rear uses WP Monoshock. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The RC 390 uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.

Frame & chassis check

Built around a Tubular space frame made from steel, powder-coated, the RC 390's chassis is straightforward to inspect: look for corrosion, cracks or repair welds around stress points like the head-stock and swingarm mounts.

RC 390 - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2017 KTM RC 390, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy RC 390 should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects a RC 390's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the RC 390 needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

2017 KTM RC 390 - Frequently Asked Questions

What engine does the 2017 KTM RC 390 have?

The 2017 KTM RC 390 uses a Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder engine with 373 cc of displacement. It is liquid cooled.

How much does the 2017 KTM RC 390 weigh?

The 2017 KTM RC 390 weighs 149 kg. This is the manufacturer's dry figure.

How much power does the 2017 KTM RC 390 make?

The 2017 KTM RC 390 produces 32 kW @ 9500 rpm of power and 35.3 Nm of torque. These are peak figures.

What is the fuel tank capacity of the 2017 KTM RC 390?

The 2017 KTM RC 390 has a 10-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 166-200 km between stops.

Is the 2017 KTM RC 390 suitable for shorter riders?

The 2017 KTM RC 390 has a seat height of 820 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2017 KTM RC 390 have?

The 2017 KTM RC 390 uses Single 320 mm disc 4 piston radial caliper at the front and Single 230 mm disc 1 piston caliper at the rear.

What tyre sizes does the 2017 KTM RC 390 use?

The 2017 KTM RC 390 runs 110/70 R17 front and 150/60 R17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2017 KTM RC 390 have?

The 2017 KTM RC 390 is fitted with a 6 Speed transmission.

KTM RC 390 Spec Evolution

The KTM RC 390 was produced across 8 model years (2014-2022). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2014	2015	2016	2017	2018	2019	2020	2022
Dry Weight	139 kg / 306.4 lbs	139 kg / 306.4 lbs	139 kg / 306.4 lbs	149 kg / 328.5 lbs	149 kg / 328.5 lbs	149 kg / 328.5 lbs	149 kg / 328.5 lbs	155 kg / 341.7 lbs
Engine Detail	Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder	Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder	Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder	Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder	Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder	Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder	Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder	Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder
Seat Height	820 mm / 32.2 in	820 mm / 32.2 in	820 mm / 32.2 in	820 mm / 32.2 in	820 mm / 32.2 in	820 mm / 32.2 in	820 mm / 32.2 in	824 mm / 32.4 in
Fuel Capacity	10 Liters / 2.64 US gal	10 Liters / 2.64 US gal	10 Liters / 2.64 US gal	10 Liters / 2.64 US gal	10 Liters / 2.64 US gal	10 Liters / 2.64 US gal	10 Liters / 2.64 US gal	13.7 Liters / 3.6 US gal
Frame Type	Tubular space frame made from steel, powder-coated	Tubular space frame made from steel, powder-coated	Tubular space frame made from steel, powder-coated	Tubular space frame made from steel, powder-coated	Tubular space frame made from steel, powder-coated	Tubular space frame made from steel, powder-coated	Tubular space frame made from steel, powder-coated	Steel trellis frame, powder coated and bolt-on subframe
Brakes - Front	Single 300 mm disc 4 piston radial caliper	Single 300 mm disc 4 piston radial caliper	Single 300 mm disc 4 piston radial caliper	Single 320 mm disc 4 piston radial caliper	Single 320 mm disc 4 piston radial caliper	Single 320 mm disc 4 piston radial caliper	Single 320 mm disc 4 piston radial caliper	Single 320 mm disc 4 piston radial fixed ByBre calliper
Brakes - Rear	Single 230 mm disc 1 piston caliper	Single 230 mm disc 1 piston caliper	Single 230 mm disc 1 piston caliper	Single 230 mm disc 1 piston caliper	Single 230 mm disc 1 piston caliper	Single 230 mm disc 1 piston caliper	Single 230 mm disc 1 piston caliper	Single 230 mm disc 1 piston floating ByBre calliper
Ground Clearance	179 mm / 7.0 in	179 mm / 7.0 in	179 mm / 7.0 in	179 mm / 7.0 in	179 mm / 7.0 in	179 mm / 7.0 in	179 mm / 7.0 in	158 mm / 6.2 in

Key Specifications

Engine

Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder

Power

32 kW / 43 hp @ 9500 rpm

Torque

35.3 Nm / 26 lb-ft @7250 rpm

Top Speed

Not published by manufacturer

Weight

149 kg / 328.5 lbs

Fuel Capacity

10 Liters / 2.64 US gal

Full 2017 KTM RC 390 Specifications

Year 2017

Make Model KTM RC 390

Seat Height 820 mm / 32.2 in

Wheelbase 1340 mm / 52.7 in

Ground Clearance 179 mm / 7.0 in

Height 1267 mm / 49.9 in

Length 2002 mm / 78.8 in

Width 873 mm / 34.4 in

Dry Weight 149 kg / 328.5 lbs

Fuel Capacity 10 Liters / 2.64 US gal

Max Power 32 kW / 43 hp @ 9500 rpm

Max Torque 35.3 Nm / 26 lb-ft @7250 rpm

Displacement 373 cc / 22.7 cu-in

Engine Detail Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder

Bore x Stroke 89 x 60 mm

Compression Ratio 12.6:1

Cooling System Liquid Cooled

Engine Management Bosch EMS with RBW

Fuel Induction Bosch Injection

Lubrication Forced oil lubrication with 2 Eaton pumps

Starter Electric

Clutch Wet multi-disc clutch / mechanically operated

Final Drive Chain 5/8 x 1/4" X‑Ring

Transmission / Drive 6 Speed

Frame Type Tubular space frame made from steel, powder-coated

Suspension - Front WP Suspension Up Side Down

Suspension - Rear WP Monoshock

Steering Head Angle 65 °

Trail 100mm / 3.9 in

Wheel Travel - Front 120 mm / 4.7 in

Wheel Travel - Rear 150 mm / 5.9 in

Brakes - Front Single 320 mm disc 4 piston radial caliper

Brakes - Rear Single 230 mm disc 1 piston caliper

Tyres - Front 110/70 R17

Tyres - Rear 150/60 R17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
