Key Specifications
Engine
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Power
118 kW / 160 hp @ 8750 rpm
Torque
140 Nm / 103.7 lb-ft @ 6750rpm
Weight
217 kg / 478.4 lbs
Fuel Capacity
23 Litres / 6 US gal

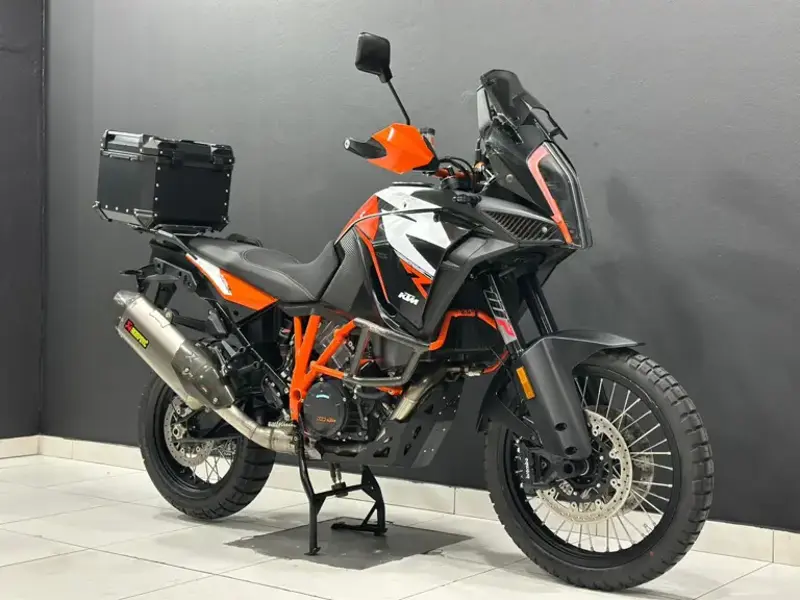

Full 2020 KTM 1290 Super Adventure R Specifications
Year
2019 - 20
Make Model
KTM 1290 Super Adventure R
Seat Height
890 mm / 35 in
Wheelbase
1580±15 mm / 62.2 in
Ground Clearance
250 mm / 9.8 in
Dry Weight (kg)
217
Dry Weight
217 kg / 478.4 lbs
Fuel Capacity
23 Litres / 6 US gal
Displacement
1301 cc / 79.3 cu-in
Engine Detail
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
108 x 71 mm
Compression Ratio
13.1:1
Cooling System
Liquid cooling system, continuous circulation of cooling liquid with water pump
Engine Management
Keihin EMS with RBW and cruise control, double ignition
Fuel Induction
2x Keihin EFI w/ 52mm throttle bodies
Ignition
System contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Forced oil lubrication with 3 oil pumps
Starter
Eletric
Valve Inspection Interval
18,600 miles
Battery Capacity
Battery: 12V 11.2AH
Clutch
PASC anti-hopping clutch/ hydraulically operated
Final Drive
Chain 5/8 x 5/16" X Ring
Primary Drive Ratios
40:76
Transmission / Drive
6-speed
Frame Type
Tubular space frame made from chrome molybdenum steel, powder-coated
Suspension - Front
48 mm WP fully adjustable USD forks
Suspension - Rear
WP-PDS Monoshock fully adjustable
Steering Head Angle
64°
Wheel Travel - Front
220 mm / 8.6 in
Wheel Travel - Rear
220 mm / 8.6 in
Charging System
450 watts max.
Brakes - Front
2 x 320 mm floating disc, Brembo four-piston brake calipers
Brakes - Rear
Single 267 mm disc, Brembo two-piston brake caliper
ABS
Bosch 9ME combined ABS, incl. cornering ABS and offroad mode, disengageable
Tyres - Front
90/90-21
Tyres - Rear
150/70-ZR18
Wheels - Front
Spoked aluminum
Wheels - Rear
Spoked aluminum
