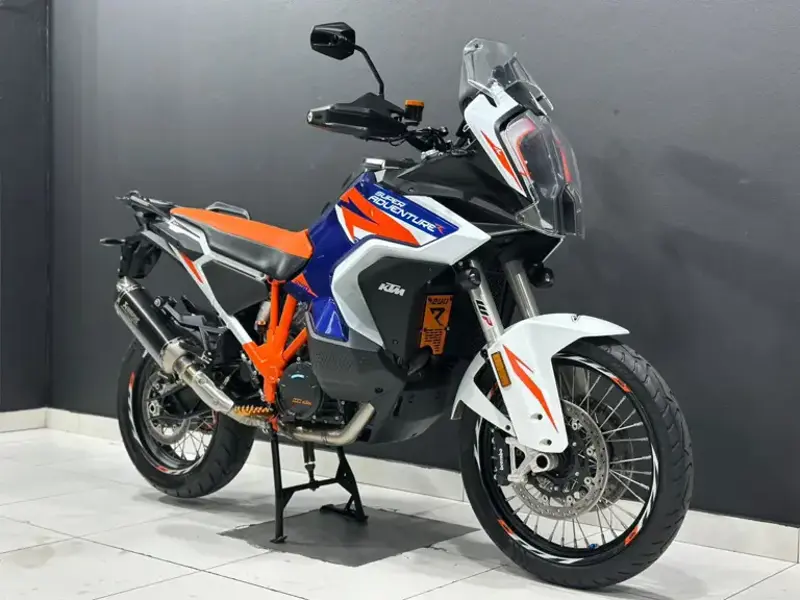

2022 KTM 1290 Super Adventure R Specifications

Name: 2022 KTM 1290 Super Adventure R
Brand: KTM

No images available

Tap to enlarge

2022 KTM 1290 Super Adventure R Overview

The 2022 KTM 1290 Super Adventure R is an enduro / off-road motorcycle built around 1301 cc of displacement. Under the tank sits a Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder engine, a compression ratio of 13.1:1. 2022 KTM 1290 Super Adventure R delivers 118 kW @ 9000 rpm of peak power and 138 Nm @ 6500 rpm of torque. From a practical standpoint, the 2022 1290 Super Adventure R tips the scales at 221 kg, carries a 23-litre fuel tank, offers a seat height of 880 mm and spans a 1557±15 mm wheelbase. Scroll down for the complete 2022 KTM 1290 Super Adventure R spec sheet covering every technical detail from suspension travel to tyre sizes.

2022 1290 Super Adventure R - Pros & Cons

Strengths

Strong power output: 2022 KTM 1290 Super Adventure R makes 118 kW @ 9000 rpm with 138 Nm @ 6500 rpm of torque - competitive figures for its class.
Large fuel range: The 23-litre tank is generously sized, translating to extended range between stops - ideal for touring or longer commutes.

Considerations

Tall seat height: The 880 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.

Owner Experiences & Common Issues

Low-speed confidence

At 221 kg, the 1290 Super Adventure R is a substantial machine. New owners occasionally mention that slow-speed manoeuvring in car parks takes a little getting used to. Once moving, the weight disappears - but practising slow-speed exercises builds confidence quickly.

1290 Super Adventure R - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2022 KTM 1290 Super Adventure R, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained 1290 Super Adventure R should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any 1290 Super Adventure R. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

2022 KTM 1290 Super Adventure R - Frequently Asked Questions

What engine does the 2022 KTM 1290 Super Adventure R have?

The 2022 KTM 1290 Super Adventure R uses a Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder engine with 1301 cc of displacement. It is liquid cooling system, continuous circulation of cooling liquid with water pump.

How much does the 2022 KTM 1290 Super Adventure R weigh?

The 2022 KTM 1290 Super Adventure R weighs 221 kg. This is the manufacturer's dry figure.

How much power does the 2022 KTM 1290 Super Adventure R make?

The 2022 KTM 1290 Super Adventure R produces 118 kW @ 9000 rpm of power and 138 Nm @ 6500 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2022 KTM 1290 Super Adventure R?

The 2022 KTM 1290 Super Adventure R has a 23-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 383-460 km between stops.

Is the 2022 KTM 1290 Super Adventure R suitable for shorter riders?

The 2022 KTM 1290 Super Adventure R has a seat height of 880 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2022 KTM 1290 Super Adventure R have?

The 2022 KTM 1290 Super Adventure R uses 2 x 320 mm disc Brembo four-piston, radially mounted caliper at the front and Single 267 mm disc, Brembo two-piston, fixed caliper at the rear.

What tyre sizes does the 2022 KTM 1290 Super Adventure R use?

The 2022 KTM 1290 Super Adventure R runs 90/90 21 front and 150/70 ZR 18 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2022 KTM 1290 Super Adventure R have?

The 2022 KTM 1290 Super Adventure R is fitted with a 6-speed transmission.

KTM 1290 Super Adventure R Spec Evolution

The KTM 1290 Super Adventure R was produced across 4 model years (2018-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2018	2020	2022	2023
Max Power	118 kW / 160 hp @ 8750 rpm	118 kW / 160 hp @ 8750 rpm	118 kW / 160 hp @ 9000 rpm	118 kW / 160 hp @ 9000 rpm
Dry Weight	217 kg / 478.4 lbs	217 kg / 478.4 lbs	221 kg / 487 lbs	221 kg / 487 lbs
Engine Detail	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder
Seat Height	890 mm / 35 in	890 mm / 35 in	880 mm / 34.6 in	880 mm / 34.6 in
Frame Type	Tubular space frame made from chrome molybdenum steel, powder-coated	Tubular space frame made from chrome molybdenum steel, powder-coated	Chromium-Molybdenum-Steel trellis frame, powder coated, aluminium powder coated sub-frame	Chromium-Molybdenum-Steel trellis frame, powder coated, aluminium powder coated sub-frame
Brakes - Front	2 x 320 mm floating disc, Brembo four-piston brake calipers	2 x 320 mm floating disc, Brembo four-piston brake calipers	2 x 320 mm disc Brembo four-piston, radially mounted caliper	2 x 320 mm disc Brembo four-piston, radially mounted caliper
Wheelbase	1580±15 mm / 62.2 in	1580±15 mm / 62.2 in	1557±15 mm / 61.2 in	1557±15 mm / 61.2 in
Ground Clearance	250 mm / 9.8 in	250 mm / 9.8 in	242 mm / 9.5 in	242 mm / 9.5 in

Key Specifications

Engine

Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder

Power

118 kW / 160 hp @ 9000 rpm

Torque

138 Nm / 101.7 lb-ft @ 6500 rpm

Top Speed

N/A

Weight

221 kg / 487 lbs

Fuel Capacity

23 Litres / 6 US gal

Full 2022 KTM 1290 Super Adventure R Specifications

Year 2021 - 22

Make Model KTM 1290 Super Adventure R

Max Power 118 kW / 160 hp @ 9000 rpm

Max Torque 138 Nm / 101.7 lb-ft @ 6500 rpm

Displacement 1301 cc / 79.3 cu-in

Engine Detail Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder

Bore x Stroke 108 x 71 mm

Compression Ratio 13.1:1

Cooling System Liquid cooling system, continuous circulation of cooling liquid with water pump

Emissions EURO5

Engine Management Keihin EMS with RBW and cruise control

Exhaust Stainless steel silencer

Fuel Induction 2x Keihin EFI, 52mm throttle bodies

Ignition System contactless, controlled, fully electronic ignition system with digital ignition timing adjustment

Lubrication Pressure lubrication with 3 Eaton pumps

Starter Electric
