Key Specifications
Engine
In-line four, four-stroke
Torque
158.20 Nm (16.1 kgf-m or 116.7 ft.lbs) @ 7500 Revolutions
Weight
268.0 kg / 590.8 lbs
Fuel Capacity
22.00 litres / 5.81 gallons
Advertisement

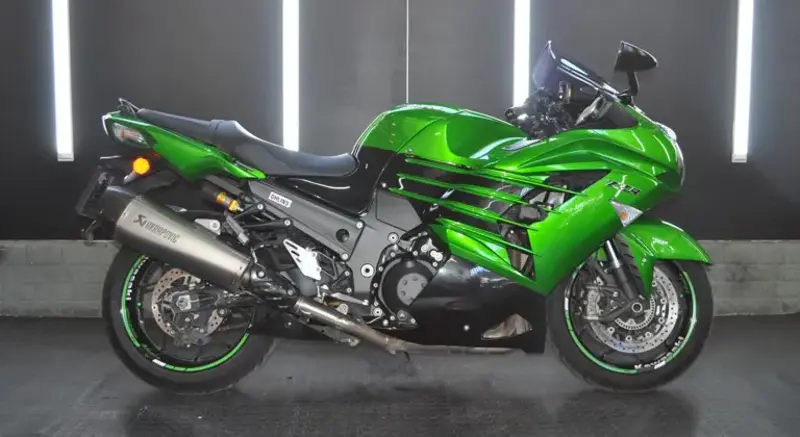

Full 2017 Kawasaki ZZR1400 Specifications
Comments
Small windscreen.
Colours
Metallic Spark Black/Golden Blazed Green
Ground Clearance (mm)
125 mm
Ground Clearance (in.)
4.9 inches
Seat Height
800 mm / 31.5 in.
Wheelbase
1,480 mm / 58.3 in.
Height
1,170 mm / 46.1 in.
Length
2,170 mm / 85.4 in.
Width
770 mm / 30.3 in.
Fuel Capacity
22.00 litres / 5.81 gallons
Wet Weight
268.0 kg / 590.8 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
87.93 cubic inches
Displacement (cc)
1441.00 cc
CO2
148.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
84.0 x 65.0 mm
Bore x Stroke (in,)
3.3 x 2.6 inches
Fuel System
Injection. Mikuni
Compression Ratio
12.3:1
Engine Lubrication
Forced lubrication, wet sump with oil cooler
Fuel Consumption
6.40 litres/100 km (15.6 km/l or 36.75 mpg)
Ignition
Digital
Starter
Electric
Valve System
4
Clutch
Wet multi-disc, manual
Final Drive
Chain
Gearbox
6-speed
Primary Drive
Sealed chain
Frame Type
Monocoque, aluminium
Suspension - Front
43 mm inverted fork with top-out springs. Compression damping: 18-way. Rebound damping: 15-way. Spring preload: Fully adjustable.
Suspension - Rear
Bottom-Link Uni-Trak with gas-charged shock. Compression damping: Stepless. Rebound damping: Stepless. Spring preload: Fully adjustable.
Rake
23.0°
Trail
93 mm / 3.7 in.
Wheel Travel - Front
117 mm / 4.6 in.
Wheel Travel - Rear
124 mm / 4.9 in.
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
9.8 inches
Brakes - Rear Diameter (mm)
250 mm
Brakes - Front
Double disc. Dual radial-mount, opposed 4-piston, 4-pad.
Brakes - Rear
Single disc. Opposed, twin-piston caliper.
Tyres - Front
120/70-ZR17
Tyres - Rear
190/50-ZR17
