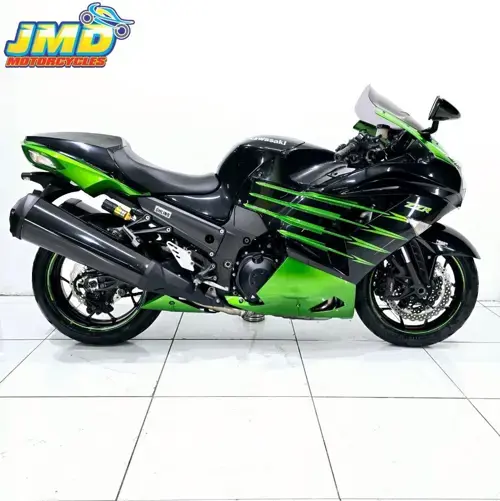

Kawasaki ZZR1400 Specs

2012 - 2018 • 4 variants

First introduced in 2012, the Kawasaki ZZR1400 is a sport motorcycle that has seen 4 variants through 2018. The engine is a reed valve. at 1352.00 cc. It delivers 158.2 Nm of torque.

About the Kawasaki ZZR1400

Documented here are the full technical specifications for the Kawasaki ZZR1400, a Sport motorcycle with a production run from 2006 to 2020. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

Kawasaki ZZR1400 by Year

2018 Kawasaki ZZR1400 View specs →

2017 Kawasaki ZZR1400 View specs →

2016 Kawasaki ZZR1400 View specs →

2012 Kawasaki ZZR1400 View specs →

Spec Evolution

How key specs changed across production years.

Specification	2006	2007	2008	2010	2011	2012	2013	2014	2015	2016	2017	2018	2019	2020
Bore x Stroke (in,)	3.3 x 2.4 inches	3.3 x 2.4 inches	3.3 x 2.4 inches	3.3 x 2.4 inches	3.3 x 2.4 inches	3.3 x 2.6 inches	3.3 x 2.6 inches	3.3 x 2.6 inches	3.3 x 2.6 inches	3.3 x 2.6 inches	3.3 x 2.6 inches	3.3 x 2.6 inches	3.3 x 2.6 inches	3.3 x 2.6 inches
Bore x Stroke (mm)	84.0 x 61.0 mm	84.0 x 61.0 mm	84.0 x 61.0 mm	84.0 x 61.0 mm	84.0 x 61.0 mm	84.0 x 65.0 mm	84.0 x 65.0 mm	84.0 x 65.0 mm	84.0 x 65.0 mm	84.0 x 65.0 mm	84.0 x 65.0 mm	84.0 x 65.0 mm	84.0 x 65.0 mm	84.0 x 65.0 mm
Comments	-	-	-	-	-	-	-	-	Maximum power with RAM Air is 154.5 kW (210 HP) at 10,000 rpm.	Small windscreen.	Small windscreen.	Small windscreen. Maximum power of 210 PS with RAM air.	Small windscreen. Maximum power of 210 PS with RAM air.	Small windscreen. Maximum power of 210 PS with RAM air.
Displacement (cc)	1352.00 cc	1352.00 cc	1352.00 cc	1352.00 cc	1352.00 cc	1441.00 cc ↑	1441.00 cc	1441.00 cc	1441.00 cc	1441.00 cc	1441.00 cc	1441.00 cc	1441.0 cc	1441.0 cc
Displacement (ci)	82.50 cubic inches	82.50 cubic inches	82.50 cubic inches	82.50 cubic inches	82.50 cubic inches	87.93 cubic inches ↑	87.93 cubic inches	87.93 cubic inches	87.93 cubic inches	87.93 cubic inches	87.93 cubic inches	87.93 cubic inches	87.93 cubic inches	87.93 cubic inches
Engine Type	In-line four	In-line four	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	V2, four-stroke	V2, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Fuel Control	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	Single Overhead Cams (SOHC)	DOHC	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)
Brakes - Rear Diameter (in.)	-	-	10.6 inches	10.6 inches	9.8 inches ↓	9.8 inches	9.8 inches	-	9.8 inches	9.8 inches	9.8 inches	9.8 inches	-	-
Brakes - Rear Diameter (mm)	-	-	270 mm	270 mm	250 mm ↓	250 mm	250 mm	-	250 mm	250 mm	250 mm	250 mm	-	-
Frame Type	-	Semi-double cradle, high-tensile steel	Aluminium	Monocoque, aluminium	Monocoque, aluminium	Monocoque, aluminium	Monocoque, aluminium	Monocoque, aluminium	Monocoque, pressed-aluminium	Monocoque, aluminium	Monocoque, aluminium	Monocoque, aluminium	Monocoque, aluminium	Monocoque, pressed-aluminium
Dry Weight	-	215 kg / 474.0 lbs	224 kg / 493.8 lbs ↑	257 kg / 566.6 lbs ↑	261 kg / 575.4 lbs ↑	-	-	-	-	-	-	-	-	-
Brakes - Front	Double disc	Double disc	Double disc	Double disc. ABS	Double disc. Dual radial-mount, opposed 4-piston, 4-pad	Double disc. ABS. Dual radial-mount, opposed 4-piston, 4-pad	Double disc. Petal discs. Dual radial-mount, opposed 4-piston, 4-pad	Double disc	Double disc	Double disc. Dual radial-mount, opposed 4-piston, 4-pad.	Double disc. Dual radial-mount, opposed 4-piston, 4-pad.	Double disc. Dual radial-mount, opposed 4-piston, 4-pad.	Double disc. Dual radial-mount, opposed 4-piston, 4-pad.	Double disc. Dual radial-mount, opposed 4-piston, 4-pad.
Wheelbase	-	1,461 mm / 57.5 in.	1,460 mm / 57.5 in.	1,460 mm / 57.5 in.	1,460 mm / 57.5 in.	1,460 mm / 57.5 in.	1,480 mm / 58.3 in. ↑	1,480 mm / 58.3 in.	1,480 mm / 58.3 in.	1,480 mm / 58.3 in.	1,480 mm / 58.3 in.	1,480 mm / 58.3 in.	1480 mm / 58.3 in. ↑	1480 mm / 58.3 in.
Fuel Capacity	-	21.95 litres / 5.80 gallons	22.00 litres / 5.81 gallons ↑	22.00 litres / 5.81 gallons	22.00 litres / 5.81 gallons	22.00 litres / 5.81 gallons	22.00 litres / 5.81 gallons	22.00 litres / 5.81 gallons	22.00 litres / 5.81 gallons	22.00 litres / 5.81 gallons	22.00 litres / 5.81 gallons	22.00 litres / 5.81 gallons	22.00 litres / 5.81 US gallons	22.00 litres / 5.81 US gallons
Brakes - Rear	Single disc	Single disc	Single disc	Single disc. ABS	Single disc. Opposed, twin-piston	Single disc. ABS. Opposed, twin-piston	Single disc. Petal disc. Opposed, twin-piston caliper.	Single disc	Single disc	Single disc. Opposed, twin-piston caliper.	Single disc. Opposed, twin-piston caliper.	Single disc. Opposed, twin-piston caliper.	Single disc. Opposed, twin-piston caliper.	Single disc. Opposed, twin-piston caliper.
Suspension - Front	43mm Inverted Cartridge Fork with Adjustable	43mm inverted cartridge fork with adjustable preload, stepless rebound and compression damping adjustments / 4.6 in.	Inverted, telescopic fork, 43 mm	43mm inverted, telescopic fork with adjustable rebound damping and spring preload / 4.4 in.	43 mm inverted fork with top-out springs. 13-way Compression damping. 11-way Rebound damping. Fully adjustable Spring preload.	43 mm inverted fork with top-out springs. 13-way Compression damping. 11-way Rebound damping. Fully adjustable Spring preload.	43 mm inverted fork with top-out springs Compression damping: 18-way Rebound damping: 15-way Spring preload: Fully adjustable	Type	43 mm inverted fork with top-out springs. Compression damping: 18-way. Rebound damping: 15-way. Spring preload: Fully adjustable.	43 mm inverted fork with top-out springs. Compression damping: 18-way. Rebound damping: 15-way. Spring preload: Fully adjustable.	43 mm inverted fork with top-out springs. Compression damping: 18-way. Rebound damping: 15-way. Spring preload: Fully adjustable.	43 mm inverted fork with top-out springs Compression damping: 18-way Rebound damping: 15-way Spring preload: Fully adjustable.	43 mm inverted fork with top-out springs Compression damping: 18-way Rebound damping: 15-way Spring preload: Fully adjustable.	43 mm inverted fork with top-out springs Compression damping: 18-way Rebound damping: 15-way Spring preload: Fully adjustable.
Suspension - Rear	Uni-Trak with Adjustable Preload, Stepless	Uni-Trak® with adjustable preload, stepless rebound and compression damping adjustments, adjustable ride height / 4.8 in.	Aluminium swing arm with Bottom-Link-Uni-Trak	Tetra-Lever with stepless rebound damping adjustment and remote spring preload adjuster / 5.4 in.	Bottom-Link Uni-Trak with gas-charged shock. Stepless Compression damping. Stepless Rebound damping. Fully adjustable Spring preload.	Bottom-Link Uni-Trak with gas-charged shock. Stepless Compression damping. Stepless Rebound damping. Fully adjustable Spring preload.	Bottom-Link Uni-Trak with gas-charged shock Compression damping: Stepless Rebound damping: Stepless Spring preload: Fully adjustable	Type	Bottom-Link Uni-Trak with gas-charged shock. Compression damping: Stepless. Rebound damping: Stepless. Spring preload: Fully adjustable.	Bottom-Link Uni-Trak with gas-charged shock. Compression damping: Stepless. Rebound damping: Stepless. Spring preload: Fully adjustable.	Bottom-Link Uni-Trak with gas-charged shock. Compression damping: Stepless. Rebound damping: Stepless. Spring preload: Fully adjustable.	Bottom-Link Uni-Trak, ?hlins TTX39 rear shock with piggyback reservoir and remote preload adjuster Compression Damping: 22-way Rebound Damping: 22-way Spring Preload: Fully adjustable	Bottom-Link Uni-Trak, Öhlins TTX39 rear shock with piggyback reservoir and remote preload adjuster Compression Damping: 22-way Rebound Damping: 22-way Spring Preload: Fully adjustable	Bottom-Link Uni-Trak with gas-charged shock. Compression damping: Stepless. Rebound damping: Stepless. Spring preload: Fully adjustable.
Fuel System	Injection. DFI with Mikuni 44mm Throttle Bodies (4)	Injection. DFI with Mikuni 44mm Throttle Bodies (4)	Injection. 4 x Mikuni ↓	Injection	Injection	Injection. 44 mm x 4 (Mikuni)	Injection	Injection	Injection	Injection. Mikuni	Injection. Mikuni	Injection. Mikuni	Injection. Mikuni	Injection. Ø 44 mm x 4 (Mikuni)
Colours	Passion Red, Ebony, Candy Thunder Blue	Diablo Black, Candy Plasma Blue, Special Edition: Pearl Crystal White	-	Black, gray/black	Realtree APG HD camouflage	Realtree APG HD camouflage	Blue	Green/black	Green/black, Grey/black	Metallic Carbon Gray/Galaxy Silver	Metallic Spark Black/Golden Blazed Green	Emerald Blazed Green/Metallic Carbon Grey	Metallic Spark Black/Candy Cardinal Red	Metallic Diablo Black/Golden Blazed Green
Clutch	-	-	-	Wet multi-disc, manual	Wet mDouble disk, manual	Wet mDouble disk, manual	Wet multi-disc, manual	Wet multi-disc, manual	Wet multi-disc, manual	Wet multi-disc, manual	Wet multi-disc, manual	Wet multi-disc, manual	Wet multi-disc, manual	Wet multi-disc, manual
Final Drive	Chain	Chain	Chain	Shaft drive (cardan)	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain (final drive)	Chain (final drive)
Height	-	1,171 mm / 46.1 in.	1,170 mm / 46.1 in.	1,170 mm / 46.1 in.	1,170 mm / 46.1 in.	1,170 mm / 46.1 in.	1,170 mm / 46.1 in.	1,170 mm / 46.1 in.	1,170 mm / 46.1 in.	1,170 mm / 46.1 in.	1,170 mm / 46.1 in.	1,170 mm / 46.1 in.	1170 mm / 46.1 in. ↑	1170 mm / 46.1 in.
Length	-	2,169 mm / 85.4 in.	2,170 mm / 85.4 in.	2,171 mm / 85.5 in.	2,170 mm / 85.4 in.	2,170 mm / 85.4 in.	2,170 mm / 85.4 in.	2,170 mm / 85.4 in.	2,170 mm / 85.4 in.	2,170 mm / 85.4 in.	2,170 mm / 85.4 in.	2,170 mm / 85.4 in.	2170 mm / 85.4 in. ↑	2170 mm / 85.4 in.
Wet Weight	-	-	-	-	292.1 kg / 643.9 lbs	265.0 kg / 584.2 lbs ↓	268.0 kg / 590.8 lbs ↑	268.0 kg / 590.8 lbs	268.0 kg / 590.8 lbs	268.0 kg / 590.8 lbs	268.0 kg / 590.8 lbs	268.0 kg / 590.8 lbs	268.0 kg / 590.8 lbs	269.0 kg / 593.0 lbs ↑
Compression Ratio	12.7:1	12.0:1 ↓	12.0:1	10.7:1 ↓	12.0:1 ↑	12.3:1 ↑	12.3:1	12.3:1	12.3:1	12.3:1	12.3:1	12.3:1	12.3:1	12.3:1
Tyres - Front	120/70-VR18	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17
Gearbox	6-speed	6-speed	6-speed	6-speed	-	6-speed	2-speed ↓	-	6-speed	6-speed	6-speed	6-speed	6-speed	6-speed
Width	-	759 mm / 29.9 in.	760 mm / 29.9 in. ↑	760 mm / 29.9 in.	760 mm / 29.9 in.	760 mm / 29.9 in.	770 mm / 30.3 in. ↑	770 mm / 30.3 in.	770 mm / 30.3 in.	770 mm / 30.3 in.	770 mm / 30.3 in.	770 mm / 30.3 in.	770 mm / 30.3 in.	770 mm / 30.3 in.
Tyres - Rear	150/80-VR16	190/50-ZR17 ↑	190/50-ZR17	190/50-ZR17	190/50-ZR17	190/50-ZR17	190/50-ZR17	190/50-ZR17	190/50-ZR17	190/50-ZR17	190/50-ZR17	190/50-ZR17	-	-
Rake	-	23.0°	26.1° ↑	23.0° ↓	23.0°	23.0°	-	-	-	23.0°	23.0°	23.0°	23.0°	23.0°
Trail	-	-	112 mm / 4.4 in.	94 mm / 3.7 in. ↓	94 mm / 3.7 in.	94 mm / 3.7 in.	-	-	-	93 mm / 3.7 in.	93 mm / 3.7 in.	93 mm / 3.7 in.	93 mm / 3.7 in.	93 mm / 3.7 in.
Ignition	TCBI with Digital Advance	TCBI with Digital Advance	Digital	TCBI with Digital Advance	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital	Digital
Max Torque	-	153.90	136.00 ↓	154.00 Nm (15.7 kgf-m or 113.6 ft.lbs) @ 7500 ↑	154.00 Nm (15.7 kgf-m or 113.6 ft.lbs) @ 7500	-	162.50 Nm (16.6 kgf-m or 119.9 ft.lbs) @ 6100	162.50 Nm (16.6 kgf-m or 119.9 ft.lbs) @ 6100	162.50 Nm (16.6 kgf-m or 119.9 ft.lbs) @ 6100 Revolutions	158.20 Nm (16.1 kgf-m or 116.7 ft.lbs) @ 7500 Revolutions ↓	158.20 Nm (16.1 kgf-m or 116.7 ft.lbs) @ 7500 Revolutions	158.20 Nm (16.1 kgf-m or 116.7 ft.lbs) @ 7500 Revolutions	158.2 Nm (16.1 kgf-m or 116.7 ft.lbs) @ 7500 Revolutions	158.2 Nm (16.1 kgf-m or 116.7 ft.lbs) @ 7500 Revolutions
