Key Specifications
Engine
Single cylinder, four-stroke
Power
42.1 hp / 31 kW @ 7000 rpm
Torque
47 Nm / 4.7 kgf-m @ 5000 rpm
Fuel Capacity
21.95 litres

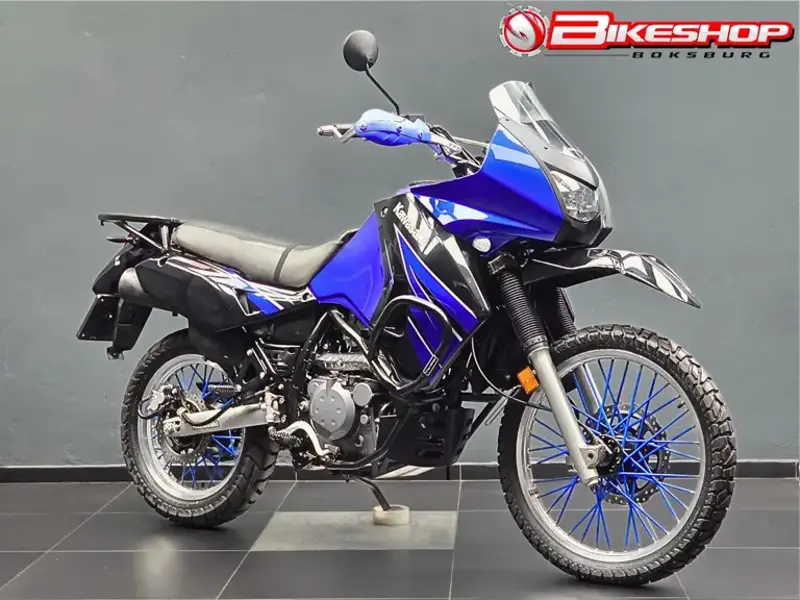

Full 2011 Kawasaki KLR 650 Specifications
Year
2010 - 11
Colours
Metallic Flat Raw Graystone/Ebony, Candy Plasma Blue/Galaxy Silver, Candy Burnt Orange/Galaxy Silver
Colours
Ebony, Candy Persimmon Red, Candy Thunder Blue
Make Model
Kawasaki KLR 650
Warranty
12 Months
Width (mm)
960 mm
Width (in.)
37.8 inches
Wheelbase (mm)
1,481 mm
Wheelbase (in.)
58.3 inches
Seat Height (mm)
889 mm
Seat Height (in.)
35.0 inches
Length (mm)
2,296 mm
Length (in.)
90.4 inches
Height (mm)
1,349 mm
Height (in.)
53.1 inches
Ground Clearance (mm)
211 mm
Ground Clearance (in.)
8.3 inches
Width (mm)
960 mm
Width (in.)
37.8 inches
Wheelbase (mm)
1,481 mm
Wheelbase (in.)
58.3 inches
Seat Height (mm)
889 mm
Seat Height (in.)
35.0 inches
Ground Clearance (in.)
8.3 inches
Ground Clearance (mm)
211 mm
Height (in.)
53.1 inches
Height (mm)
1,349 mm
Length (in.)
90.4 inches
Length (mm)
2,296 mm
Seat Height
889 mm / 35 in
Wheelbase
1480 mm / 58.3 in
Ground Clearance
210 mm / 8.3 in
Height
1350 mm / 53.1 in
Length
2295 mm / 90.4 in
Width
960 mm / 37.8 in
Wet Weight (lbs.)
432.0 pounds
Wet Weight (kg)
196.0 kg
Fuel Capacity (l)
21.95 litres
Fuel Capacity (gal.)
5.80 gallons
Fuel Capacity (gal.)
6.10 gallons
Fuel Capacity (l)
23.08 litres
Wet Weight (kg)
196.0 kg
Wet Weight (lbs.)
432.0 pounds
Fuel Capacity
23 Litres / 5.8 US gal.
Wet Weight
194 kg / 432 lbs
Fuel Control
DOHC
Displacement (cc)
651.00 cc
Bore x Stroke (mm)
100.0 x 83.0 mm
Engine Type
Single cylinder, four-stroke
Displacement (ci)
39.72 cubic inches
Displacement (cc)
651.00 cc
Displacement (ci)
39.72 cubic inches
Engine Type
Single cylinder, four-stroke
Bore x Stroke (in,)
3.9 x 3.3 inches
Bore x Stroke (mm)
100.0 x 83.0 mm
Bore x Stroke (in,)
3.9 x 3.3 inches
Fuel Control
DOHC
Displacement
651 cc / 39.7 cu-in
Engine Detail
Four stroke, single cylinder, DOHC, 4 valves per cylinder
Fuel System
Carburettor. Keihin CVK40
Fuel System
Carburettor. Keihin CVK40
Bore x Stroke
100 x 83 mm.
Compression Ratio
9.8:1
Compression Ratio
10.0:1
Cooling System
Liquid cooled
Fuel Induction
Keihin CVK40
Ignition
Electric CDI
Ignition
Transistorized
Lubrication
Forced lubrication (wet sump)
Starter
Electric
Starter
Electric
Valve System
4
Valve System
4
Clutch
Wet multi-disc, cable operation
Final Drive
Chain
Final Drive
Sealed Chain
Final Drive Ratio
2.867 (43/15)
Gear Ratios
1st 2.266 (34/15) 2nd 1.444 (26/18) 3rd 1.136 (25/22) 4th 0.954 (21/22) 5th 0.791 (19/24)
Gearbox
5-speed
Gearbox
5-speed
Primary Drive Ratios
2.272 / 75/33
Transmission / Drive
5 Speed
Trail (in.)
4.4 inches
Trail (mm)
112 mm
Frame Type
Semi-double Cradle Made of high-tech, round-section, high-tensile steel
Frame Type
Semi-double cradle, high-tensile steel
Suspension - Front
41mm Air-adjustable forks,
Suspension - Front
Single A-arm with twin shock absorbers / 2.8 in.
Suspension - Rear
Uni-Trak single-shock system with 5-way preload and stepless rebound damping / 7.3 in.
Suspension - Rear
Uni-Trak® linkage, 5-way preload shock absorber with 4way rebound damping.
Rake
28.0°
Rake
28.0°
Trail
112 mm / 4.4 in
Wheel Travel - Front
200 mm / 7.8 in
Wheel Travel - Rear
185 mm / 7.2 in
Brakes - Front Diameter (in.)
11.0 inches
Brakes - Front Diameter (mm)
280 mm
Brakes - Rear Diameter (mm)
200 mm
Brakes - Rear Diameter (in.)
7.9 inches
Brakes - Front Diameter (mm)
280 mm
Brakes - Front Diameter (in.)
11.0 inches
Brakes - Front
Single 280mm disc 2 piston caliper
Brakes - Front
Single disc
Brakes - Rear
Single 203mm disc 1 piston caliper
Brakes - Rear
Single disc
Tyres - Front
90/90 -21
Tyres - Front
90/90-21
Tyres - Front
18/7-8
Tyres - Rear
130/80 -17
Tyres - Rear
130/80-17
Tyres - Rear
18/9-8
