Key Specifications
Power
42.1 hp / 31 kW @ 7000 rpm
Torque
47 Nm / 4.7 kgf-m @ 5000 rpm
Fuel Capacity
6.10 gallons

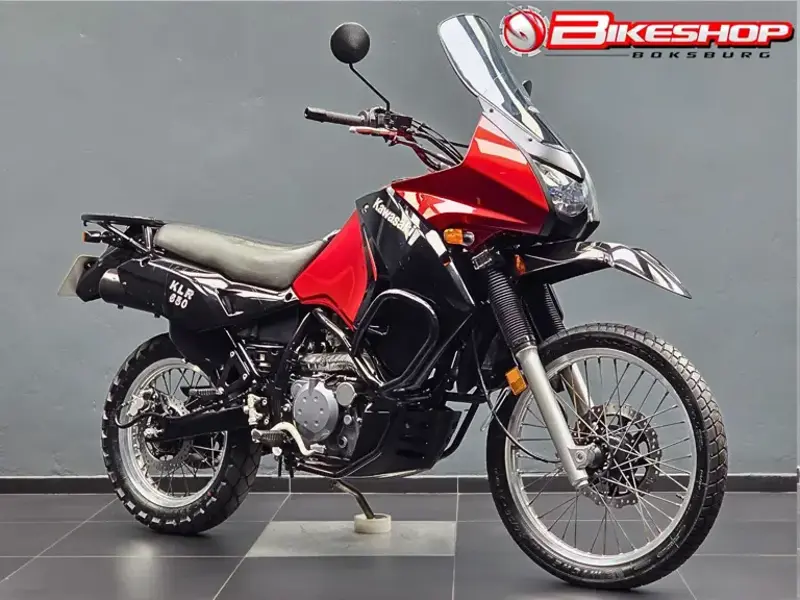

Full 2009 Kawasaki KLR 650 Specifications
Year
2008 - 09
Colours
Ebony, Sunbeam Red, Oriental Blue
Make Model
Kawasaki KLR 650
Width (mm)
960 mm
Width (in.)
37.8 inches
Wheelbase (mm)
1,481 mm
Wheelbase (in.)
58.3 inches
Seat Height (mm)
889 mm
Seat Height (in.)
35.0 inches
Length (mm)
2,296 mm
Length (in.)
90.4 inches
Height (mm)
1,349 mm
Height (in.)
53.1 inches
Ground Clearance (mm)
211 mm
Ground Clearance (in.)
8.3 inches
Ground Clearance (in.)
8.1 inches
Ground Clearance (mm)
206 mm
Seat Height (in.)
34.8 inches
Seat Height (mm)
883 mm
Wheelbase (in.)
58.3 inches
Wheelbase (mm)
1,481 mm
Seat Height
889 mm / 35 in
Wheelbase
1480 mm / 58.3 in
Ground Clearance
210 mm / 8.3 in
Height
1350 mm / 53.1 in
Length
2295 mm / 90.4 in
Width
960 mm / 37.8 in
Dry Weight (lbs.)
387.0 pounds
Dry Weight (kg)
175.5
Fuel Capacity (gal.)
6.10 gallons
Fuel Capacity (l)
23.08 litres
Fuel Capacity (gal.)
6.10 gallons
Fuel Capacity (l)
23.08 litres
Wet Weight (kg)
196.0 kg
Wet Weight (lbs.)
432.0 pounds
Wet Weight (kg)
194.1 kg
Wet Weight (lbs.)
428.0 pounds
Fuel Capacity
23 Litres / 5.8 US gal.
Wet Weight
194 kg / 432 lbs
Engine Type
Single cylinder
Displacement (ci)
39.72 cubic inches
Displacement (cc)
651.00 cc
Bore x Stroke (mm)
100.0 x 83.0 mm
Bore x Stroke (in,)
3.9 x 3.3 inches
Stroke
4
Bore x Stroke (in,)
3.9 x 3.3 inches
Bore x Stroke (mm)
100.0 x 83.0 mm
Displacement (cc)
651.00 cc
Displacement (ci)
39.72 cubic inches
Engine Type
Single cylinder, four-stroke
Fuel Control
DOHC
Displacement
651 cc / 39.7 cu-in
Engine Detail
Four stroke, single cylinder, DOHC, 4 valves per cylinder
Fuel System
Carburettor. Keihin CVK40
Fuel System
Carburettor. Keihin CVK 40
Bore x Stroke
100 x 83 mm.
Compression Ratio
9.8:1
Compression Ratio
9.8:1
Cooling System
Liquid cooled
Engine Oil Specification
Semi-Synthetic, 10W/40
Fuel Induction
Keihin CVK40
Ignition
Transistorized
Ignition
Fully transistorized
Lubrication
Forced lubrication (wet sump)
Spark Plug
NGK, DPR 8EA/9
Starter
Electric
Starter
Electric
Valve System
4
Clutch
Wet multi-disc, cable operation
Final Drive
Sealed Chain
Final Drive
Chain
Final Drive Ratio
2.867 (43/15)
Gear Ratios
1st 2.266 (34/15) 2nd 1.444 (26/18) 3rd 1.136 (25/22) 4th 0.954 (21/22) 5th 0.791 (19/24)
Gearbox
5-speed
Gearbox
5-speed
Primary Drive Ratios
2.272 / 75/33
Transmission / Drive
5 Speed
Wheel Travel - Front (in.)
7.9 inches
Wheel Travel - Front (in.)
7.9 inches
Wheel Travel - Front (mm)
201 mm
Wheel Travel - Front (mm)
201 mm
Wheel Travel - Rear (in.)
7.3 inches
Wheel Travel - Rear (mm)
185 mm
Frame Type
Semi-double cradle, high-tensile steel
Frame Type
Semi-double Cradle Made of high-tech, round-section, high-tensile steel
Suspension - Front
41mm telescopic fork / 7.9 in.
Suspension - Front
41mm Air-adjustable forks,
Suspension - Rear
UNI-TRAK® single-shock system with 5-way preload and stepless rebound damping / 7.3 in.
Suspension - Rear
Uni-Trak® linkage, 5-way preload shock absorber with 4way rebound damping.
Rake
28.0°
Trail
112 mm / 4.4 in
Wheel Travel - Front
200 mm / 7.8 in
Wheel Travel - Rear
185 mm / 7.2 in
Brakes - Front Diameter (in.)
11.0 inches
Brakes - Front Diameter (mm)
280 mm
Brakes - Rear Diameter (in.)
9.4 inches
Brakes - Rear Diameter (mm)
240 mm
Brakes - Rear Diameter (mm)
240 mm
Brakes - Rear Diameter (in.)
9.4 inches
Brakes - Front Diameter (mm)
280 mm
Brakes - Front Diameter (in.)
11.0 inches
Brakes - Front
Single 280mm disc 2 piston caliper
Brakes - Front
Single disc
Brakes - Rear
Single 203mm disc 1 piston caliper
Brakes - Rear
Single disc
Tyres - Front
90/90 -21
Tyres - Front
90/90-21
Tyres - Rear
130/80 -17
Tyres - Rear
130/80-17
