Key Specifications
Power
95 kW / 127 hp @ 7750 rpm
Torque
126 Nm / 92.9 lb-ft @ 6500 rpm
Fuel Capacity
21.50 litres

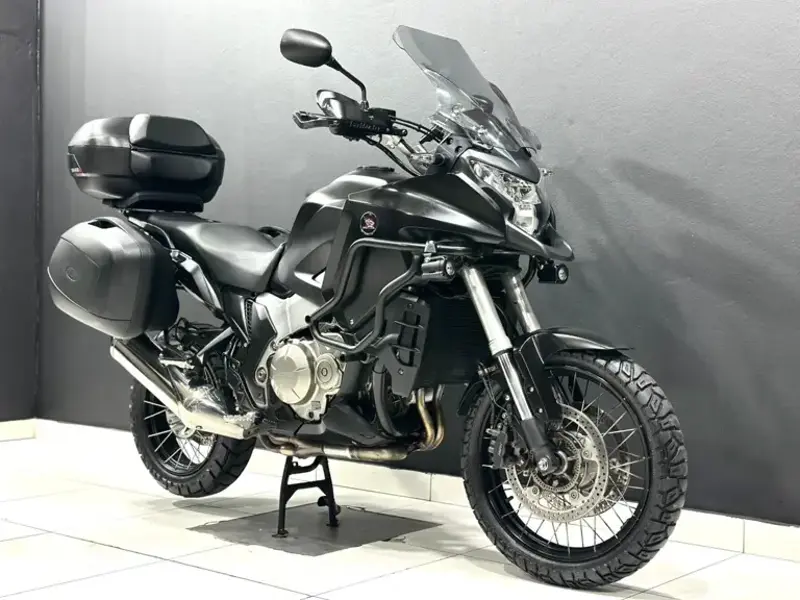

Full 2013 Honda VFR 1200X Crosstourer Specifications
Year
2013
Colours
Black, red, white, blue
Make Model
Honda VFR 1200X Crosstourer
Ground Clearance (in.)
7.1 inches
Ground Clearance (mm)
180 mm
Height (in.)
52.6 inches
Height (mm)
1,335 mm
Length (in.)
90.0 inches
Length (mm)
2,285 mm
Seat Height (in.)
33.5 inches
Seat Height (mm)
850 mm
Wheelbase (in.)
62.8 inches
Wheelbase (mm)
1,595 mm
Width (in.)
36.0 inches
Width (mm)
915 mm
Seat Height
850 mm / 33.5 in
Wheelbase
1595 mm / 62.8 in
Ground Clearance
180 mm / 7.1 in
Height
1335 mm / 52.6 in
Length
2285 mm / 90.0 in
Width
915 mm . / 36.0 in
Wet Weight (lbs.)
606.3 pounds
Wet Weight (kg)
275.0 kg
Fuel Capacity (l)
21.50 litres
Fuel Capacity (gal.)
5.68 gallons
Fuel Capacity
21 Litres / 5.6 gal
Wet Weight
275 kg / 610 lbs
Fuel Control
Single Overhead Cams (SOHC)
Engine Type
V4, four-stroke
Displacement (ci)
75.48 cubic inches
Bore x Stroke (in,)
3.2 x 2.4 inches
Bore x Stroke (mm)
81.0 x 60.0 mm
Displacement (cc)
1237.00 cc
CO2
119.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement
1237 cc / 69.2 cu-in
Engine Detail
Four stroke, 76 ° V-4, SOHC, 4 valve per cylinder
Fuel System
Injection. PGM-FI
Bore x Stroke
81 x 60 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Fuel Consumption
5.17 litres/100 km (19.3 km/l or 45.50 mpg)
Fuel Induction
PGM-FI electronic fuel injection 44mm Throttle Bore
Ignition
Computer-controlled digital transistorised with electronic advance gnition Timing 8.4° BTDC (idle speed)
Spark Plug
NGK IMR8E-9HES
Starter
Electric
Valve System
4
Clutch
Wet, multiplate
Final Drive
Shaft
Final Drive Ratio
2.699 (37/39 x 19/17 x 28/11) * 2.706 (39/41 x 19/17 x 28/11)
Gear Ratios
1 2.600 (39T / 15T) *2.250 (36T / 16T) / 2 1.600 (32T / 20T) *1.700 (34T / 20T) / 3 1.260 (29T / 28T) *1.304 (30T / 23T) / 4 1.076 (28T / 26T) *1.107 (31T / 28T) / 5 0.961 (25T / 26T) *0.967 (29T / 30T) / 6 0.897 (35T / 39T) *0.886 (31T / 35T)
Gearbox
6-speed
Transmission / Drive
6 Speed
Trail (in.)
4.2 inches
Trail (mm)
107 mm
Frame Type
Diamond; aluminium twin-spar
Suspension - Front
I43mm inverted telescopic forks with hydraulic damping, preload and rebound damping adjustment,
Suspension - Rear
Pro-Link with gas-charged damper, preload and stepless rebound damping adjustment
Rake
28.0°
Trail
107 mm / 4.2 in
Brakes - Rear Diameter (in.)
10.9 inches
Brakes - Rear Diameter (mm)
276 mm
Brakes - Front Diameter (mm)
310 mm
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front
2x 310mm discs ABS
Brakes - Rear
Single 276mm disc ABS
Tyres - Front
110/80-R19
Tyres - Rear
150/70 R17
