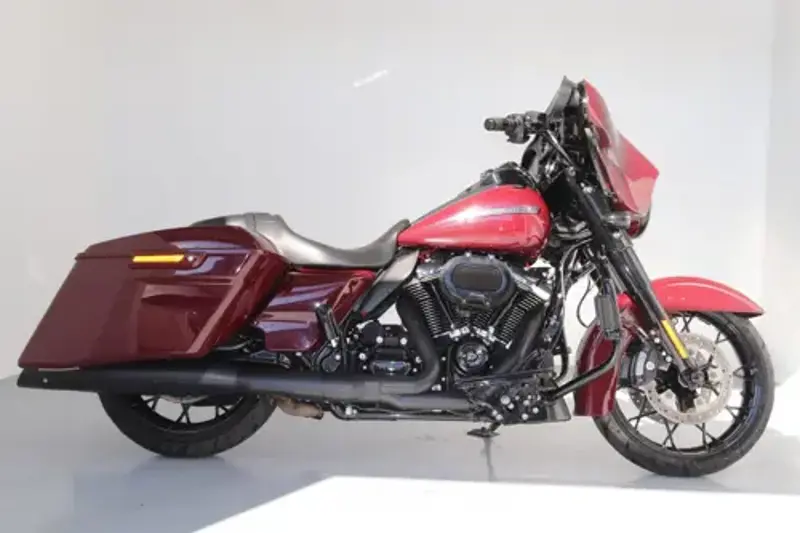

2020 Harley-Davidson Street Glide Specifications

Name: 2020 Harley-Davidson Street Glide
Brand: Harley-Davidson

Touring • Specs last verified 13 July 2026

No images available

Tap to enlarge

2020 Harley-Davidson Street Glide Overview

Harley-Davidson Street Glide is a touring motorcycle, displacing 1746 cc. Power comes from a V2, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 10.0:1. Bore and stroke come in at 100 x 111 mm. On the performance side, it delivers 150 Nm @ 3250 Revolutions of torque. On the road, the 2020 Street Glide tips the scales at 376 kg, carries a 22.71-litre fuel tank, offers a seat height of 663 mm and spans a 1625 mm wheelbase. That's roughly 51.9 kg heavier than the average touring motorcycle in our database. The full 2020 Harley-Davidson Street Glide spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2020 Street Glide - Pros & Cons

Strengths

Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
Accessible seat height: A 663 mm seat height keeps this manageable for most riders, which helps confidence at parking-lot speeds.
Large fuel range: A 22.71-litre tank means fewer stops on longer rides - a genuine plus for touring or a lengthy daily commute.
Low-maintenance final drive: Running Belt (final drive) final drive cuts out the regular chain cleaning and tensioning that most bikes need.

Considerations

Age-related wear: Nothing specific stands out as a weak point on the Street Glide - the usual used-bike checks (service history, consumables, tyres) apply.

Wear Points & Servicing Notes

Fuelling & injector care

The fuel injection on the Street Glide needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Valve clearance checks

With Double Overhead Cams/Twin Cam (DOHC) valve gear, the Street Glide needs periodic clearance checks; caught early they're a cheap adjustment, left unchecked they accelerate valve seat wear.

Brake disc and pad wear

Braking up front comes from Double disc. ABS. 4-piston - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The Street Glide's suspension runs Telescopic fork at the front. The rear uses Twin shocks. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The Street Glide runs belt final drive: no lubrication or frequent adjustment like a chain, though belt tension and wear are worth a periodic look.

Handling the weight at a standstill

376 kg puts the Street Glide toward the heavier end of its class. It's most noticeable at walking pace; once underway the mass settles into the handling rather than fighting it.

Street Glide - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2020 Harley-Davidson Street Glide, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy Street Glide should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects a Street Glide's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). The sump holds 4.90 litres, so budget for that volume of quality motorcycle-specific engine oil. Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the Street Glide needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

Valve clearance service

Valve clearances are easy to overlook on a used Street Glide since a bike out of spec doesn't always feel obviously wrong - but the wear it causes is real. Ask the seller for documentation before assuming it's been done.

2020 Harley-Davidson Street Glide - Frequently Asked Questions

What engine does the 2020 Harley-Davidson Street Glide have?

The 2020 Harley-Davidson Street Glide uses a V2, four-stroke engine with 1746 cc of displacement.

How much does the 2020 Harley-Davidson Street Glide weigh?

The 2020 Harley-Davidson Street Glide weighs 376 kg. This is the manufacturer's wet figure.

How much power does the 2020 Harley-Davidson Street Glide make?

The 2020 Harley-Davidson Street Glide produces 150 Nm @ 3250 Revolutions of torque.

What is the fuel tank capacity of the 2020 Harley-Davidson Street Glide?

The 2020 Harley-Davidson Street Glide has a 22.71-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 378-454 km between stops.

Is the 2020 Harley-Davidson Street Glide suitable for shorter riders?

The 2020 Harley-Davidson Street Glide has a seat height of 663 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2020 Harley-Davidson Street Glide have?

The 2020 Harley-Davidson Street Glide uses Double disc. ABS. 4-piston at the front and Single disc. ABS. 4-piston at the rear.

What tyre sizes does the 2020 Harley-Davidson Street Glide use?

The front tyre size on the 2020 Harley-Davidson Street Glide is 130/60-B19.

How much oil does the 2020 Harley-Davidson Street Glide take?

The 2020 Harley-Davidson Street Glide takes 4.90 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.

Harley-Davidson Street Glide Spec Evolution

The Harley-Davidson Street Glide was produced across 11 model years (2013-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2013	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023
Wet Weight	367.9 kg / 811.0 lbs	367.9 kg / 811.0 lbs	367.9 kg / 811.0 lbs	371.0 kg / 817.9 lbs	371.0 kg / 817.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs
Dry Weight	355.2 kg / 783.0 lbs	355.2 kg / 783.0 lbs	355.2 kg / 783.0 lbs	353 kg / 778.2 lbs	353 kg / 778.2 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs
Engine Detail	Twin Cam 103? with Integrated Oil-Cooler	Twin Cam 103? with Integrated Oil-Cooler	Twin Cam 103? with Integrated Oil-Cooler	Integrated Oil-Cooler	Milwaukee-Eight? 107	Milwaukee-Eight 107	Milwaukee-Eight 107	Milwaukee-Eight 107	Milwaukee-Eight 107	Milwaukee-Eight 107	Milwaukee-Eight 107 engine
Seat Height	663 mm / 26.1 in.	663 mm / 26.1 in.	663 mm / 26.1 in.	715 mm / 28.1 in.	715 mm / 28.1 in.	715 mm / 28.1 in.	715 mm / 28.1 in.	663 mm / 26.1 in.	663 mm / 26.1 in.	663 mm / 26.1 in.	663 mm / 26.1 in.
Fuel Capacity	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 US gallons	22.71 litres / 6.00 US gallons	22.71 litres / 6.00 US gallons	22.71 litres / 6.00 US gallons	22.71 litres / 6.00 US gallons
Bore x Stroke (mm)	98.4 x 111.3 mm	98.4 x 111.3 mm	98.4 x 111.3 mm	98.4 x 111.3 mm	98.4 x 111.3 mm	100.0 x 111.1 mm	100.0 x 111.0 mm	100.0 x 111.0 mm	99.8 x 111.1 mm	99.8 x 111.1 mm	99.8 x 111.1 mm
CO2	129.9 CO	129.9 CO	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)	136.9 CO2 g/km. (CO2 - Carbon dioxide emission)	136.9 CO2 g/km. (CO2 - Carbon dioxide emission)	126.9 CO2 g/km. (CO2 - Carbon dioxide emission)	121.3 CO2 g/km. (CO2 - Carbon dioxide emission)	126.9 CO2 g/km. (CO2 - Carbon dioxide emission)	126.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Comments	Windshield.	Windshield.	Windshield. Cruse control.	Windshield. Cruse control.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment. USB. Bluetooth.	Windshield. Cruise control. Security system. Infotainment. USB. Bluetooth.

Key Specifications

Engine

V2, four-stroke

Power

Not published by manufacturer

Torque

150.0 Nm (15.3 kgf-m or 110.6 ft.lbs) @ 3250 Revolutions

Top Speed

Not published by manufacturer

Weight

376.0 kg / 828.9 lbs

Fuel Capacity

22.71 litres / 6.00 US gallons

Full 2020 Harley-Davidson Street Glide Specifications

Comments Windshield. Cruise control. Infotainment.

Colours Vivid Black, Midnight Blue, Black Denim, Barracuda Silver, Stiletto Red, Tahitian Teal

Storage Saddle bags

Ground Clearance (mm) 135 mm

Ground Clearance (in.) 5.3 inches

Seat Height 663 mm / 26.1 in.

Wheelbase 1625 mm / 64.0 in.

Length 2450 mm / 96.5 in.

Oil Capacity (Quarts) 5.18 US quarts

Oil Capacity (l) 4.90 litres

Dry Weight 361 kg / 795.9 lbs

Fuel Capacity 22.71 litres / 6.00 US gallons

Wet Weight 376.0 kg / 828.9 lbs

Max Torque 150.0 Nm (15.3 kgf-m or 110.6 ft.lbs) @ 3250 Revolutions

Power-to-Weight Ratio 0.2465 HP/kg

Fuel Control Double Overhead Cams/Twin Cam (DOHC)

Engine Type V2, four-stroke

Displacement (ci) 106.54 cubic inches

Displacement (cc) 1746.0 cc

CO2 126.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Bore x Stroke (mm) 100.0 x 111.0 mm

Bore x Stroke (in,) 3.9 x 4.4 inches

Engine Detail Milwaukee-Eight 107

Fuel System Injection. ESPFI

Compression Ratio 10.0:1

Engine Lubrication Dry sump

Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Fuel Consumption 5.47 litres/100 km (18.3 km/l or 43.00 mpg)

Starter Electric

Clutch Multi-plate with diaphragm spring in oil bath

Final Drive Belt (final drive)

Gearbox 6-speed

Primary Drive Chain, 34/46 ratio primary drive

Suspension - Front Telescopic fork

Suspension - Rear Twin shocks

Rake 26.0°

Trail 170 mm / 6.7 in.

Instrumentation Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-spe

Lighting system High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

Brakes - Front Double disc. ABS. 4-piston

Brakes - Rear Single disc. ABS. 4-piston

Rims Enforcer II Cast Aluminum

Tyres - Front 130/60-B19

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
