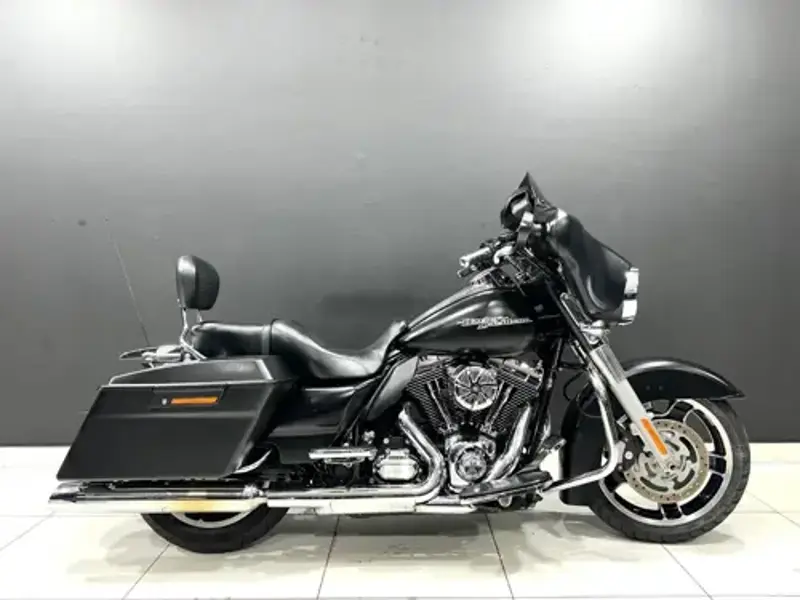

2013 Harley-Davidson Street Glide Specifications

Name: 2013 Harley-Davidson Street Glide
Brand: Harley-Davidson

Touring • Specs last verified 13 July 2026

No images available

Tap to enlarge

2013 Harley-Davidson Street Glide Overview

The 2013 Harley-Davidson Street Glide is a touring motorcycle built around 1687.97 cc of displacement. Under the tank sits a V2, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 9.6:1. The bore and stroke measures 98.4 x 111.3 mm. 2013 Harley-Davidson Street Glide delivers 135.60 Nm @ 3250 of torque. The factory-quoted top speed stands at 45 km/h, making it a capable performer in its class. From a practical standpoint, the 2013 Street Glide tips the scales at 367.9 kg, carries a 22.71-litre fuel tank, offers a seat height of 663 mm and spans a 1,613 mm wheelbase. That's roughly 43.8 kg heavier than the average touring motorcycle in our database. Scroll down for the complete 2013 Harley-Davidson Street Glide spec sheet covering every technical detail from suspension travel to tyre sizes.

2013 Street Glide - Pros & Cons

Strengths

Fuel injection: The fuel injection system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.
Accessible seat height: At 663 mm, the seat height is approachable for a wide range of rider heights and builds confidence in low-speed manoeuvring.
Large fuel range: The 22.71-litre tank is generously sized, translating to extended range between stops - ideal for touring or longer commutes.
Low-maintenance final drive: Belt final drive means no chain to clean, lube or adjust - meaningfully less routine maintenance than a chain-driven equivalent.

Considerations

Age-related wear: As with any used Street Glide, a thorough pre-purchase inspection covering consumables, service history and tyres is always recommended.

Wear Points & Servicing Notes

Fuelling & injector care

Fuelling comes from fuel injection. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.

Valve clearance checks

Double Overhead Cams/Twin Cam (DOHC) valve actuation on the Street Glide means clearances should be checked at the manufacturer's specified interval - they can tighten as mileage accumulates, and a light top-end tick is usually the first sign.

Brake disc and pad wear

The Double disc. 4-piston front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.

Suspension condition on used examples

Up front, the Street Glide runs Independent coil springs and hydraulic dampers and Independent coil springs and hydraulic dampers at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.

Final drive maintenance

Final drive is by belt - lower maintenance than chain with no lubrication needed, but tension and tooth wear should still be checked at service intervals.

Handling the weight at a standstill

At 367.9 kg, the Street Glide is a substantial machine - low-speed manoeuvring in car parks takes more physical effort than on a lighter bike, though the weight disappears once rolling.

Street Glide - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2013 Harley-Davidson Street Glide, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained Street Glide should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any Street Glide. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. The sump holds 3.80 litres, so budget for that volume of quality motorcycle-specific engine oil. Always use the correct viscosity grade as specified in the owner's manual.

Fuel system care

The Street Glide's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.

Valve clearance service

Check that valve clearances have been adjusted at the correct intervals on any used Street Glide. A bike with clearances out of spec doesn't always feel obviously wrong - but tight clearances accelerate valve seat wear. Ask for service documentation proving it's been done.

2013 Harley-Davidson Street Glide - Frequently Asked Questions

What engine does the 2013 Harley-Davidson Street Glide have?

The 2013 Harley-Davidson Street Glide uses a V2, four-stroke engine with 1687.97 cc of displacement.

What is the top speed of the 2013 Harley-Davidson Street Glide?

The 2013 Harley-Davidson Street Glide has a factory-quoted top speed of 45 km/h. Real-world speeds vary depending on rider weight, conditions and state of tune.

How much does the 2013 Harley-Davidson Street Glide weigh?

The 2013 Harley-Davidson Street Glide weighs 367.9 kg. This is the manufacturer's wet figure.

How much power does the 2013 Harley-Davidson Street Glide make?

The 2013 Harley-Davidson Street Glide produces 135.60 Nm @ 3250 of torque.

What is the fuel tank capacity of the 2013 Harley-Davidson Street Glide?

The 2013 Harley-Davidson Street Glide has a 22.71-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 378-454 km between stops.

Is the 2013 Harley-Davidson Street Glide suitable for shorter riders?

The 2013 Harley-Davidson Street Glide has a seat height of 663 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2013 Harley-Davidson Street Glide have?

The 2013 Harley-Davidson Street Glide uses Double disc. 4-piston at the front and Single disc. 2-piston at the rear.

What tyre sizes does the 2013 Harley-Davidson Street Glide use?

The 2013 Harley-Davidson Street Glide runs 130/70-BW18 front and 180/65-BW16 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

How much oil does the 2013 Harley-Davidson Street Glide take?

The 2013 Harley-Davidson Street Glide takes 3.80 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.

Harley-Davidson Street Glide Spec Evolution

The Harley-Davidson Street Glide was produced across 11 model years (2013-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2013	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023
Wet Weight	367.9 kg / 811.0 lbs	367.9 kg / 811.0 lbs	367.9 kg / 811.0 lbs	371.0 kg / 817.9 lbs	371.0 kg / 817.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs	376.0 kg / 828.9 lbs
Dry Weight	355.2 kg / 783.0 lbs	355.2 kg / 783.0 lbs	355.2 kg / 783.0 lbs	353 kg / 778.2 lbs	353 kg / 778.2 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs	361 kg / 795.9 lbs
Engine Detail	Twin Cam 103? with Integrated Oil-Cooler	Twin Cam 103? with Integrated Oil-Cooler	Twin Cam 103? with Integrated Oil-Cooler	Integrated Oil-Cooler	Milwaukee-Eight? 107	Milwaukee-Eight 107	Milwaukee-Eight 107	Milwaukee-Eight 107	Milwaukee-Eight 107	Milwaukee-Eight 107	Milwaukee-Eight 107 engine
Seat Height	663 mm / 26.1 in.	663 mm / 26.1 in.	663 mm / 26.1 in.	715 mm / 28.1 in.	715 mm / 28.1 in.	715 mm / 28.1 in.	715 mm / 28.1 in.	663 mm / 26.1 in.	663 mm / 26.1 in.	663 mm / 26.1 in.	663 mm / 26.1 in.
Fuel Capacity	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 gallons	22.71 litres / 6.00 US gallons	22.71 litres / 6.00 US gallons	22.71 litres / 6.00 US gallons	22.71 litres / 6.00 US gallons	22.71 litres / 6.00 US gallons
Bore x Stroke (mm)	98.4 x 111.3 mm	98.4 x 111.3 mm	98.4 x 111.3 mm	98.4 x 111.3 mm	98.4 x 111.3 mm	100.0 x 111.1 mm	100.0 x 111.0 mm	100.0 x 111.0 mm	99.8 x 111.1 mm	99.8 x 111.1 mm	99.8 x 111.1 mm
CO2	129.9 CO	129.9 CO	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)	136.9 CO2 g/km. (CO2 - Carbon dioxide emission)	136.9 CO2 g/km. (CO2 - Carbon dioxide emission)	126.9 CO2 g/km. (CO2 - Carbon dioxide emission)	121.3 CO2 g/km. (CO2 - Carbon dioxide emission)	126.9 CO2 g/km. (CO2 - Carbon dioxide emission)	126.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Comments	Windshield.	Windshield.	Windshield. Cruse control.	Windshield. Cruse control.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment.	Windshield. Cruise control. Infotainment. USB. Bluetooth.	Windshield. Cruise control. Security system. Infotainment. USB. Bluetooth.

Key Specifications

Engine

V2, four-stroke

Power

Not published by manufacturer

Torque

135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250

Top Speed

45.0 km/h / 28.0 mph

Weight

367.9 kg / 811.0 lbs

Fuel Capacity

22.71 litres / 6.00 gallons

Full 2013 Harley-Davidson Street Glide Specifications

Comments Windshield.

Colours Chrome Yellow Pearl, Black Denim, Midnight Pearl, Ember Red Sunglo, Vivid Black

Ground Clearance (mm) 119 mm

Ground Clearance (in.) 4.7 inches

Seat Height 663 mm / 26.1 in.

Wheelbase 1,613 mm / 63.5 in.

Height 1,400 mm / 55.1 in.

Length 2,413 mm / 95.0 in.

Width 1,600 mm / 63.0 in.

Oil Capacity (Quarts) 0.25 quarts

Oil Capacity (l) 3.80 litres

Dry Weight 355.2 kg / 783.0 lbs

Fuel Capacity 22.71 litres / 6.00 gallons

Wet Weight 367.9 kg / 811.0 lbs

Top Speed 45.0 km/h / 28.0 mph

Max Torque 135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250

Fuel Control Double Overhead Cams/Twin Cam (DOHC)

Engine Type V2, four-stroke

Displacement (ci) 103.00 cubic inches

Displacement (cc) 1687.97 cc

Bore x Stroke (in,) 3.9 x 4.4 inches

Bore x Stroke (mm) 98.4 x 111.3 mm

CO2 129.9 CO

Engine Detail Twin Cam 103? with Integrated Oil-Cooler

Fuel System Injection. ESPFI

Compression Ratio 9.6:1

Engine Lubrication Dry sump

Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Fuel Consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Starter Electric

Valve System 4

Clutch Multi-plate with diaphragm spring in oil bath

Final Drive Belt

Gearbox 6-speed

Primary Drive Chain, 34/46 ratio primary drive

Suspension - Front Independent coil springs and hydraulic dampers

Suspension - Rear Independent coil springs and hydraulic dampers

Rake 26.0°

Trail 170 mm / 6.7 in.

Instrumentation Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6

Lighting system High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

Brakes - Front Double disc. 4-piston

Brakes - Rear Single disc. 2-piston

Rims Black, Slotted 5-Spoke Cast Aluminum

Tyres - Front 130/70-BW18

Tyres - Rear 180/65-BW16

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
