Key Specifications
Torque
135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250
Top Speed
45.0 km/h / 28.0 mph
Weight
367.9 kg / 811.0 lbs
Fuel Capacity
22.71 litres / 6.00 gallons
Advertisement

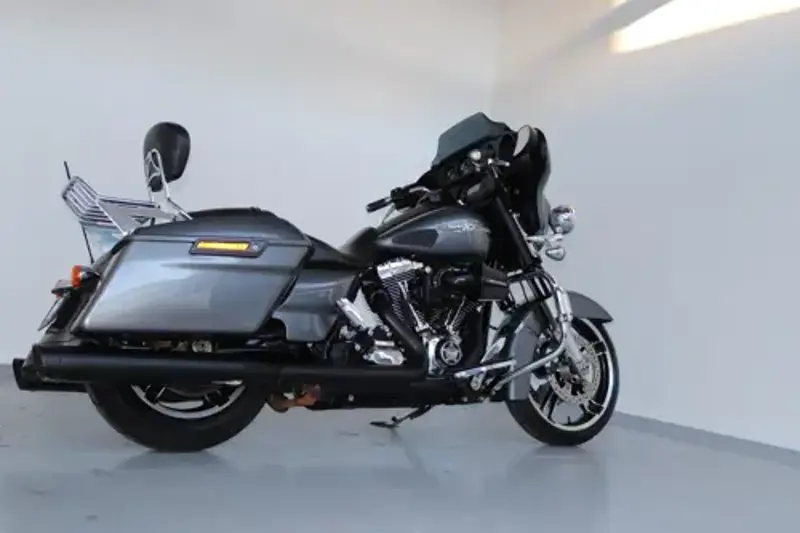

Full 2014 Harley-Davidson Street Glide Specifications
Comments
Windshield.
Colours
Daytona Blue Pearl, Black Denim, Charcoal Pearl, Amber Whiskey, Brilliant Silver Pearl, Big Blue Pearl, Vivid Black, Exclusive - Vivid Black with Blue - Peace Officer, Exclusive - Dark Peace Officer Blue with Blue - Peace Officer, Exclusive - Vivid Black
Storage
Saddle bags
Ground Clearance (mm)
119 mm
Ground Clearance (in.)
4.7 inches
Seat Height
663 mm / 26.1 in.
Wheelbase
1,613 mm / 63.5 in.
Height
1,005 mm / 39.6 in.
Length
2,413 mm / 95.0 in.
Width
625 mm / 24.6 in.
Oil Capacity (Quarts)
0.25 quarts
Oil Capacity (l)
3.80 litres
Dry Weight
355.2 kg / 783.0 lbs
Fuel Capacity
22.71 litres / 6.00 gallons
Wet Weight
367.9 kg / 811.0 lbs
Engine Type
V2, four-stroke
Displacement (ci)
103.00 cubic inches
Displacement (cc)
1687.97 cc
CO2
129.9 CO
Bore x Stroke (mm)
98.4 x 111.3 mm
Bore x Stroke (in,)
3.9 x 4.4 inches
Engine Detail
Twin Cam 103? with Integrated Oil-Cooler
Fuel System
Injection. ESPFI
Compression Ratio
9.6:1
Emissions
Zero emission
Engine Lubrication
Dry sump
Exhaust
Chrome, 2-1-2 dual exhaust with tapered mufflers
Fuel Consumption
5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Starter
Electric
Clutch
Multi-plate with diaphragm spring in oil bath
Final Drive
Belt
Gearbox
6-speed
Primary Drive
Chain, 34/46 ratio primary drive
Frame Type
Steel tube
Suspension - Front
Dual Hydraulic Shock Absorber
Suspension - Rear
Single Hydraulic Shock Absorber
Rake
26.0°
Trail
170 mm / 6.7 in.
Instrumentation
Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6
Lighting system
High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
Brakes - Front
Double disc. 4-piston
Brakes - Rear
Single disc. 2-piston
Rims
Black, Slotted 5-Spoke Cast Aluminum
Tyres - Front
130/70-BW18
Tyres - Rear
180/65-BW16
