Key Specifications
Torque
130.00 Nm (13.3 kgf-m or 95.9 ft.lbs) @ 3000 Revolutions
Weight
341.1 kg / 752.0 lbs
Fuel Capacity
18.93 litres / 5.00 gallons
Advertisement

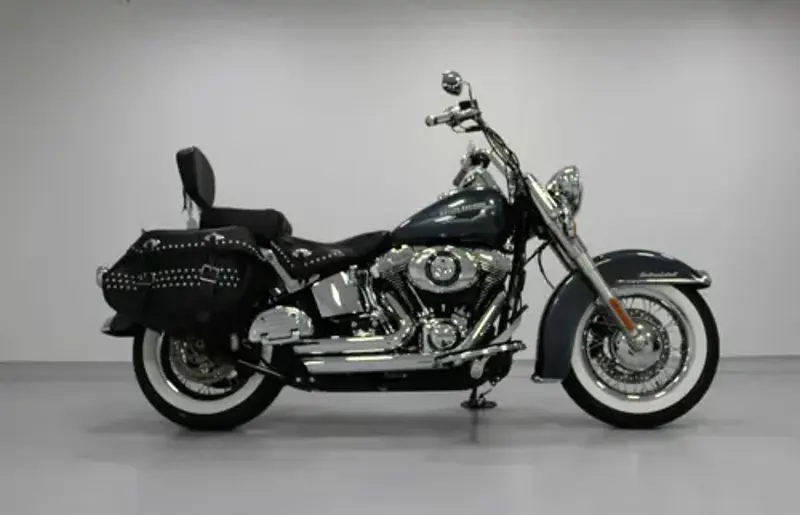

Full 2015 Harley-Davidson Heritage Softail Classic Specifications
Comments
Windshield
Colours
Black Magic, Amber Whiskey/Charcoal Pearl, Mysterious Red Sunglo/Blackend Cayenne Sunglo, Superior Blue, Brilliant Silver Pearl, Morocco Gold Pearl, Vivid Black
Ground Clearance (in.)
5.2 inches
Ground Clearance (mm)
131 mm
Storage
Saddle bags
Seat Height
690 mm / 27.2 in.
Wheelbase
1,638 mm / 64.5 in.
Length
2,405 mm / 94.7 in.
Oil Capacity (l)
3.30 litres
Oil Capacity (Quarts)
0.22 quarts
Dry Weight
326.1 kg / 719.0 lbs
Fuel Capacity
18.93 litres / 5.00 gallons
Wet Weight
341.1 kg / 752.0 lbs
Bore x Stroke (in,)
3.9 x 4.4 inches
Bore x Stroke (mm)
98.4 x 111.1 mm
CO2
129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Engine Type
V2, four-stroke
Engine Detail
Air-cooled, Twin Cam 103B?
Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio
9.6:1
Exhaust
Chrome, staggered shorty exhaust with dual mufflers
Fuel Consumption
5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Starter
Electric
Clutch
Multi-plate with diaphragm spring in oil bath
Final Drive
Belt
Gearbox
6-speed
Rake
31.0°
Trail
147 mm / 5.8 in.
Instrumentation
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat
Lighting system
High beam, front fender running lights, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
Brakes - Front
Single disc. ABS. 4-piston
Brakes - Rear
Single disc. 2-piston
Rims
Steellaced, optional whitewall tires
Tyres - Front
MT90-B16
Tyres - Rear
150/80-B16
