2013 Harley-Davidson Heritage Softail Classic Specifications

Name: 2013 Harley-Davidson Heritage Softail Classic
Brand: Harley-Davidson

Touring • Specs last verified 13 July 2026

No images available

Tap to enlarge

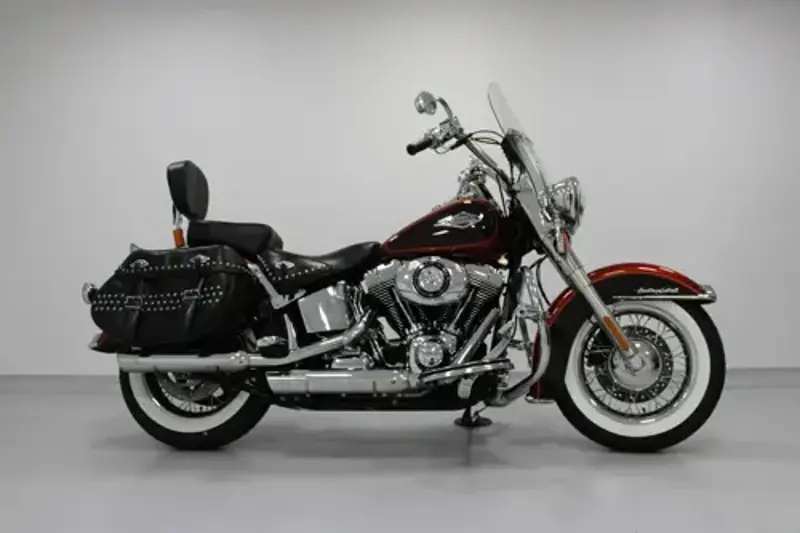

2013 Harley-Davidson Heritage Softail Classic Overview

The 2013 Harley-Davidson Heritage Softail Classic is a touring motorcycle built around 1687.97 cc of displacement. Under the tank sits a V2, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 9.6:1. The bore and stroke measures 98.4 x 111.1 mm. 2013 Harley-Davidson Heritage Softail Classic delivers 131.40 Nm @ 3000 of torque. The factory-quoted top speed stands at 45 km/h, making it a capable performer in its class. From a practical standpoint, the 2013 Heritage Softail Classic tips the scales at 341.1 kg, carries a 18.93-litre fuel tank, offers a seat height of 648 mm and spans a 1,638 mm wheelbase. That's roughly 17 kg heavier than the average touring motorcycle in our database. Scroll down for the complete 2013 Harley-Davidson Heritage Softail Classic spec sheet covering every technical detail from suspension travel to tyre sizes.

2013 Heritage Softail Classic - Pros & Cons

Strengths

Fuel injection: The fuel injection system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.
Accessible seat height: At 648 mm, the seat height is approachable for a wide range of rider heights and builds confidence in low-speed manoeuvring.
Large fuel range: The 18.93-litre tank is generously sized, translating to extended range between stops - ideal for touring or longer commutes.
Low-maintenance final drive: Belt final drive means no chain to clean, lube or adjust - meaningfully less routine maintenance than a chain-driven equivalent.

Considerations

Age-related wear: As with any used Heritage Softail Classic, a thorough pre-purchase inspection covering consumables, service history and tyres is always recommended.

Wear Points & Servicing Notes

Fuelling & injector care

Fuelling comes from fuel injection. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.

Valve clearance checks

Double Overhead Cams/Twin Cam (DOHC) valve actuation on the Heritage Softail Classic means clearances should be checked at the manufacturer's specified interval - they can tighten as mileage accumulates, and a light top-end tick is usually the first sign.

Brake disc and pad wear

The Single disc. 4-piston front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.

Suspension condition on used examples

Up front, the Heritage Softail Classic runs Independent coil springs and hydraulic dampers and Independent coil springs and hydraulic dampers at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.

Final drive maintenance

Final drive is by belt - lower maintenance than chain with no lubrication needed, but tension and tooth wear should still be checked at service intervals.

Handling the weight at a standstill

At 341.1 kg, the Heritage Softail Classic is a substantial machine - low-speed manoeuvring in car parks takes more physical effort than on a lighter bike, though the weight disappears once rolling.

Heritage Softail Classic - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2013 Harley-Davidson Heritage Softail Classic, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained Heritage Softail Classic should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any Heritage Softail Classic. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. The sump holds 3.30 litres, so budget for that volume of quality motorcycle-specific engine oil. Always use the correct viscosity grade as specified in the owner's manual.

Fuel system care

The Heritage Softail Classic's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.

Valve clearance service

Check that valve clearances have been adjusted at the correct intervals on any used Heritage Softail Classic. A bike with clearances out of spec doesn't always feel obviously wrong - but tight clearances accelerate valve seat wear. Ask for service documentation proving it's been done.

2013 Harley-Davidson Heritage Softail Classic - Frequently Asked Questions

What engine does the 2013 Harley-Davidson Heritage Softail Classic have?

The 2013 Harley-Davidson Heritage Softail Classic uses a V2, four-stroke engine with 1687.97 cc of displacement.

What is the top speed of the 2013 Harley-Davidson Heritage Softail Classic?

The 2013 Harley-Davidson Heritage Softail Classic has a factory-quoted top speed of 45 km/h. Real-world speeds vary depending on rider weight, conditions and state of tune.

How much does the 2013 Harley-Davidson Heritage Softail Classic weigh?

The 2013 Harley-Davidson Heritage Softail Classic weighs 341.1 kg. This is the manufacturer's wet figure.

How much power does the 2013 Harley-Davidson Heritage Softail Classic make?

The 2013 Harley-Davidson Heritage Softail Classic produces 131.40 Nm @ 3000 of torque.

What is the fuel tank capacity of the 2013 Harley-Davidson Heritage Softail Classic?

The 2013 Harley-Davidson Heritage Softail Classic has a 18.93-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 315-378 km between stops.

Is the 2013 Harley-Davidson Heritage Softail Classic suitable for shorter riders?

The 2013 Harley-Davidson Heritage Softail Classic has a seat height of 648 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2013 Harley-Davidson Heritage Softail Classic have?

The 2013 Harley-Davidson Heritage Softail Classic uses Single disc. 4-piston at the front and Single disc. 2-piston at the rear.

What tyre sizes does the 2013 Harley-Davidson Heritage Softail Classic use?

The 2013 Harley-Davidson Heritage Softail Classic runs MT90-B16 front and 150/80-B16 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

How much oil does the 2013 Harley-Davidson Heritage Softail Classic take?

The 2013 Harley-Davidson Heritage Softail Classic takes 3.30 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.

Harley-Davidson Heritage Softail Classic Spec Evolution

The Harley-Davidson Heritage Softail Classic was produced across 7 model years (1996-2017). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	1996	1999	2013	2014	2015	2016	2017
Wet Weight	-	-	341.1 kg / 752.0 lbs	341.1 kg / 752.0 lbs	341.1 kg / 752.0 lbs	347.0 kg / 765.0 lbs	347.0 kg / 765.0 lbs
Dry Weight	287 kg / 632.7 lbs	316.8 kg / 698.4 lbs	326.1 kg / 719.0 lbs	326.1 kg / 719.0 lbs	326.1 kg / 719.0 lbs	333 kg / 734.1 lbs	333 kg / 734.1 lbs
Engine Detail	-	-	Air-cooled, Twin Cam 103B?	Air-cooled, Twin Cam 103B?	Air-cooled, Twin Cam 103B?	-	High Output Twin Cam 103B
Engine Type	V2	V2	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke
Top Speed	-	150.0 km/h / 93.2 mph	45.0 km/h / 28.0 mph	45.0 km/h / 28.0 mph	-	-	-
Seat Height	705 mm / 27.8 in.	-	648 mm / 25.5 in.	648 mm / 25.5 in.	690 mm / 27.2 in.	690 mm / 27.2 in.	690 mm / 27.2 in.
Fuel Capacity	-	15.90 litres / 4.20 gallons	18.93 litres / 5.00 gallons	18.93 litres / 5.00 gallons	18.93 litres / 5.00 gallons	18.93 litres / 5.00 gallons	18.93 litres / 5.00 gallons
Ground Clearance (mm)	-	-	130 mm	130 mm	131 mm	131 mm	131 mm

Key Specifications

Engine

V2, four-stroke

Power

Not published by manufacturer

Torque

131.40 Nm (13.4 kgf-m or 96.9 ft.lbs) @ 3000

Top Speed

45.0 km/h / 28.0 mph

Weight

341.1 kg / 752.0 lbs

Fuel Capacity

18.93 litres / 5.00 gallons

Full 2013 Harley-Davidson Heritage Softail Classic Specifications

Comments Windshield

Colours Anniversary Vintage Bronze/Anniversary Vintage Black, Midnight Pearl/Brilliant Silver Pearl, White Hot Pearl, Big Blue Pearl, Vivid Black, custom colors.

Ground Clearance (mm) 130 mm

Ground Clearance (in.) 5.1 inches

Seat Height 648 mm / 25.5 in.

Wheelbase 1,638 mm / 64.5 in.

Height 1,400 mm / 55.1 in.

Length 2,400 mm / 94.5 in.

Width 1,600 mm / 63.0 in.

Oil Capacity (Quarts) 0.22 quarts

Oil Capacity (l) 3.30 litres

Dry Weight 326.1 kg / 719.0 lbs

Fuel Capacity 18.93 litres / 5.00 gallons

Wet Weight 341.1 kg / 752.0 lbs

Top Speed 45.0 km/h / 28.0 mph

Max Torque 131.40 Nm (13.4 kgf-m or 96.9 ft.lbs) @ 3000

Fuel Control Double Overhead Cams/Twin Cam (DOHC)

Engine Type V2, four-stroke

Displacement (ci) 103.00 cubic inches

Displacement (cc) 1687.97 cc

CO2 129.9 CO

Bore x Stroke (mm) 98.4 x 111.1 mm

Bore x Stroke (in,) 3.9 x 4.4 inches

Engine Detail Air-cooled, Twin Cam 103B?

Fuel System Injection. Electronic Sequential Port Fuel Injection (ESPFI)

Compression Ratio 9.6:1

Exhaust Chrome, staggered shorty exhaust with dual mufflers

Fuel Consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Starter Electric

Valve System 4

Clutch Multi-plate with diaphragm spring in oil bath

Final Drive Belt

Gearbox 6-speed

Suspension - Front Independent coil springs and hydraulic dampers

Suspension - Rear Independent coil springs and hydraulic dampers

Rake 31.0°

Trail 147 mm / 5.8 in.

Instrumentation Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat

Lighting system High beam, front fender running lights, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

Brakes - Front Single disc. 4-piston

Brakes - Rear Single disc. 2-piston

Rims Steel Laced

Tyres - Front MT90-B16

Tyres - Rear 150/80-B16

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
