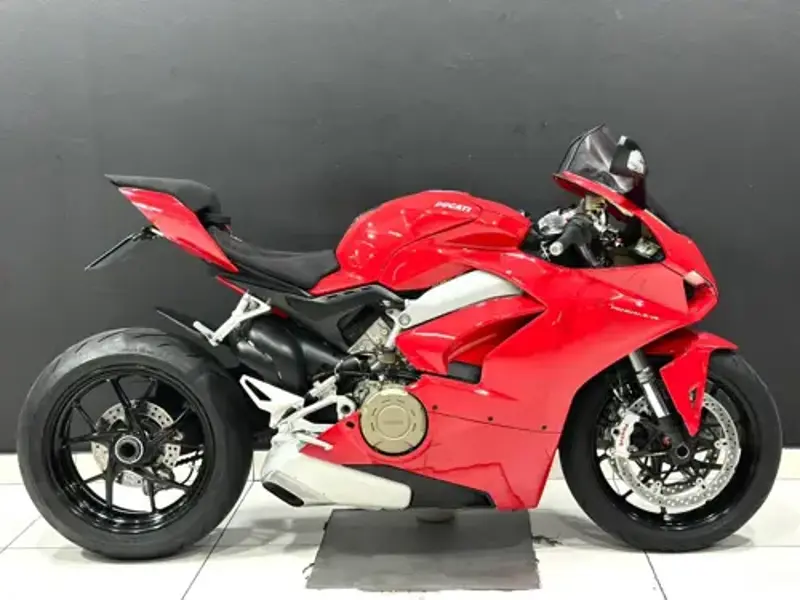

2018 Ducati Panigale V4 Specifications

Name: 2018 Ducati Panigale V4
Brand: Ducati

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2018 Ducati Panigale V4 Overview

The 2018 Ducati Panigale V4 is a sport motorcycle built around 1103 cc of displacement. Under the tank sits a Four stroke, Desmosedici Stradale 90° V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder engine, a compression ratio of 14.0:1. From a practical standpoint, the 2018 Panigale V4 tips the scales at 195 kg, carries a 16-litre fuel tank, offers a seat height of 830 mm and spans a 1469 mm wheelbase. Scroll down for the complete 2018 Ducati Panigale V4 spec sheet covering every technical detail from suspension travel to tyre sizes.

2018 Ducati Panigale V4 compared with other bikes in the Sport category

Here is how the 2018 Ducati Panigale V4 stacks up against other bikes in the Sport category in our database. Each model counts once, using the model year closest to this one, and the comparison covers up to 2003 models.

Engine displacement of 1103 cc is larger than that of 1775 of the other 2002 bikes in the Sport category.
Only 208 of the other 1606 bikes in the Sport category have a taller seat height than the 830 mm of the Panigale V4.
Narrowing the field to the 687 models within five model years of it, the engine displacement of 1103 cc is larger than that of 591 of the other 686.

2018 Panigale V4 - Pros & Cons

Strengths

Fuel injection: The fuel injectionsystem system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.
Strong front braking: The disc front brake gives excellent stopping power and responds well to aftermarket braided lines.
ABS fitted: Anti-lock braking is standard, adding a real margin of safety on wet roads or in an emergency stop.

Considerations

Tall seat height: The 830 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.

Wear Points & Servicing Notes

Cooling system servicing

The Liquid cooled system on the Panigale V4 needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.

Fuelling & injector care

Fuelling comes from fuel injectionsystem. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.

Brake disc and pad wear

The disc front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.

Suspension condition on used examples

Up front, the Panigale V4 runs 43mm fully adjustable Showa Big Piston Forks and and Sachs steering damper and Fully adjustable Sachs monoshock at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.

Final drive maintenance

Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.

Frame & chassis check

The frame is Aluminum alloy "Front Frame" - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.

Panigale V4 - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2018 Ducati Panigale V4 with its 1103 cc sport, start with the basics: check the service book for oil change frequency, inspect the drivetrain for wear, and look for oil seepage around the engine casings and rocker covers. This model runs chain final drive, so check chain slack and sprocket tooth profile specifically - a worn sprocket is a cheaper fix now than after it's chewed up the next chain. Now 8 years old, this sport is as likely to show age-related wear (perished rubber, seized fasteners, degraded seals) as mileage-related wear. A cold start test is invaluable - a well-maintained Panigale V4 should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task for the Panigale V4's 1103 cc four stroke, desmosedici stradale 90° v4, rearward-rotating crankshaft, 4 desmodromically actuated valves per cylinder. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. With a 14.0:1 compression ratio, running the octane grade specified in the manual matters more than on a lower-compression engine. Always use the correct viscosity grade as specified in the owner's manual.

Fuel system care

The Panigale V4's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.

2018 Ducati Panigale V4 - Frequently Asked Questions

What engine does the 2018 Ducati Panigale V4 have?

The 2018 Ducati Panigale V4 uses a Four stroke, Desmosedici Stradale 90° V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder engine with 1103 cc of displacement. It is liquid cooled.

How much does the 2018 Ducati Panigale V4 weigh?

The 2018 Ducati Panigale V4 weighs 195 kg. This is the manufacturer's wet figure.

What is the fuel tank capacity of the 2018 Ducati Panigale V4?

The 2018 Ducati Panigale V4 has a 16-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 266-320 km between stops.

Is the 2018 Ducati Panigale V4 suitable for shorter riders?

The 2018 Ducati Panigale V4 has a seat height of 830 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2018 Ducati Panigale V4 have?

The 2018 Ducati Panigale V4 uses 2x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema at the front and single 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO at the rear.

What tyre sizes does the 2018 Ducati Panigale V4 use?

The 2018 Ducati Panigale V4 runs 120/70 ZR17 Pirelli Diablo Supercorsa SP front and 200/60 ZR17 Pirelli Diablo Supercorsa SP rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2018 Ducati Panigale V4 have?

The 2018 Ducati Panigale V4 is fitted with a 6 Speed with Ducati Quick Shift transmission.

Ducati Panigale V4 Spec Evolution

The Ducati Panigale V4 was produced across 4 model years (2018-2025). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2018	2020	2022	2025
Wet Weight	195 kg / 430 lbs	198 kg / 436 lbs	198.5 kg / 437 lbs	V4: 191 kg / 421 lbs V4S: 187kg / 412 lbs
Engine Detail	Four stroke, Desmosedici Stradale 90° V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder	-	-	Four stroke, Desmosedici Stradale 90° V4, counter-rotating crankshaft, Desmodromic, 4 valves per cylinder
Seat Height	830 mm / 32.4 in	-	-	850 mm / 33.5 in
Fuel Capacity	16 Litres / 4.3 US gal / 3.9 Imp gal	-	17 Litres / 4.49 US gal	17 Litres / 4.5 US gal
Wheelbase	1469 mm / 57,8 in	-	1469 mm / 57.8 in	1485 mm / 58.5 in
Brakes - Front	2x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema (M4.30) 4-piston callipers with Bosch Cornering ABS EVO	-	-	2 x 330mm discs, Brembo Hypure 4-piston calipers
Brakes - Rear	Single 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO	-	Single 245 mm disc, 2-piston calliper	-
Suspension - Front	43mm fully adjustable Showa Big Piston Forks and and Sachs steering damper	-	-	Fully adjustable Showa BPF fork, 43mm chromed inner tubes

Key Specifications

Engine

Four stroke, Desmosedici Stradale 90° V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder

Power

Not recorded

Torque

Not recorded

Top Speed

Not recorded

Weight

195 kg / 430 lbs

Fuel Capacity

16 Litres / 4.3 US gal / 3.9 Imp gal

Full 2018 Ducati Panigale V4 Specifications

Year 2018

Seat Height 830 mm / 32.4 in

Wheelbase 1469 mm / 57,8 in

Dry Weight 174 kg / 384 lbs

Fuel Capacity 16 Litres / 4.3 US gal / 3.9 Imp gal

Wet Weight 195 kg / 430 lbs

Displacement 1103 cc / 67.3 cu in

Engine Detail Four stroke, Desmosedici Stradale 90° V4, rearward-rotating crankshaft, 4 Desmodromically actuated valves per cylinder

Bore x Stroke 81 x 53.5 mm

Compression Ratio 14.0:1

Cooling System Liquid cooled

Exhaust 4-2-1-2 system, with 2 catalytic converters and 2 lambda probes

Fuel Induction Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system

Starter Electric

Clutch Hydraulically controlled slipper and self-servo wet multiplate clutch

Final Drive Chain; Front sprocket 16; Rear sprocket 41

Gear Ratios 1=38/14 2=36/17 3=33/19 4=32/21 5=30/22 6=30/24

Primary Drive Straight cut gears; Ratio 1.80:1

Transmission / Drive 6 Speed with Ducati Quick Shift (DQS) up/down EVO

Frame Type Aluminum alloy "Front Frame"

Suspension - Front 43mm fully adjustable Showa Big Piston Forks and and Sachs steering damper

Suspension - Rear Fully adjustable Sachs monoshock

Rake 24.5°

Seat Two seater configuration kit

Trail 100 mm / 3.9 in

Wheel Travel - Front 120 mm / 4.7 in

Wheel Travel - Rear 130 mm / 5.1 in

Additional Equipment Passenger seat and footpegs kit

Equipment / Features Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO, Full LED lighting with Daytime Running Light (DRL), Sachs steering damper, Quick adjustment buttons, Auto-off indicators

Optional Equipment Ducati Data Analyser+ (DDA+) with GPS module, Ducati Multimedia System (DMS) and anti-theft

Safety Equipment Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO, Auto tyre calibration

Instrumentation Last generation digital unit with 5" TFT colour display

Brakes - Front 2x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema (M4.30) 4-piston callipers with Bosch Cornering ABS EVO

Brakes - Rear Single 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO

Tyres - Front 120/70 ZR17 Pirelli Diablo Supercorsa SP

Tyres - Rear 200/60 ZR17 Pirelli Diablo Supercorsa SP

Wheels 3-spokes cast aluminum

Wheels - Front 3.50 x 17

Wheels - Rear 6.00 x 17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
