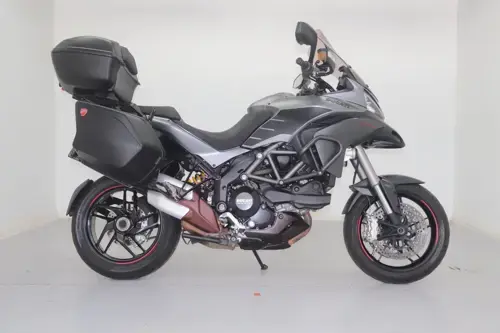

Ducati Multistrada 1200S Granturismo Specs
2013 - 2014
• 2 variants
The Ducati Multistrada 1200S Granturismo is a touring motorcycle produced from 2013 to 2014 across 2 variants. It is powered by a four stroke, 90° °l° twin cylinder, dohc, desmodromic 4 valves per cylinder displacing 1198.40 cc. Peak power output is 150 hp. Peak torque is 124.5 Nm.
About the Ducati Multistrada 1200S Granturismo
Documented here are the full technical specifications for the Ducati Multistrada 1200S Granturismo, a Touring motorcycle with a production run from 2013 to 2014. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.
Ducati Multistrada 1200S Granturismo by Year
Spec Evolution
How key specs changed across production years.
No numeric spec data available for this model.
|
Specification
|
2013
|
2014
|
|
Seat Height
|
850 mm / 33.5 in. | 850 mm / 33.4 in |
|
Dry Weight
|
217 kg / 478.4 lbs | 192 kg / 423 lbs ↓ |
|
Brakes - Front
|
Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. | 2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment |
|
Wheelbase
|
1,530 mm / 60.2 in. | 1530mm / 60.2 in ↑ |
|
Engine Detail
|
L-Twin cylinder | Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder |
|
Brakes - Rear
|
Single disc. Two-piston calipers. | Single 245 mm disc, 2-piston caliper |
|
Fuel Capacity
|
20.00 litres / 5.28 gallons | 20 Litres / 5.3 US gal / 4.4 Imp gal |
|
Suspension - Front
|
Sachs 48mm fully adjustable usd forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension | Sachs 48 mm fully adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension |
|
Suspension - Rear
|
Electronic compression and rebound damping adjustment. Electronic spring pre-load adjustment with DSS Aluminium single-sided swingarm. | Progressive linkage with fully adjustable Sachs monoshock. Electronic compression and rebound damping adjustment. Electronic spring preload with DSS aluminium single-sided swingarm |
|
Colours
|
Grey | Grey, red |
|
Clutch
|
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run. |
|
Final Drive
|
Chain | Chain #530, front sprocket 15; rear sprocket 40 |
|
Wet Weight
|
234.0 kg / 515.9 lbs | 220 kg / 485 lbs ↓ |
|
Tyres - Front
|
130/60-VR18 | 120/70 - ZR17 ↓ |
|
Tyres - Rear
|
240/40-VR18 | 190/55 - ZR17 ↓ |
|
Rake
|
25.0° | 25° |
|
Trail
|
110 mm / 4.3 in. | 110 mm / 4.33 in |
|
Max Torque
|
124.50 Nm (12.7 kgf-m or 91.8 ft.lbs) @ 7500 | 124.5 Nm / 12.7 kgm / 91.8 lb-ft @ 7500rpm |
|
Power-to-Weight Ratio
|
0.6816 HP/kg | 0.6912 HP/kg |
