Key Specifications
Engine
Four stroke, 90°°L°twin cylinder, DOHC, desmodromic 4 valve per cylinder.
Power
103 kW / 140 hp @ 10500 rpm
Torque
98 Nm / 10.0 kgf-m / 72.3 lb-ft @ 9750 rpm
Top Speed
261.2 km/h / 162.3 mph
Fuel Capacity
15.5 L / 4.1 US gal / 3.4 Imp gal
Advertisement

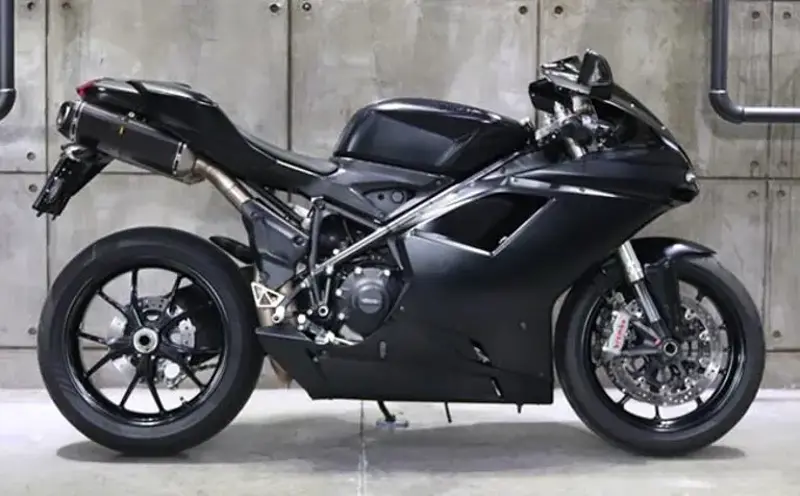

Full 2010 Ducati 848 EVO Specifications
Year
2010
Make Model
Ducati 848 EVO
Seat Height
830 mm / 32.6 in
Wheelbase
1430 mm / 56.3in
Dry Weight (kg)
168
Wet Weight (kg)
194
Dry Weight
168 kg / 370 lbs
Fuel Capacity
15.5 L / 4.1 US gal / 3.4 Imp gal
Wet Weight
194 kg / 428 lbs
Engine Detail
Four stroke, 90°°L°twin cylinder, DOHC, desmodromic 4 valve per cylinder.
Bore x Stroke
94 x 61.2mm
Compression Ratio
13.2:1
Cooling System
Liquid cooled
Exhaust
Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers
Fuel Induction
Marelli electronic fuel injection, elliptical throttle bodies
Ignition
Digital CD
Lubrication
Wet sump
Starter
Electric
Clutch
Wet multiplate with hydraulic control
Final Drive
Chain; front sprocket 15; rear sprocket 39
Gear Ratios
1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 23/24
Transmission / Drive
6 Speed
Frame Type
Tubular steel Trellis frame in ALS 450
Suspension - Front
Showa 43mm fully adjustable upside-down fork
Suspension - Rear
Progressive linkage with fully adjustable Ohlins monoshock. Aluminium single-sided swingarm
Rake
24.5°
Trail
103mm / 4.05 in
Wheel Travel - Front
127 mm / 5.0 in
Wheel Travel - Rear
120 mm / 4.7 in
Brakes - Front
2 x 320 mm Semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Brakes - Rear
Single 245 mm disc, 2 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheels - Front
5-spoke in light alloy 3.50 x 17
Wheels - Rear
5-spoke light alloy 5.50 x 17
