Key Specifications
Engine
Two cylinder boxer, four-stroke
Torque
143.0 Nm (14.6 kgf-m or 105.5 ft.lbs) @ 6500 Revolutions">RPM
Fuel Capacity
19.68 litres

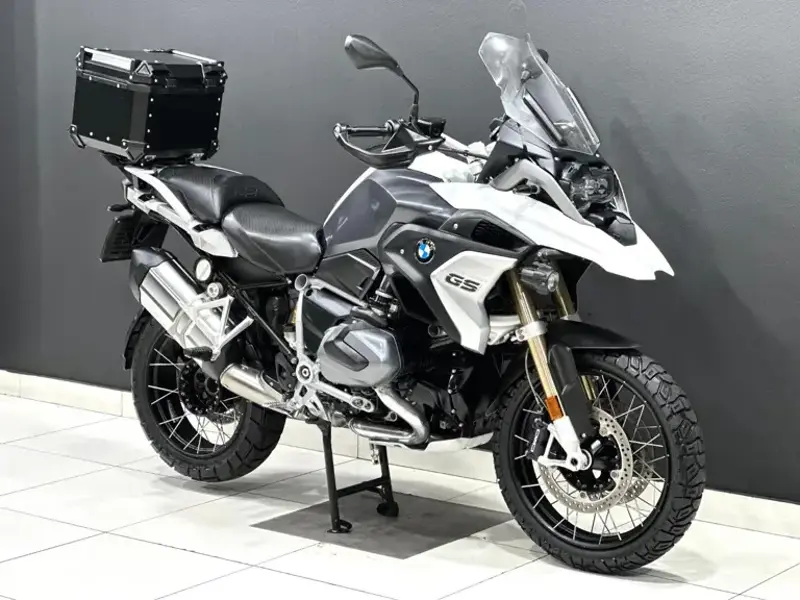

Full 2022 BMW R 1250GS Specifications
Comments
3 Ride Modes (ECO, Rain and Road). Traction Control.
Colours
Black Storm Metallic/Black/Agate Gray, Ice Grey, Light White/Racing Blue Metallic/Racing Red, Black/Yellow
Warranty
Up to 3-years or 36,000 miles
Width (mm)
953 mm
Width (in.)
37.5 inches
Wheelbase (mm)
1514 mm
Wheelbase (in.)
59.6 inches
Seat Heigth -Alternate (mm)
870 mm
Seat Heigth -Alternate (in.)
34.3 inches
Seat Height (mm)
850 mm
Seat Height (in.)
33.5 inches
Length (mm)
2207 mm
Length (in.)
86.9 inches
Height (mm)
1430 mm
Height (in.)
56.3 inches
Wet Weight (lbs.)
549.0 pounds
Wet Weight (kg)
249.0 kg
Oil Capacity (Quarts)
4.23 US quarts
Oil Capacity (l)
4.00 litres
Fuel Capacity (l)
19.68 litres
Fuel Capacity (gal.)
5.20 US gallons
Coolant Capacity
2.00 litres (0.53 US gallons)
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Two cylinder boxer, four-stroke
Displacement (ci)
76.52 cubic inches
Displacement (cc)
1254.0 cc
CO2
110.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
102.5 x 76.0 mm
Bore x Stroke (in,)
4.0 x 3.0 inches
Engine Detail
Balance shaft and variable engine timing system
Fuel System
Injection. Electronic intake pipe injection
Compression Ratio
12.5:1
Emissions
Regulated three-way catalytic converter, compliant with Euro 5 emission standard
Engine Lubrication
Dry sump
Fuel Consumption
4.75 litres/100 km (21.1 km/l or 49.52 mpg)
Idle Speed
1050 +/- 100 RPM
Starter
Electric
Valve System
4
Clutch
Wet clutch with an anti-hopping function, hydraulic activation
Final Drive
Shaft drive (cardan) (final drive)
Gearbox
6-speed
Primary Drive
Constant mesh
Fork Tube Size (in.)
1.5 inches
Fork Tube Size (mm)
37 mm
Trail (in.)
4.0 inches
Trail (mm)
102 mm
Wheel Travel - Front (in.)
7.5 inches
Wheel Travel - Front (mm)
190 mm
Wheel Travel - Rear (in.)
7.9 inches
Wheel Travel - Rear (mm)
200 mm
Frame Type
Two-section frame, front- and bolted on rear frame, load-bearing engine
Suspension - Front
BMW Motorrad Telelever; stanchion diameter 37 mm, central spring strut
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel.
Rake
25.7°
Instrumentation
TFT color display with connectivity
Lighting system
LED headlight
Brakes - Front
Double disc. ABS. Floating discs. Four-piston calipers.
Brakes - Rear
Single disc. ABS. Floating disc. Two-piston calipers.
Brake Fluid Type
DOT 4
Rims
Cast aluminium
Tyre Pressure - Front
36 PSI (2.5 Bar or 250 kPa)
Tyre Pressure - Rear
42 PSI (2.9 Bar or 290 kPa)
Tyres - Front
120/70-R19
