Key Specifications
Engine
Two cylinder boxer, four-stroke
Power
136 hp / 100 kW @ 7750 rpm
Torque
143 Nm / 105.4 lb-ft @ 6250 rpm
Fuel Capacity
20.00 litres

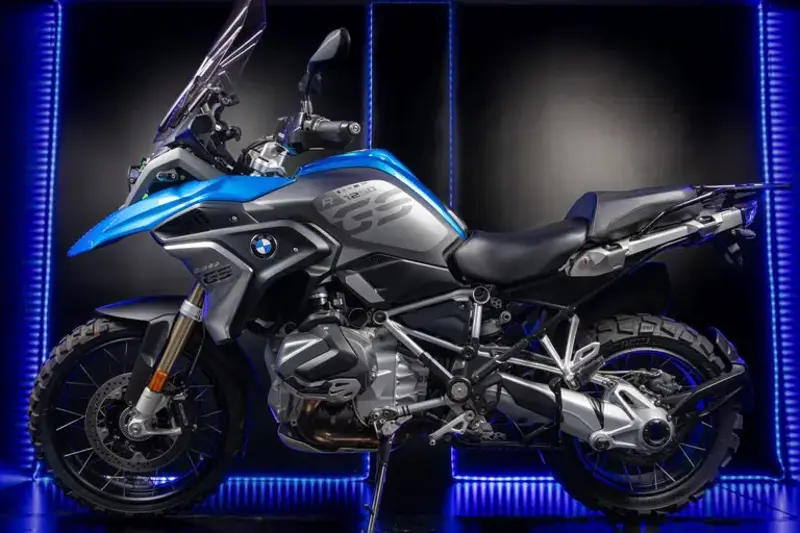

Full 2021 BMW R 1250GS Specifications
Year
2021
Colours
Black/Grey, Grey/White, White/Red/Blue, Black/Yellow
Make Model
BMW R 1250GS
Warranty
3 years
Ground Clearance (in.)
7.3 inches
Ground Clearance (mm)
185 mm
Height (in.)
56.3 inches
Height (mm)
1430 mm
Length (in.)
86.9 inches
Length (mm)
2207 mm
Seat Height (in.)
33.5 inches
Seat Height (mm)
850 mm
Seat Heigth -Alternate (in.)
34.3 inches
Seat Heigth -Alternate (mm)
870 mm
Wheelbase (in.)
60.0 inches
Wheelbase (mm)
1525 mm
Width (in.)
37.5 inches
Width (mm)
953 mm
Seat Height
850 mm to 870 mm / 33.5 in to 34.3 in 800 mm to 820 mm / 31.5 in to 32.3 in - Optional
Wheelbase
1514 mm / 60 in
Height
1430 mm / 56.3 in
Length
2207 mm / 86.9 in
Width
952.5 mm / 37.5 in
Wet Weight (kg)
249.0 kg
Wet Weight (lbs.)
549.0 pounds
Fuel Capacity (l)
20.00 litres
Fuel Capacity (gal.)
5.28 US gallons
Fuel Capacity
20 Litres / 5.3 US gal
Max Load
465 kg / 1025 lbs
Wet Weight
249 kg / 549 lbs
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Two cylinder boxer, four-stroke
Displacement (ci)
76.52 cubic inches
Displacement (cc)
1254.0 cc
CO2
110.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
102.5 x 76.0 mm
Bore x Stroke (in,)
4.0 x 3.0 inches
Displacement
1254 cc / 76.5 cu-in
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, with two overhead spur gear driven camshafts, a counterbalance shaft and variable intake camshaft control system BMW ShiftCam, 4 valves per cylinder, intake 40mm, outlet 34 mm
Fuel System
Injection. Electronic intake manifold injection
Bore x Stroke
102.5 x 76 mm
Compression Ratio
12.5:1
Cooling System
Liquid / Air cooled
Emissions
Regulated three-way catalytic converter, compliant with EU5 emission standard
Engine Lubrication
Dry sump
Engine Management
BMS-O
Fuel Consumption
4.75 litres/100 km (21.1 km/l or 49.52 mpg)
Fuel Induction
Electronic intake pipe injection, 52mm Ø throttle valve
Fuel Type
Unleaded super, octane number 95 (RON)
Starter
Electric
Valve System
4
Battery Capacity
12 V / 11.8 Ah, maintenance-free
Clutch
Wet clutch with anti-hopping function, hydraulically activated
Final Drive
Shaft
Gear Ratios
1st (2.438) 2nd 1.714 3rd. 1.296 4th 1.059 5th 0.943 6th 0.848
Gearbox
6-speed
Primary Drive
Constant mesh
Primary Drive Ratios
1.650
Secondary Drive Ratio
1.061
Transmission / Drive
Constant mesh 6-speed gearbox with helical gearing system
Wheel Travel - Rear (mm)
200 mm
Wheel Travel - Rear (in.)
7.9 inches
Wheel Travel - Front (mm)
190 mm
Wheel Travel - Front (in.)
7.5 inches
Trail (mm)
100 mm
Trail (in.)
3.9 inches
Frame Type
Two-section frame concept consisting of main frame with bolt-on rear frame, load-bearing engine
Suspension - Front
BMW Motorrad 37mm Telelever, central spring strut
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel
Rake
25.5°
Steering Angle
64.3°
Trail
100.6 mm / 4.0 in
Wheel Travel - Front
190 mm / 7.4 in
Wheel Travel - Rear
200 mm / 7.8 in
Brakes - Front
2x 305mm floating discs, 4-piston radial brake calipers
Brakes - Rear
Single 276mm disc, 2-piston floating caliper
ABS
BMW Motorrad Integral ABS Pro (part-integral, slant-layer-optimized)
Rims
Cast aluminium
Tyres - Front
120/70 R19
Tyres - Rear
170/60 R17
Wheels
Cast aluminium wheels
Wheels - Front
3.00 x 19″
Wheels - Rear
4.50 x 17″
