Key Specifications
Engine
Single cylinder, four-stroke
Torque
60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5000 Revolutions">RPM
Fuel Capacity
14.00 litres

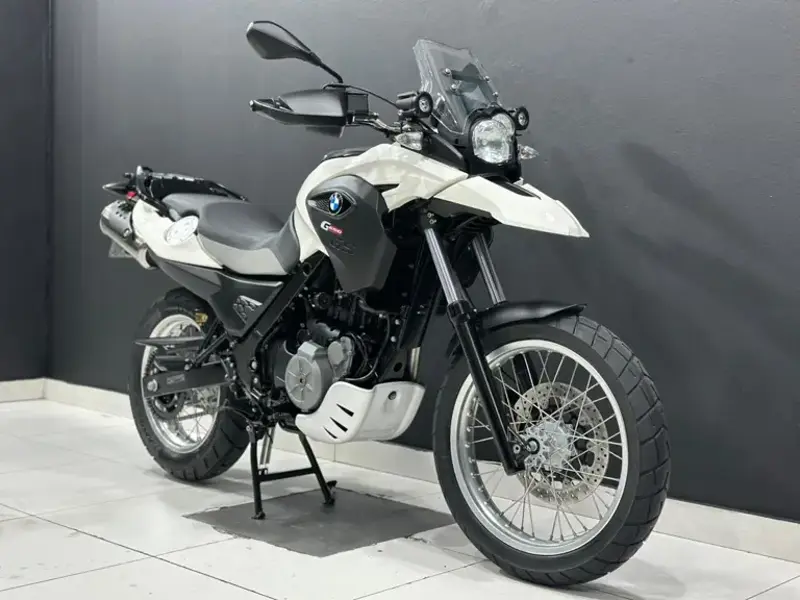

Full 2015 BMW G 650GS Specifications
Colours
Deep black, Aura white
Width (mm)
920 mm
Width (in.)
36.2 inches
Wheelbase (mm)
1,477 mm
Wheelbase (in.)
58.1 inches
Seat Height (mm)
780 mm
Seat Height (in.)
30.7 inches
Length (mm)
2,165 mm
Length (in.)
85.2 inches
Height (mm)
1,390 mm
Height (in.)
54.7 inches
Wet Weight (lbs.)
423.3 pounds
Wet Weight (kg)
192.0 kg
Fuel Capacity (l)
14.00 litres
Fuel Capacity (gal.)
3.70 gallons
Dry Weight (lbs.)
385.8 pounds
Dry Weight (kg)
175
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Single cylinder, four-stroke
Displacement (ci)
39.79 cubic inches
Displacement (cc)
652.00 cc
CO2
74.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
100.0 x 83.0 mm
Bore x Stroke (in,)
3.9 x 3.3 inches
Fuel System
Injection. Electronic intake pipe injection/BMW engine management, twin spark ignition
Compression Ratio
11.5:1
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-3
Engine Lubrication
Dry sump
Fuel Consumption
3.20 litres/100 km (31.3 km/l or 73.51 mpg)
Starter
Electric
Valve System
4
Clutch
Multiple-disc clutch in oil bath, mechanically operated
Final Drive
Chain
Gearbox
5-speed
Primary Drive
Endless O-ring chain with shock damping in rear wheel hub
Trail (in.)
4.4 inches
Trail (mm)
113 mm
Wheel Travel - Front (in.)
6.7 inches
Wheel Travel - Front (mm)
170 mm
Wheel Travel - Rear (in.)
6.5 inches
Wheel Travel - Rear (mm)
165 mm
Frame Type
Bridge-type steel section frame with bolted on rear section
Suspension - Front
Telescopic fork, 41mm diameter, fork stabiliser
Suspension - Rear
Box-section steel dual swing arm, central spring strut operated by lever system, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Rake
28.1°
Brakes - Rear Diameter (mm)
240 mm
Brakes - Rear Diameter (in.)
9.4 inches
Brakes - Front Diameter (mm)
300 mm
Brakes - Front Diameter (in.)
11.8 inches
Brakes - Front
Single disc. ABS. Floating discs. Two-piston calipers.
Brakes - Rear
Single disc. ABS. Floating disc. Single-piston caliper.
Rims
Cast aluminium
Tyres - Front
110/80-R19
Tyres - Rear
140/80-R17
