Key Specifications
Engine
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Power
54 kW / 72.4 hp @ 8750 rpm
Torque
68 Nm / 50 lb-ft @ 6500 rpm
Fuel Capacity
14 Litres / 3.7 US gal
Advertisement

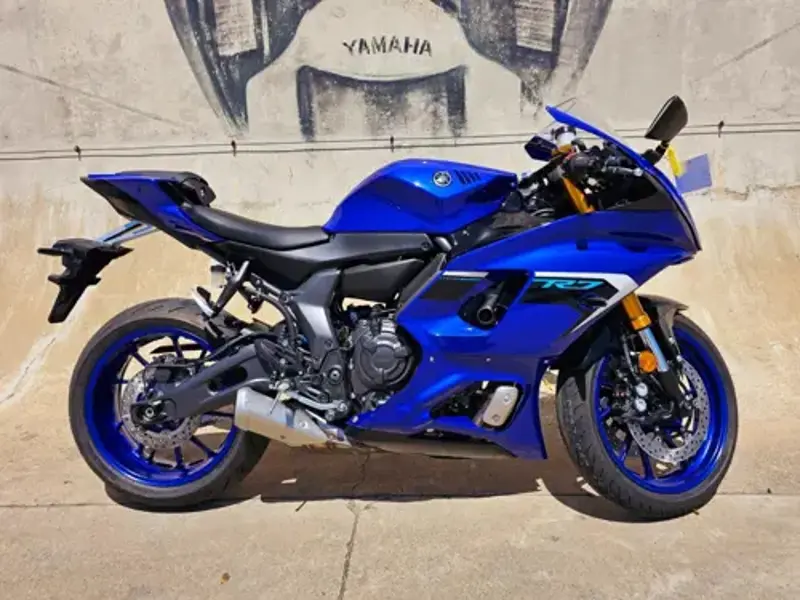

Full 2026 Yamaha YZF-R7 Specifications
Year
2026
Make Model
Yamaha YZF-R7
Seat Height
831 mm / 32.7 in
Wheelbase
1395 mm / 54.9 in
Ground Clearance
135 mm / 5.3 in
Height
1160 mm / 45.7 in
Length
2070 mm / 81.5 in
Width
724 mm / 28.5 in
Fuel Capacity
14 Litres / 3.7 US gal
Wet Weight
189 kg / 417 lbs
Displacement
689 cc / 42.04 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
80 x 68.6 mm
Compression Ratio
11.5:1
Cooling System
Liquid cooled
Emissions
Euro 5
Exhaust
Integrated 2-into-1 exhaust pipes and muffler
Fuel Induction
Fuel injection with YCC-T
Ignition
TCI Transistor Controlled Ignition
Lubrication
Wet sump
Starter
Electric
Clutch
Multiplate wet clutch, with Assist & Slipper clutch
Final Drive
Chain
Transmission / Drive
6 Speed constant mesh
Frame Type
A high-strength steel frame with a rigid-mount aluminum center
Suspension - Front
Telescopic fork adjustable for preload, rebound and compression
Suspension - Rear
Linked-type Monocross shock, adjustable preload and rebound
Rake
24°
Trail
91 mm / 3.6 in
Wheel Travel - Front
119 mm / 4.7 in
Wheel Travel - Rear
122 mm / 4.8 in
Brakes - Front
2x 298mm discs, 4-piston calipers
Brakes - Rear
Single 245mm disc, single piston caliper
ABS
Standard
Tyres - Front
120/70ZR17 Bridgestone- BATTLAX HYPERSPORT S23F
Tyres - Rear
180/55ZR17 Bridgestone- BATTLAX HYPERSPORT S23R
