Key Specifications
Torque
114.00 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 6000
Fuel Capacity
22.71 litres

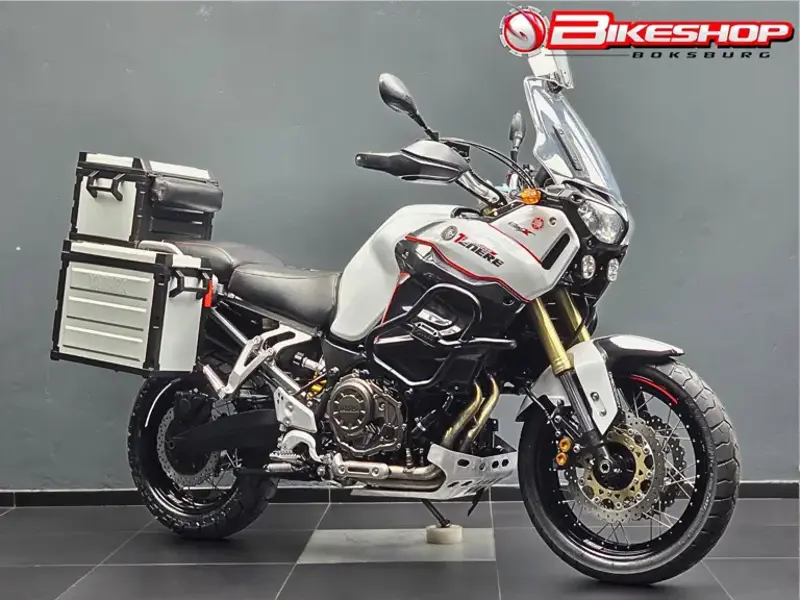

Full 2011 Yamaha XT1200Z Super Tenere Specifications
Colours
Impact Blue, Raven
Warranty
1 Year (Limited Factory Warranty)
Width (mm)
980 mm
Width (in.)
38.6 inches
Wheelbase (mm)
1,539 mm
Wheelbase (in.)
60.6 inches
Seat Height (mm)
845 mm
Seat Height (in.)
33.3 inches
Length (mm)
2,250 mm
Length (in.)
88.6 inches
Height (mm)
1,410 mm
Height (in.)
55.5 inches
Ground Clearance (mm)
99 mm
Ground Clearance (in.)
3.9 inches
Wet Weight (lbs.)
575.0 pounds
Wet Weight (kg)
260.8 kg
Oil Capacity (Quarts)
0.28 quarts
Oil Capacity (l)
4.20 litres
Fuel Capacity (l)
22.71 litres
Fuel Capacity (gal.)
6.00 gallons
Bore x Stroke (in,)
3.9 x 3.1 inches
Bore x Stroke (mm)
98.0 x 79.5 mm
Fuel Control
DOHC
Engine Type
Twin, four-stroke
Displacement (cc)
1199.00 cc
Displacement (ci)
73.16 cubic inches
Fuel System
Injection. Fuel Injection with YCC-T
Compression Ratio
11.0:1
Engine Lubrication
Wet sump
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Valve System
2
Clutch
Multiplate wet clutch
Final Drive
Shaft drive (cardan)
Gearbox
6-speed
Wheel Travel - Front (in.)
5.0 inches
Wheel Travel - Front (mm)
127 mm
Wheel Travel - Rear (in.)
5.0 inches
Wheel Travel - Rear (mm)
127 mm
Frame Type
Steel main frame
Suspension - Front
Telescopic fork, 43mm tube, adjustable preload, compression and rebound damping, 7.48-in travel
Suspension - Rear
Monoshock, adjustable preload and rebound damping, 7.48-in of travel
Rake
28.0°
Brakes - Rear Diameter (mm)
282 mm
Brakes - Rear Diameter (in.)
11.1 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front
Double disc. ABS
Brakes - Rear
Single disc. ABS
Tyres - Front
110/80-R19
Tyres - Front
18/7-Ma8
Tyres - Rear
18/9-Ma8
Tyres - Rear
150/70-R17
