Key Specifications
Engine
In-line three, four-stroke
Torque
87.50 Nm (8.9 kgf-m or 64.5 ft.lbs) @ 8900 Revolutions
Weight
210.0 kg / 463.0 lbs
Fuel Capacity
18.00 litres / 4.76 gallons
Advertisement

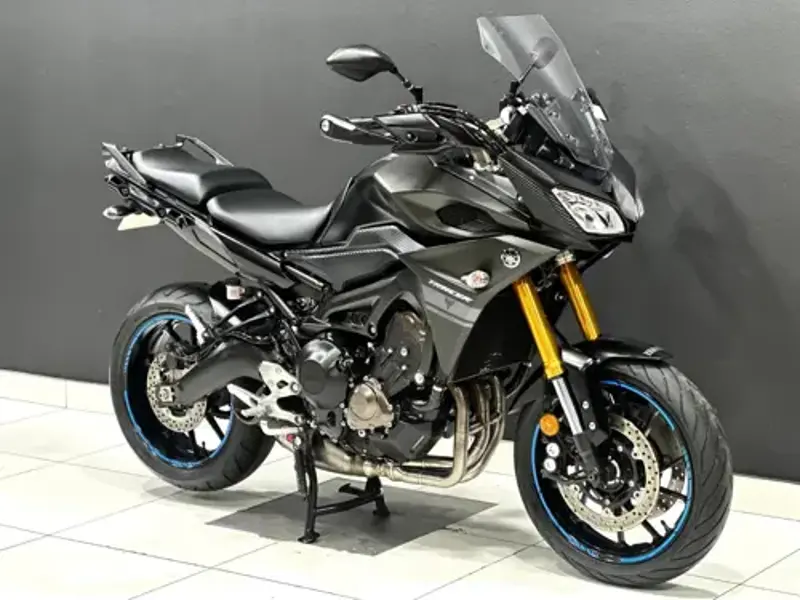

Full 2018 Yamaha MT-09 Tracer Specifications
Comments
Switchable Traction Control System. Tracer-specific D-MODE selectable running modes. Windscreen.
Colours
Grey, blue, matte grey
Ground Clearance (mm)
135 mm
Ground Clearance (in.)
5.3 inches
Seat Height
815 mm / 32.1 in.
Wheelbase
1,440 mm / 56.7 in.
Height
1,375 mm / 54.1 in.
Length
2,160 mm / 85.0 in.
Width
950 mm / 37.4 in.
Oil Capacity (Quarts)
0.22 quarts
Oil Capacity (l)
3.40 litres
Dry Weight
190 kg / 418.9 lbs
Fuel Capacity
18.00 litres / 4.76 gallons
Wet Weight
210.0 kg / 463.0 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line three, four-stroke
Displacement (ci)
51.68 cubic inches
Displacement (cc)
847.00 cc
CO2
117.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
78.0 x 59.1 mm
Bore x Stroke (in,)
3.1 x 2.3 inches
Fuel System
Injection
Compression Ratio
11.5:1
Engine Lubrication
Wet sump
Fuel Consumption
5.08 litres/100 km (19.7 km/l or 46.30 mpg)
Ignition
TCI
Starter
Electric
Valve System
4
Clutch
Wet, Multiple Disc
Final Drive
Chain
Gearbox
6-speed
Frame Type
Diamond, die-cast aluminium
Suspension - Front
Telescopic forks
Suspension - Rear
Swingarm, (Link type suspension)
Rake
24.0°
Trail
100 mm / 3.9 in.
Wheel Travel - Front
137 mm / 5.4 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Instrumentation
Multifunction dot matrix instrument panel
Lighting system
Twin LED headlights
Brakes - Front Diameter (in.)
11.7 inches
Brakes - Front Diameter (mm)
298 mm
Brakes - Rear Diameter (in.)
9.6 inches
Brakes - Rear Diameter (mm)
245 mm
Brakes - Front
Double disc. Hydraulic. ABS.
Brakes - Rear
Single disc. Hydraulic. ABS.
Rims
10-spoke alloy wheels
Tyres - Front
120/70-ZR17
Tyres - Rear
180/55-ZR17
