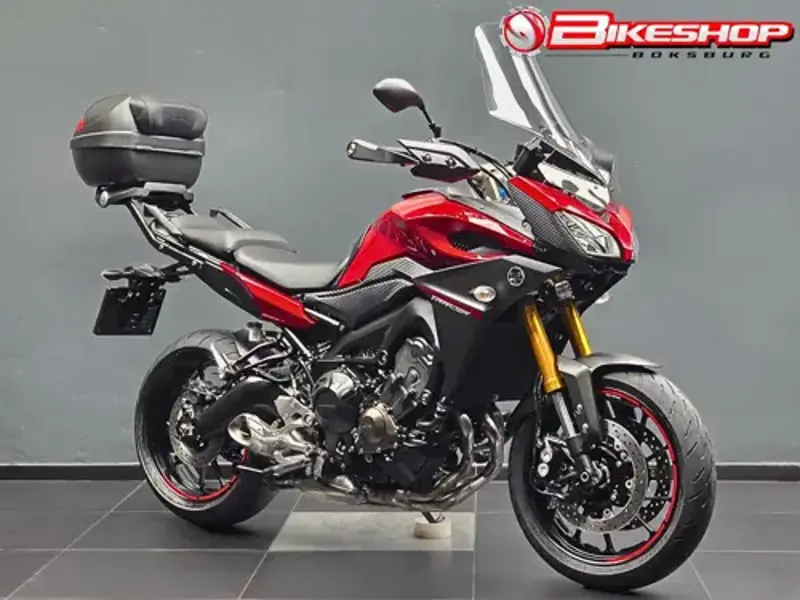

2016 Yamaha MT-09 Tracer Overview
For 2016, Yamaha offers the MT-09 Tracer as a sport motorcycle with 847 cc on tap. The 2016 Yamaha MT-09 Tracer is built around an In-line three, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 11.5:1. Internally, bore and stroke are 78 x 59.1 mm. Out on the road, the MT-09 Tracer delivers 87.50 Nm @ 8900 Revolutions of torque. In everyday use, the 2016 MT-09 Tracer tips the scales at 210 kg, carries an 18-litre fuel tank, offers a seat height of 815 mm and spans a 1,440 mm wheelbase. That's roughly 15.3 kg heavier than the average sport motorcycle in our database. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2016 Yamaha MT-09 Tracer spec sheet below.
2016 Yamaha MT-09 Tracer compared with other bikes in the Sport category
Measured against other bikes in the Sport category in our database (up to 1607 models, one entry per model), the 2016 Yamaha MT-09 Tracer comes out as follows.
- With 210 kg, the MT-09 Tracer has the joint 353rd heaviest wet weight of 1213 bikes in the Sport category, 8% above the category average of 194.7 kg.
- Seat height of 815 mm is taller than that of 983 of the other 1606 bikes in the Sport category.
- Narrowing the field to the 545 models within five model years of it, the wet weight of 210 kg is heavier than that of 408 of the other 544.
2016 MT-09 Tracer - Pros & Cons
Strengths
-
🔧
Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.
-
🛑
Strong front braking: The double disc front brake bites hard and stays consistent - a solid foundation whether it's stock or upgraded with braided lines.
-
🛡️
ABS fitted: With ABS on board, hard braking on a damp or gravelly surface is far less likely to end in a locked wheel.
-
⛽
Large fuel range: With an 18-litre tank, this isn't a bike you'll be stopping for fuel every hour - a real asset on longer trips.
Considerations
-
⚙️
Chain final drive upkeep: A chain drivetrain is the most common setup in its class, but it's also the one that demands the most regular hands-on maintenance.
Wear Points & Servicing Notes
Fuelling & injector care
Fuelling on the MT-09 Tracer comes from fuel injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.
Valve clearance checks
Valve clearances on Double Overhead Cams/Twin Cam (DOHC)-equipped engines like the MT-09 Tracer's drift slowly with mileage rather than failing suddenly - sticking to the service interval keeps it a non-issue.
Brake disc and pad wear
Double disc with hydraulic and ABS up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.
Suspension condition on used examples
Suspension duties are handled by Telescopic forks up front and Swingarm, at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.
Final drive maintenance
Chain final drive on the MT-09 Tracer means routine lubing and tension checks are part of ownership - skip them and sprocket wear accelerates noticeably.
Frame & chassis check
The Diamond, die-cast aluminium chassis holds up well with normal use; on a used bike it's still worth checking the head-stock and swingarm pivot area for impact damage or corrosion.
MT-09 Tracer - Buying & Maintenance Guide
What to check before buying
A pre-purchase check on the 2016 Yamaha MT-09 Tracer with its 847 cc sport should cover the same ground every time: service history, drivetrain condition, and any oil seepage around the casings. This model runs chain final drive, so check chain slack and sprocket tooth profile specifically - a worn sprocket is a cheaper fix now than after it's chewed up the next chain. Now 10 years old, this sport is as likely to show age-related wear (perished rubber, seized fasteners, degraded seals) as mileage-related wear. Start it from cold if you can - a well-kept MT-09 Tracer settles to a smooth idle within seconds.
Oil and filter changes
Oil changes are the cheapest insurance you can buy for the MT-09 Tracer's 847 cc in-line three, four-stroke - keep to the manufacturer's interval rather than stretching it. The sump holds 3.40 litres, so budget for that volume of quality motorcycle-specific engine oil. With an 11.5:1 compression ratio, running the octane grade specified in the manual matters more than on a lower-compression engine. Use the viscosity grade the manual specifies, not whatever's on sale.
Fuel system care
Injector systems like the MT-09 Tracer's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.
Valve clearance service
There's no reliable seat-of-the-pants way to tell if an MT-09 Tracer's valve clearances are in spec - a light top-end tick is the only real warning sign, and by then some wear has already happened. Service records are the only proof.
2016 Yamaha MT-09 Tracer - Frequently Asked Questions
What engine does the 2016 Yamaha MT-09 Tracer have?
The 2016 Yamaha MT-09 Tracer uses an In-line three, four-stroke engine with 847 cc of displacement.
How much does the 2016 Yamaha MT-09 Tracer weigh?
The 2016 Yamaha MT-09 Tracer weighs 210 kg. This is the manufacturer's wet figure.
How much torque does the 2016 Yamaha MT-09 Tracer produce?
The 2016 Yamaha MT-09 Tracer produces 87.50 Nm @ 8900 Revolutions of torque.
What is the fuel tank capacity of the 2016 Yamaha MT-09 Tracer?
The 2016 Yamaha MT-09 Tracer has an 18-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 300-360 km between stops.
Is the 2016 Yamaha MT-09 Tracer suitable for shorter riders?
The 2016 Yamaha MT-09 Tracer has a seat height of 815 mm. This is a moderate seat height that suits a wide range of rider heights.
What brakes does the 2016 Yamaha MT-09 Tracer have?
The 2016 Yamaha MT-09 Tracer uses double disc with hydraulic and ABS at the front and single disc with hydraulic and ABS at the rear.
What tyre sizes does the 2016 Yamaha MT-09 Tracer use?
The 2016 Yamaha MT-09 Tracer runs 120/70-ZR17 front and 180/55-ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
How much oil does the 2016 Yamaha MT-09 Tracer take?
The 2016 Yamaha MT-09 Tracer takes 3.40 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.
Yamaha MT-09 Tracer Spec Evolution
The Yamaha MT-09 Tracer was produced across 3 model years (2016-2018). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2016 |
2017 |
2018 |
| Comments |
Switchable Traction Control System (TCS). Tracer-specific D-MODE selectable running modes. Windscreen. |
Switchable Traction Control System. Tracer-specific D-MODE selectable running modes. Windscreen. |
Switchable Traction Control System. Tracer-specific D-MODE selectable running modes. Windscreen. |
| Colours |
Red, black, blue |
Grey, blue |
Grey, blue, matte grey |
Key Specifications
Engine
In-line three, four-stroke
Torque
87.50 Nm (8.9 kgf-m or 64.5 ft.lbs) @ 8900 Revolutions
Weight
210.0 kg / 463.0 lbs
Fuel Capacity
18.00 litres / 4.76 gallons
Advertisement
Full 2016 Yamaha MT-09 Tracer Specifications
Comments
Switchable Traction Control System (TCS). Tracer-specific D-MODE selectable running modes. Windscreen.
Colours
Red, black, blue
Ground Clearance (in.)
5.3 inches
Ground Clearance (mm)
135 mm
Seat Height
815 mm / 32.1 in.
Wheelbase
1,440 mm / 56.7 in.
Height
1,375 mm / 54.1 in.
Length
2,160 mm / 85.0 in.
Width
950 mm / 37.4 in.
Oil Capacity (l)
3.40 litres
Oil Capacity (Quarts)
0.22 quarts
Fuel Capacity
18.00 litres / 4.76 gallons
Wet Weight
210.0 kg / 463.0 lbs
Displacement (cc)
847.00 cc
Displacement (ci)
51.68 cubic inches
Engine Type
In-line three, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Bore x Stroke (in,)
3.1 x 2.3 inches
Bore x Stroke (mm)
78.0 x 59.1 mm
Fuel System
Injection
Compression Ratio
11.5:1
Engine Lubrication
Wet sump
Ignition
TCI
Starter
Electric
Valve System
4
Clutch
Wet, Multiple Disc
Final Drive
Chain
Gearbox
6-speed
Frame Type
Diamond, die-cast aluminium
Suspension - Front
Telescopic forks
Suspension - Rear
Swingarm, (Link type suspension)
Rake
24.0°
Trail
100 mm / 3.9 in.
Wheel Travel - Front
137 mm / 5.4 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Instrumentation
Multifunction dot matrix instrument panel
Lighting system
Twin LED headlights
Brakes - Front Diameter (in.)
11.7 inches
Brakes - Front Diameter (mm)
298 mm
Brakes - Rear Diameter (in.)
9.6 inches
Brakes - Rear Diameter (mm)
245 mm
Brakes - Front
Double disc. Hydraulic. ABS.
Brakes - Rear
Single disc. Hydraulic. ABS.
Rims
10-spoke alloy wheels
Tyres - Front
120/70-ZR17
Tyres - Rear
180/55-ZR17
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
Spot an error? Let us know.
