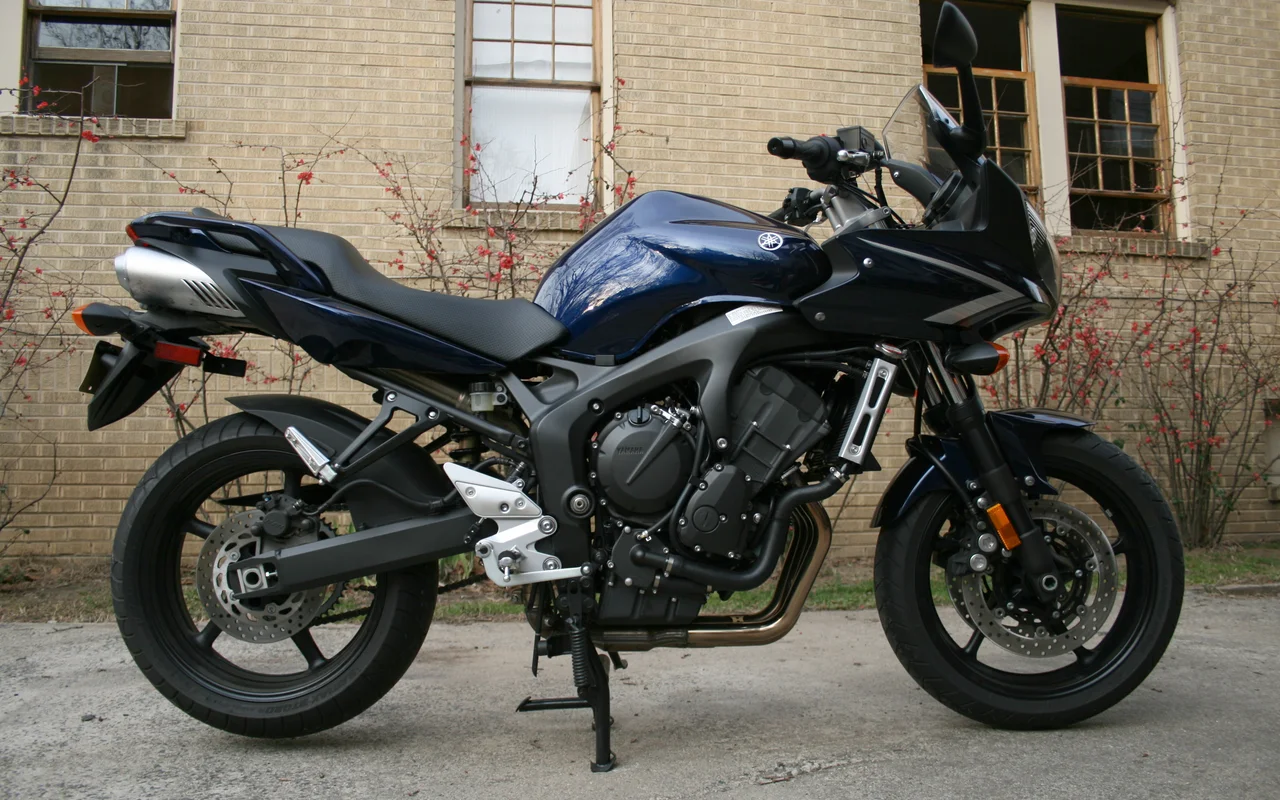

2009 Yamaha FZ6 Specifications

All-Round • Specs last verified 13 July 2026

No images available
Tap to enlarge

2009 Yamaha FZ6 Overview

For 2009, Yamaha offers the FZ6 as an all-round motorcycle with 600 cc on tap. The 2009 Yamaha FZ6 is built around an In-line four engine running DOHC valve actuation, a compression ratio of 12.2:1. Internally, bore and stroke are 65.5 x 44.5 mm. In everyday use, the 2009 FZ6 tips the scales at 208.2 kg, carries a 19.30-litre fuel tank, offers a seat height of 795 mm and spans a 1,440 mm wheelbase. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2009 Yamaha FZ6 spec sheet below.

2009 FZ6 - Pros & Cons

Strengths

  • Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.
  • Large fuel range: With a 19.30-litre tank, this isn't a bike you'll be stopping for fuel every hour - a real asset on longer trips.

Considerations

  • Chain final drive upkeep: A chain drivetrain is the most common setup in its class, but it's also the one that demands the most regular hands-on maintenance.

Wear Points & Servicing Notes

Fuelling & injector care

Fuelling on the FZ6 comes from fuel injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.

Valve clearance checks

Valve clearances on DOHC-equipped engines like the FZ6's drift slowly with mileage rather than failing suddenly - sticking to the service interval keeps it a non-issue.

Brake disc and pad wear

Double disc up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.

Suspension condition on used examples

Suspension duties are handled by 43mm telescopic fork, 5.1-in travel up front and Single shock at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.

Final drive maintenance

Chain final drive on the FZ6 means routine lubing and tension checks are part of ownership - skip them and sprocket wear accelerates noticeably.

FZ6 - Buying & Maintenance Guide

What to check before buying

A pre-purchase check on the 2009 Yamaha FZ6 should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept FZ6 settles to a smooth idle within seconds.

Oil and filter changes

Oil changes are the cheapest insurance you can buy for a FZ6's engine - keep to the manufacturer's interval rather than stretching it. Use the viscosity grade the manual specifies, not whatever's on sale.

Fuel system care

Injector systems like the FZ6's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.

Valve clearance service

There's no reliable seat-of-the-pants way to tell if a FZ6's valve clearances are in spec - a light top-end tick is the only real warning sign, and by then some wear has already happened. Service records are the only proof.

2009 Yamaha FZ6 - Frequently Asked Questions

What engine does the 2009 Yamaha FZ6 have?
The 2009 Yamaha FZ6 uses an In-line four engine with 600 cc of displacement.
How much does the 2009 Yamaha FZ6 weigh?
The 2009 Yamaha FZ6 weighs 208.2 kg. This is the manufacturer's wet figure.
What is the fuel tank capacity of the 2009 Yamaha FZ6?
The 2009 Yamaha FZ6 has a 19.30-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 321-386 km between stops.
Is the 2009 Yamaha FZ6 suitable for shorter riders?
The 2009 Yamaha FZ6 has a seat height of 795 mm. This is a moderate seat height that suits a wide range of rider heights.
What brakes does the 2009 Yamaha FZ6 have?
The 2009 Yamaha FZ6 uses Double disc at the front and Single disc at the rear.
What tyre sizes does the 2009 Yamaha FZ6 use?
The 2009 Yamaha FZ6 runs 120/70-ZR17 front and 180/55-ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What fuel system does the 2009 Yamaha FZ6 use?
The 2009 Yamaha FZ6 uses Injection. Group Fuel Injection, 36mm throttle bodies, providing precise fuelling across the rev range and reliable cold-start behaviour.

Yamaha FZ6 Spec Evolution

The Yamaha FZ6 was produced across 7 model years (2004-2010). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification 2004 2005 2006 2007 2008 2009 2010
Dry Weight 180 kg / 396.8 lbs 191.9 kg / 423.0 lbs 180 kg / 396.8 lbs 186 kg / 410.0 lbs 186 kg / 410.0 lbs - -
Engine Type In-line four, four-stroke In-line four, four-stroke In-line four In-line four In-line four In-line four In-line four, four-stroke
Seat Height 795 mm / 31.3 in. 800 mm / 31.5 in. 795 mm / 31.3 in. 795 mm / 31.3 in. 795 mm / 31.3 in. 795 mm / 31.3 in. 795 mm / 31.3 in.
Fuel Capacity - 5.10 litres / 1.35 gallons 19.40 litres / 5.13 gallons 19.30 litres / 5.10 gallons 19.30 litres / 5.10 gallons 19.30 litres / 5.10 gallons 19.30 litres / 5.10 gallons
Ground Clearance (mm) 145 mm - 130 mm - - - -
Ground Clearance (in.) 5.7 inches - 5.1 inches - - - -
Suspension - Front Telescopic fork, 43 mm 43mm telescopic fork, 5.1´ Telescopic fork 43mm telescopic fork, 5.1´ 43mm telescopic fork, 5.1-in travel 43mm telescopic fork, 5.1-in travel 43mm telescopic fork, 5.1-in travel
Suspension - Rear Swingarm (Linkless type Monocross) Single shock, adjustable preload Swingarm (Linkless type Monocross) Single shock, adjustable preload Single shock Single shock Single shock

Key Specifications

Engine

In-line four

Power

Not published by manufacturer

Torque

Not published by manufacturer

Top Speed

Not published by manufacturer

Weight

208.2 kg / 459.0 lbs

Fuel Capacity

19.30 litres / 5.10 gallons

Advertisement

Full 2009 Yamaha FZ6 Specifications

Colours Deep Blue, Raven
Seat Height 795 mm / 31.3 in.
Wheelbase 1,440 mm / 56.7 in.
Height 1,209 mm / 47.6 in.
Length 2,096 mm / 82.5 in.
Width 749 mm / 29.5 in.
Fuel Capacity 19.30 litres / 5.10 gallons
Wet Weight 208.2 kg / 459.0 lbs
Bore x Stroke (in,) 2.6 x 1.8 inches
Bore x Stroke (mm) 65.5 x 44.5 mm
Displacement (cc) 600.00 cc
Displacement (ci) 36.61 cubic inches
Engine Type In-line four
Fuel Control DOHC
Stroke 4
Fuel System Injection. Group Fuel Injection, 36mm throttle bodies
Compression Ratio 12.2:1
Ignition TCI
Valve System 4
Final Drive Chain
Gearbox 6-speed
Suspension - Front 43mm telescopic fork, 5.1-in travel
Suspension - Rear Single shock
Rake 25.0°
Trail 97 mm / 3.8 in.
Wheel Travel - Rear 130 mm / 5.1 in.
Brakes - Front Diameter (in.) 11.7 inches
Brakes - Front Diameter (mm) 298 mm
Brakes - Rear Diameter (in.) 9.6 inches
Brakes - Rear Diameter (mm) 245 mm
Brakes - Front Double disc
Brakes - Rear Single disc
Tyres - Front 120/70-ZR17
Tyres - Rear 180/55-ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
