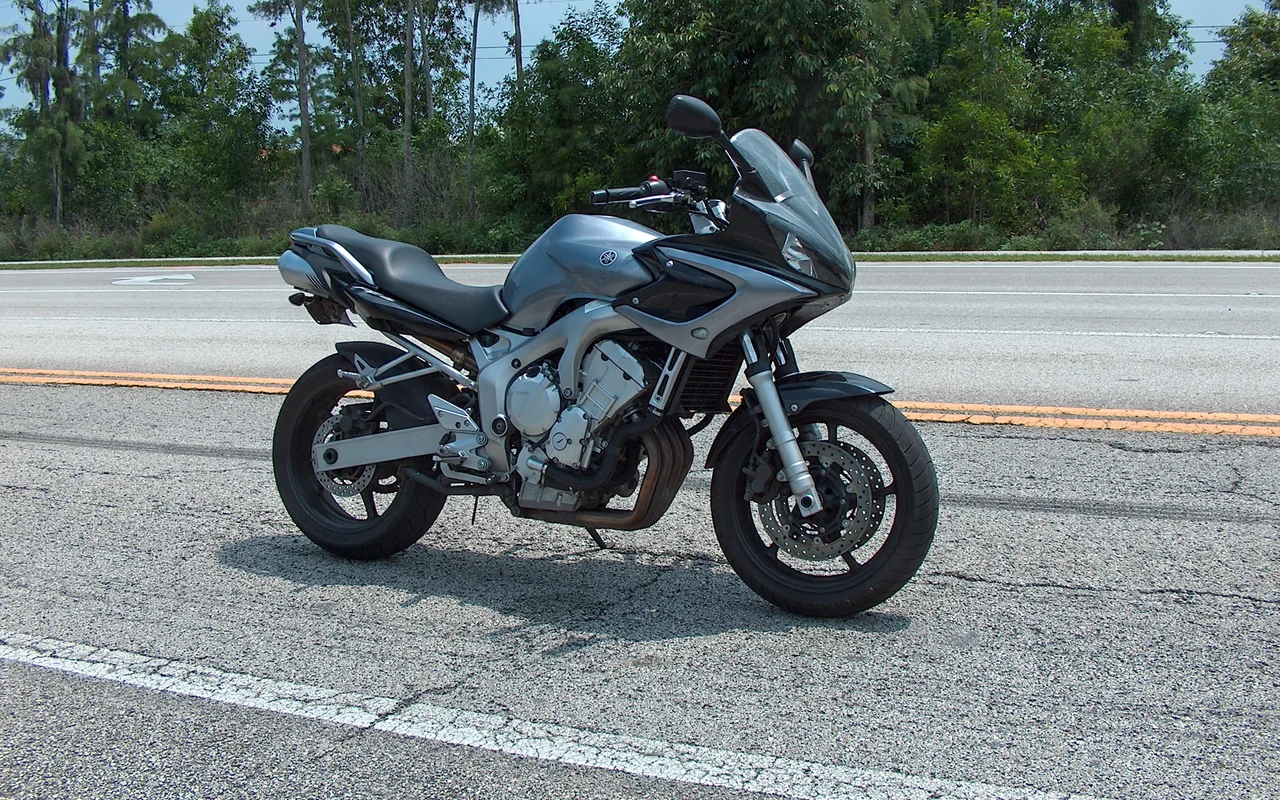

2005 Yamaha FZ6 Specifications

Name: 2005 Yamaha FZ6
Brand: Yamaha

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2005 Yamaha FZ6 Overview

Yamaha FZ6 is a sport motorcycle, displacing 600 cc. Power comes from an In-line four, four-stroke engine running DOHC valve actuation, a compression ratio of 12.1:1. Bore and stroke come in at 65.5 x 44.5 mm. On the road, the 2005 FZ6 tips the scales at 191.9 kg, carries a 5.10-litre fuel tank, offers a seat height of 800 mm and spans a 1,440 mm wheelbase. That's roughly 10.4 kg lighter than the average sport motorcycle in our database. The full 2005 Yamaha FZ6 spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2005 FZ6 - Pros & Cons

Strengths

Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.

Considerations

Modest fuel capacity: Range between stops is limited by the 5.10-litre tank - plan fuel stops accordingly on longer routes.
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.

Wear Points & Servicing Notes

Fuelling & injector care

The fuel injection on the FZ6 needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Valve clearance checks

With DOHC valve gear, the FZ6 needs periodic clearance checks; caught early they're a cheap adjustment, left unchecked they accelerate valve seat wear.

Brake disc and pad wear

Braking up front comes from Double disc - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The FZ6's suspension runs 43mm telescopic fork, 5.1´ at the front. The rear uses Single shock, adjustable preload. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The FZ6 uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.

FZ6 - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2005 Yamaha FZ6, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy FZ6 should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects a FZ6's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the FZ6 needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

Valve clearance service

Valve clearances are easy to overlook on a used FZ6 since a bike out of spec doesn't always feel obviously wrong - but the wear it causes is real. Ask the seller for documentation before assuming it's been done.

2005 Yamaha FZ6 - Frequently Asked Questions

What engine does the 2005 Yamaha FZ6 have?

The 2005 Yamaha FZ6 uses an In-line four, four-stroke engine with 600 cc of displacement.

How much does the 2005 Yamaha FZ6 weigh?

The 2005 Yamaha FZ6 weighs 191.9 kg. This is the manufacturer's dry figure.

What is the fuel tank capacity of the 2005 Yamaha FZ6?

The 2005 Yamaha FZ6 has a 5.10-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 85-101 km between stops.

Is the 2005 Yamaha FZ6 suitable for shorter riders?

The 2005 Yamaha FZ6 has a seat height of 800 mm. This is a moderate seat height that suits a wide range of rider heights.

What brakes does the 2005 Yamaha FZ6 have?

The 2005 Yamaha FZ6 uses Double disc at the front and Single disc at the rear.

What tyre sizes does the 2005 Yamaha FZ6 use?

The 2005 Yamaha FZ6 runs 120/70-ZR17 front and 180/55-ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What fuel system does the 2005 Yamaha FZ6 use?

The 2005 Yamaha FZ6 uses Injection. Group Fuel Injection, 36mm throttle bodies, providing precise fuelling across the rev range and reliable cold-start behaviour.

Yamaha FZ6 Spec Evolution

The Yamaha FZ6 was produced across 7 model years (2004-2010). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2004	2005	2006	2007	2008	2009	2010
Dry Weight	180 kg / 396.8 lbs	191.9 kg / 423.0 lbs	180 kg / 396.8 lbs	186 kg / 410.0 lbs	186 kg / 410.0 lbs	-	-
Engine Type	In-line four, four-stroke	In-line four, four-stroke	In-line four	In-line four	In-line four	In-line four	In-line four, four-stroke
Seat Height	795 mm / 31.3 in.	800 mm / 31.5 in.	795 mm / 31.3 in.	795 mm / 31.3 in.	795 mm / 31.3 in.	795 mm / 31.3 in.	795 mm / 31.3 in.
Fuel Capacity	-	5.10 litres / 1.35 gallons	19.40 litres / 5.13 gallons	19.30 litres / 5.10 gallons	19.30 litres / 5.10 gallons	19.30 litres / 5.10 gallons	19.30 litres / 5.10 gallons
Ground Clearance (mm)	145 mm	-	130 mm	-	-	-	-
Ground Clearance (in.)	5.7 inches	-	5.1 inches	-	-	-	-
Suspension - Front	Telescopic fork, 43 mm	43mm telescopic fork, 5.1´	Telescopic fork	43mm telescopic fork, 5.1´	43mm telescopic fork, 5.1-in travel	43mm telescopic fork, 5.1-in travel	43mm telescopic fork, 5.1-in travel
Suspension - Rear	Swingarm (Linkless type Monocross)	Single shock, adjustable preload	Swingarm (Linkless type Monocross)	Single shock, adjustable preload	Single shock	Single shock	Single shock

Key Specifications

Engine

In-line four, four-stroke

Power

Not published by manufacturer

Torque

Not published by manufacturer

Top Speed

Not published by manufacturer

Weight

191.9 kg / 423.0 lbs

Fuel Capacity

5.10 litres / 1.35 gallons

Full 2005 Yamaha FZ6 Specifications

Colours Galaxy Blue/Black, Cerulean Silver/Black

Seat Height 800 mm / 31.5 in.

Wheelbase 1,440 mm / 56.7 in.

Length 2,096 mm / 82.5 in.

Width 765 mm / 30.1 in.

Dry Weight 191.9 kg / 423.0 lbs

Fuel Capacity 5.10 litres / 1.35 gallons

Bore x Stroke (in,) 2.6 x 1.8 inches

Bore x Stroke (mm) 65.5 x 44.5 mm

Displacement (cc) 600.00 cc

Displacement (ci) 36.61 cubic inches

Engine Type In-line four, four-stroke

Fuel Control DOHC

Fuel System Injection. Group Fuel Injection, 36mm throttle bodies

Compression Ratio 12.1:1

Ignition Digital TCI

Starter Electric

Valve System 4

Final Drive Chain

Gearbox 6-speed

Suspension - Front 43mm telescopic fork, 5.1´

Suspension - Rear Single shock, adjustable preload

Rake 25.0°

Trail 97 mm / 3.8 in.

Wheel Travel - Rear 130 mm / 5.1 in.

Brakes - Front Diameter (in.) 11.7 inches

Brakes - Front Diameter (mm) 298 mm

Brakes - Rear Diameter (in.) 9.6 inches

Brakes - Rear Diameter (mm) 245 mm

Brakes - Front Double disc

Brakes - Rear Single disc

Tyres - Front 120/70-ZR17

Tyres - Rear 180/55-ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
