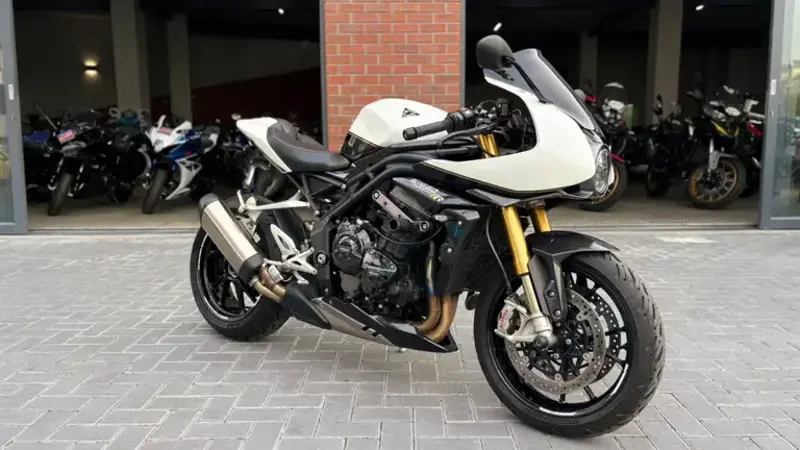

2023 Triumph Speed Triple 1200RR Specifications

Name: 2023 Triumph Speed Triple 1200RR
Brand: Triumph

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2023 Triumph Speed Triple 1200RR Overview

For 2023, Triumph offers the Speed Triple 1200RR as a sport motorcycle with 1160 cc on tap. The 2023 Triumph Speed Triple 1200RR is built around an In-line three, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 13.2:1. Internally, bore and stroke are 90 x 60.8 mm. Out on the road, the Speed Triple 1200RR delivers 124.8 Nm @ 9000 Revolutions of torque. In everyday use, the 2023 Speed Triple 1200RR tips the scales at 199 kg, carries a 15.50-litre fuel tank, offers a seat height of 830 mm and spans a 1439 mm wheelbase. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2023 Triumph Speed Triple 1200RR spec sheet below.

2023 Speed Triple 1200RR - Pros & Cons

Strengths

Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.

Considerations

Tall seat height: A 830 mm seat puts flat-footing out of reach for a lot of riders - sit on it in person before committing.
Chain final drive upkeep: A chain drivetrain is the most common setup in its class, but it's also the one that demands the most regular hands-on maintenance.

Wear Points & Servicing Notes

Fuelling & injector care

Fuelling on the Speed Triple 1200RR comes from fuel injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.

Valve clearance checks

Valve clearances on Double Overhead Cams/Twin Cam (DOHC)-equipped engines like the Speed Triple 1200RR's drift slowly with mileage rather than failing suddenly - sticking to the service interval keeps it a non-issue.

Brake disc and pad wear

Double disc. ABS. Floating discs. Brembo. up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.

Suspension condition on used examples

Suspension duties are handled by Öhlins 43mm fully adjustable USD forks. Öhlins S-EC 2 OBTi system electronic compression up front and Öhlins monoshock RSU with linkagel. Öhlins S-EC 2 OBTi system electronic compression at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.

Final drive maintenance

Chain final drive on the Speed Triple 1200RR means routine lubing and tension checks are part of ownership - skip them and sprocket wear accelerates noticeably.

Frame & chassis check

The Aluminum twin spar, bolt-on aluminium rear subframe chassis holds up well with normal use; on a used bike it's still worth checking the head-stock and swingarm pivot area for impact damage or corrosion.

Speed Triple 1200RR - Buying & Maintenance Guide

What to check before buying

A pre-purchase check on the 2023 Triumph Speed Triple 1200RR should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept Speed Triple 1200RR settles to a smooth idle within seconds.

Oil and filter changes

Oil changes are the cheapest insurance you can buy for a Speed Triple 1200RR's engine - keep to the manufacturer's interval rather than stretching it. The sump holds 3.80 litres, so budget for that volume of quality motorcycle-specific engine oil. Use the viscosity grade the manual specifies, not whatever's on sale.

Fuel system care

Injector systems like the Speed Triple 1200RR's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.

Valve clearance service

There's no reliable seat-of-the-pants way to tell if a Speed Triple 1200RR's valve clearances are in spec - a light top-end tick is the only real warning sign, and by then some wear has already happened. Service records are the only proof.

2023 Triumph Speed Triple 1200RR - Frequently Asked Questions

What engine does the 2023 Triumph Speed Triple 1200RR have?

The 2023 Triumph Speed Triple 1200RR uses an In-line three, four-stroke engine with 1160 cc of displacement.

How much does the 2023 Triumph Speed Triple 1200RR weigh?

The 2023 Triumph Speed Triple 1200RR weighs 199 kg. This is the manufacturer's dry figure.

How much power does the 2023 Triumph Speed Triple 1200RR make?

The 2023 Triumph Speed Triple 1200RR produces 124.8 Nm @ 9000 Revolutions of torque.

What is the fuel tank capacity of the 2023 Triumph Speed Triple 1200RR?

The 2023 Triumph Speed Triple 1200RR has a 15.50-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 258-310 km between stops.

Is the 2023 Triumph Speed Triple 1200RR suitable for shorter riders?

The 2023 Triumph Speed Triple 1200RR has a seat height of 830 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2023 Triumph Speed Triple 1200RR have?

The 2023 Triumph Speed Triple 1200RR uses Double disc. ABS. Floating discs. Brembo. at the front and Single disc. ABS. Two-piston calipers. Brembo. at the rear.

What tyre sizes does the 2023 Triumph Speed Triple 1200RR use?

The front tyre size on the 2023 Triumph Speed Triple 1200RR is 120/70-ZR17.

How much oil does the 2023 Triumph Speed Triple 1200RR take?

The 2023 Triumph Speed Triple 1200RR takes 3.80 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.

Triumph Speed Triple 1200RR Spec Evolution

The Triumph Speed Triple 1200RR was produced across 2 model years (2022-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2022	2023
Seat Height	830 mm / 32.5 in	830 mm / 32.7 in.
Fuel Capacity	15.5 Litres / 4.1 US gal	15.50 litres / 4.10 US gallons
Frame Type	Aluminium twin spar frame, bolt-on aluminium rear subframe	Aluminum twin spar, bolt-on aluminium rear subframe
Brakes - Front	2 x 320mm floating discs. Brembo Stylema monobloc calipers, OC-ABS, radial master cylinder with separate reservoir, span & ratio adjustable	Double disc. ABS. Floating discs. Brembo.
Wheelbase	1439 mm / 56.5 in	1439 mm / 56.7 in.
Brakes - Rear	Single 220mm disc. Brembo twin piston caliper, OC-ABS. Rear master cylinder with separate reservoir	Single disc. ABS. Two-piston calipers. Brembo.
Suspension - Rear	Öhlins monoshock RSU with linkage. Öhlins S-EC 2.0 OBTi system electronic compression / rebound damping	Öhlins monoshock RSU with linkagel. Öhlins S-EC 2.0 OBTi system electronic compression / rebound damping.
Colours	Grey/black, red/black	Crystal White/Storm Grey, Red Hopper/Storm Grey

Key Specifications

Engine

In-line three, four-stroke

Power

Not published by manufacturer

Torque

124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 9000 Revolutions

Top Speed

Not published by manufacturer

Weight

199 kg / 438.7 lbs

Fuel Capacity

15.50 litres / 4.10 US gallons

Full 2023 Triumph Speed Triple 1200RR Specifications

Comments 5 riding modes Rain, Road, Sport, Track and Rider.

Colours Crystal White/Storm Grey, Red Hopper/Storm Grey

Seat Height 830 mm / 32.7 in.

Wheelbase 1439 mm / 56.7 in.

Height 1120 mm / 44.1 in.

Length 2055 mm / 80.9 in.

Width 758 mm / 29.8 in.

Oil Capacity (Quarts) 4.02 US quarts

Oil Capacity (l) 3.80 litres

Dry Weight 199 kg / 438.7 lbs

Fuel Capacity 15.50 litres / 4.10 US gallons

Max Torque 124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 9000 Revolutions

Power-to-Weight Ratio 0.9045 HP/kg

Fuel Control Double Overhead Cams/Twin Cam (DOHC)

Engine Type In-line three, four-stroke

Displacement (ci) 70.78 cubic inches

Displacement (cc) 1160.0 cc

CO2 149.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Bore x Stroke (mm) 90.0 x 60.8 mm

Bore x Stroke (in,) 3.5 x 2.4 inches

Fuel System Injection. Multipoint sequential electronic fuel injection with electronic throttle control

Compression Ratio 13.2:1

Exhaust Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer

Fuel Consumption 6.43 litres/100 km (15.6 km/l or 36.58 mpg)

Starter Electric

Valve System 4

Clutch Wet. multi-plate, slip

Final Drive Chain (final drive)

Gearbox 6-speed

Primary Drive X-ring chain

Frame Type Aluminum twin spar, bolt-on aluminium rear subframe

Suspension - Front Öhlins 43mm fully adjustable USD forks. Öhlins S-EC 2.0 OBTi system electronic compression / rebound damping

Suspension - Rear Öhlins monoshock RSU with linkagel. Öhlins S-EC 2.0 OBTi system electronic compression / rebound damping.

Rake 23.9°

Trail 105 mm / 4.1 in.

Wheel Travel - Front 120 mm / 4.7 in.

Wheel Travel - Rear 120 mm / 4.7 in.

Instrumentation 5 inch TFT color instruments

Lighting system All-LED lighting. with self-cancelling indicators

Brakes - Front Double disc. ABS. Floating discs. Brembo.

Brakes - Rear Single disc. ABS. Two-piston calipers. Brembo.

Rims Cast Aluminum.

Tyres - Front 120/70-ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
