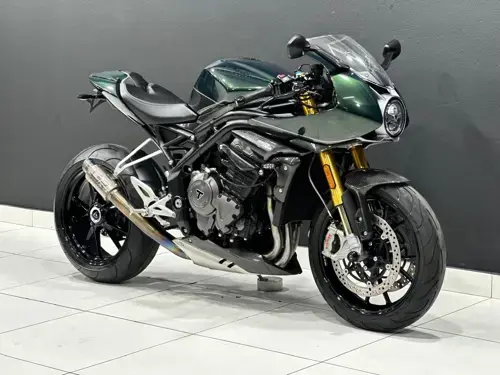

Triumph Speed Triple 1200RR Specs

2022 - 2023 • 2 variants

First introduced in 2022, the Triumph Speed Triple 1200RR is a sport motorcycle that has seen 2 variants through 2023. The engine is a four stroke, transverse three cylinder, DOHC, 4 valves per cylinder at 1160.0 cc. Peak output is rated at 177.6 hp. It delivers 124.8 Nm of torque.

About the Triumph Speed Triple 1200RR

Documented here are the full technical specifications for the Triumph Speed Triple 1200RR, a Sport motorcycle with a production run from 2022 to 2023. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

Triumph Speed Triple 1200RR by Year

2023 Triumph Speed Triple 1200RR View specs →

2022 Triumph Speed Triple 1200RR View specs →

Spec Evolution

How key specs changed across production years.

Specification	2022	2023
Seat Height	830 mm / 32.5 in	830 mm / 32.7 in.
Frame Type	Aluminium twin spar frame, bolt-on aluminium rear subframe	Aluminum twin spar, bolt-on aluminium rear subframe
Brakes - Front	2 x 320mm floating discs. Brembo Stylema monobloc calipers, OC-ABS, radial master cylinder with separate reservoir, span & ratio adjustable	Double disc. ABS. Floating discs. Brembo.
Wheelbase	1439 mm / 56.5 in	1439 mm / 56.7 in.
Brakes - Rear	Single 220mm disc. Brembo twin piston caliper, OC-ABS. Rear master cylinder with separate reservoir	Single disc. ABS. Two-piston calipers. Brembo.
Fuel Capacity	15.5 Litres / 4.1 US gal	15.50 litres / 4.10 US gallons
Suspension - Rear	Öhlins monoshock RSU with linkage. Öhlins S-EC 2.0 OBTi system electronic compression / rebound damping	Öhlins monoshock RSU with linkagel. Öhlins S-EC 2.0 OBTi system electronic compression / rebound damping.
Colours	Grey/black, red/black	Crystal White/Storm Grey, Red Hopper/Storm Grey
Clutch	Wet, multi-plate, slip & assist	Wet. multi-plate, slip
Final Drive	X-ring chain	Chain (final drive)
Rims	Cast Aluminum. Metzeler Racetec RR K3 tires.	Cast Aluminum.
Height	1120 mm / 44 in	1120 mm / 44.1 in.
Length	2085 mm / 82 in	2055 mm / 80.9 in. ↓
Tyres - Front	120/70 ZR 17 (58W) Pirelli Diablo Supercorsa SP V3	120/70-ZR17
Width	758 mm / 30 in	758 mm / 29.8 in.
Rake	23.9°	23.9°
Instrumentation	Full-colour 5" TFT instruments	5 inch TFT color instruments
Trail	104.7 mm / 4.1 in	105 mm / 4.1 in. ↑
Wheel Travel - Front	120 mm / 4.7 in	120 mm / 4.7 in.
Wheel Travel - Rear	120 mm / 4.7 in	120 mm / 4.7 in.
Max Torque	125 Nm / 92 lb-ft @ 9000 rpm	124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 9000 Revolutions ↓
