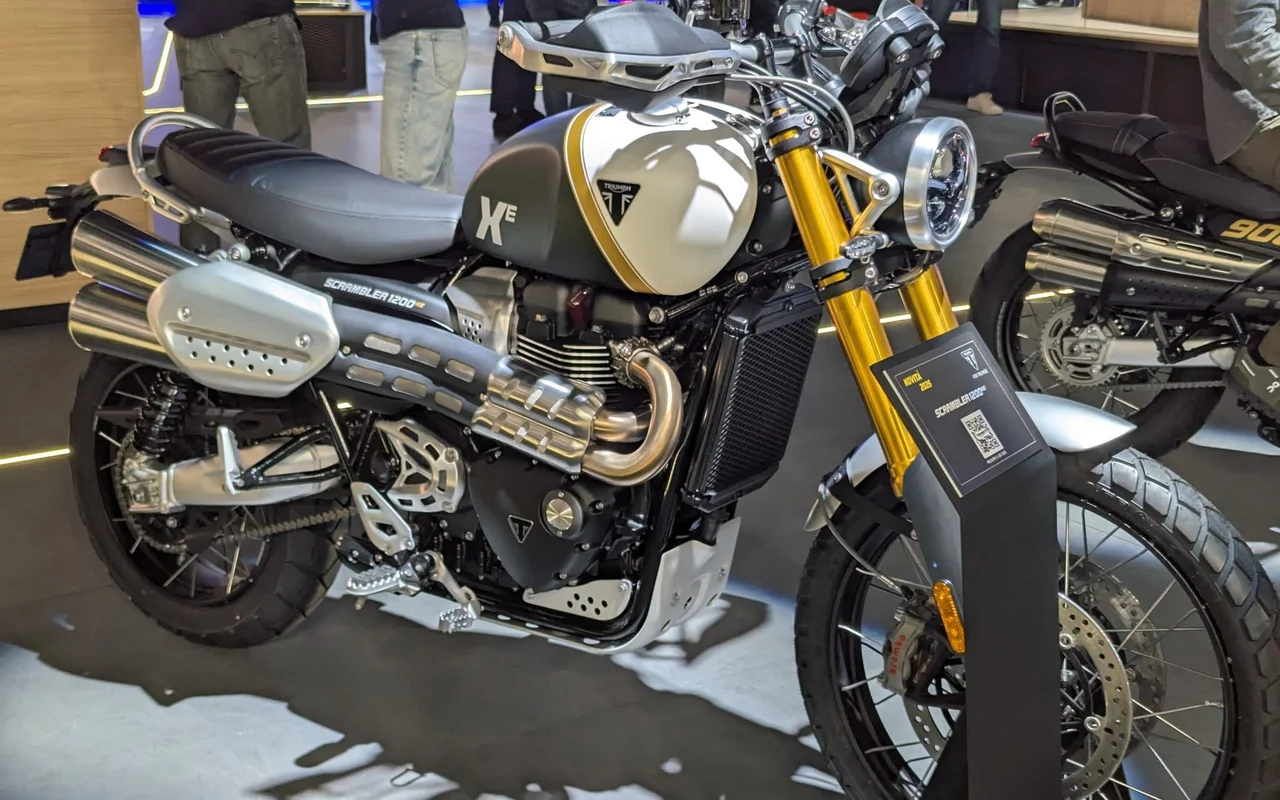

2026 Triumph Scrambler 1200 XE Overview
Triumph Scrambler 1200 XE is a classic motorcycle, displacing 1197 cc. Power comes from a Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder engine, a compression ratio of 11.0:1. On the performance side, it delivers 89 hp @ 7300 rpm of peak power and 110 Nm @ 4500 rpm of torque. On the road, the 2026 Scrambler 1200 XE tips the scales at 227 kg, carries a 16-litre fuel tank, offers a seat height of 870 mm and spans a 1570 mm wheelbase. That's roughly 32.9 kg heavier than the average classic motorcycle in our database. The full 2026 Triumph Scrambler 1200 XE spec sheet below covers every technical detail, from suspension travel to tyre sizes.
2026 Scrambler 1200 XE - Pros & Cons
Strengths
-
⚡
Strong power output: With 89 hp @ 7300 rpm and 110 Nm @ 4500 rpm of torque on tap, the Scrambler 1200 XE is no slouch for its class.
-
🔧
Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
Considerations
-
📏
Tall seat height: At 870 mm, shorter riders will likely be on tiptoes at a standstill - worth sitting on one before you buy.
-
⚙️
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.
Wear Points & Servicing Notes
Cooling system servicing
Scrambler 1200 XE's Liquid cooled setup is low-maintenance provided the coolant interval is kept - old, acidic coolant is the main cause of long-term corrosion in the water passages.
Fuelling & injector care
The Multipoint sequential electronic fuel injection on the Scrambler 1200 XE needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.
Brake disc and pad wear
Braking up front comes from Twin 320mm discs, Brembo 4 piston M4.30 radial monoblock calipers, OC-ABS - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.
Suspension condition on used examples
The Scrambler 1200 XE's suspension runs Showa ø47mm Upside-down BP-SFF forks, adjustable for preload, compression and rebound damping at the front. The rear uses Öhlins twin RSU's with piggy-back reservoirs and twin springs. Adjustable for preload, compression and rebound damping. Fork-seal condition and rear linkage play are the two things worth checking before buying used.
Final drive maintenance
The Scrambler 1200 XE uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.
Frame & chassis check
Built around a Tubular steel with with steel cradles, twin-sided aluminum swingarm, the Scrambler 1200 XE's chassis is straightforward to inspect: look for corrosion, cracks or repair welds around stress points like the head-stock and swingarm mounts.
Handling the weight at a standstill
227 kg puts the Scrambler 1200 XE toward the heavier end of its class. It's most noticeable at walking pace; once underway the mass settles into the handling rather than fighting it.
Scrambler 1200 XE - Buying & Maintenance Guide
What to check before buying
Before handing over money for a used 2026 Triumph Scrambler 1200 XE, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy Scrambler 1200 XE should catch quickly and settle into a smooth idle.
Oil and filter changes
Nothing protects a Scrambler 1200 XE's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). Match the viscosity grade to what the owner's manual specifies, not what's cheapest.
Fuel system care
Fuel injection on the Scrambler 1200 XE needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.
2026 Triumph Scrambler 1200 XE - Frequently Asked Questions
What engine does the 2026 Triumph Scrambler 1200 XE have?
The 2026 Triumph Scrambler 1200 XE uses a Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder engine with 1197 cc of displacement. It is liquid cooled.
How much does the 2026 Triumph Scrambler 1200 XE weigh?
The 2026 Triumph Scrambler 1200 XE weighs 227 kg. This is the manufacturer's wet figure.
How much power does the 2026 Triumph Scrambler 1200 XE make?
The 2026 Triumph Scrambler 1200 XE produces 89 hp @ 7300 rpm of power and 110 Nm @ 4500 rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2026 Triumph Scrambler 1200 XE?
The 2026 Triumph Scrambler 1200 XE has a 16-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 266-320 km between stops.
Is the 2026 Triumph Scrambler 1200 XE suitable for shorter riders?
The 2026 Triumph Scrambler 1200 XE has a seat height of 870 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2026 Triumph Scrambler 1200 XE have?
The 2026 Triumph Scrambler 1200 XE uses Twin 320mm discs, Brembo 4 piston M4.30 radial monoblock calipers, OC-ABS at the front and Single 255mm disc, single piston floating Nissin caliper, OC-ABS at the rear.
What tyre sizes does the 2026 Triumph Scrambler 1200 XE use?
The 2026 Triumph Scrambler 1200 XE runs 90/90-21 front and 150/70 R17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2026 Triumph Scrambler 1200 XE have?
The 2026 Triumph Scrambler 1200 XE is fitted with a 6 Speed transmission.
Triumph Scrambler 1200 XE Spec Evolution
The Triumph Scrambler 1200 XE was produced across 6 model years (2020-2026). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2020 |
2021 |
2022 |
2023 |
2024 |
2026 |
| Max Power |
88.8 hp / 66.2 kW @ 7400 rpm |
89 hp / 66.2 kW @ 7250 rpm |
- |
- |
89 hp / 66.2 kW @ 7250 rpm |
89 hp / 66.2 kW @ 7300 rpm |
| Wet Weight |
- |
230 kg / 507 lbs |
- |
- |
230 kg / 507 lbs |
227 kg / 500 lbs |
| Engine Detail |
Four stroke, 270° crank angle parallel twin, SOHC |
Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder |
270° crank angle parallel-twin |
270° crank angle parallel-twin |
Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder |
Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder |
| Seat Height |
870 mm / 34.3 in |
870 mm / 34.3 in |
870 mm / 34.3 in. |
870 mm / 34.3 in. |
870 mm / 34.3 in |
870 mm / 34.3 in |
| Fuel Capacity |
15.8 Litres / 4.2 US gal / 3.7 Imp gal |
16 Litres / 4.2 US gal |
16.00 litres / 4.23 US gallons |
16.00 litres / 4.23 US gallons |
15 Litres / 4.0 US gal |
16 Litres / 4.2US gal |
| CO2 |
118.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
106.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
- |
- |
| Comments |
- |
Cruise control. USB charging. Immobilizer. |
5 ride modes. Cruise control. USB charging. Immobilizer. |
6 riding modes Road, Rain, Sport, Rider Configurable, Off-Road and Off-Road Pro. Cruise control. USB charging. Immobilizer. |
- |
- |
| Frame Type |
Tubular steel cradle |
Tubular steel with aluminum cradles, Twin-sided, aluminum, 579 mm long swingarm |
Tubular steel with aluminium cradle. Twin-sided, aluminum swingarm. |
Tubular steel with aluminium cradle. Twin-sided, aluminum swingarm. |
Tubular steel with aluminum swingarm |
Tubular steel with with steel cradles, twin-sided aluminum swingarm |
Key Specifications
Engine
Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder
Power
89 hp / 66.2 kW @ 7300 rpm
Torque
110 Nm / 81.1 lb-ft @ 4500 rpm
Top Speed
Not published by manufacturer
Fuel Capacity
16 Litres / 4.2US gal
Advertisement
Full 2026 Triumph Scrambler 1200 XE Specifications
Year
2026
Make Model
Triumph Scrambler 1200 XE
Seat Height
870 mm / 34.3 in
Wheelbase
1570 mm / 61.8 in
Height
1250 mm / 49.2 in without mirrors
Length
1250 mm / 49.2 in without mirrors
Width
905 mm / 35.6 in with handlebars
Fuel Capacity
16 Litres / 4.2US gal
Wet Weight
227 kg / 500 lbs
Displacement
1197 cc / 73.0 cu-in
Engine Detail
Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder
Bore x Stroke
97.6 x 80.0 mm
Compression Ratio
11.0:1
Cooling System
Liquid cooled
Emissions
Euro 5+
Exhaust
Single skin, brushed 2-into-1 exhaust system with high-level silencer
Fuel Induction
Multipoint sequential electronic fuel injection, ride by wire
Ignition
Digital - inductive type
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multi-plate assist clutch
Final Drive
O ring chain
Transmission / Drive
6 Speed
Frame Type
Tubular steel with with steel cradles, twin-sided aluminum swingarm
Suspension - Front
Showa ø47mm Upside-down BP-SFF forks, adjustable for preload, compression and rebound damping.
Suspension - Rear
Öhlins twin RSU's with piggy-back reservoirs and twin springs. Adjustable for preload, compression and rebound damping
Rake
26.9°
Trail
129 mm / 5.07 in
Wheel Travel - Front
249 mm / 9.8 in
Wheel Travel - Rear
249 mm / 9.8 in
Instrumentation
Multi-function instruments with colour TFT screen
Brakes - Front
Twin 320mm discs, Brembo 4 piston M4.30 radial monoblock calipers, OC-ABS
Brakes - Rear
Single 255mm disc, single piston floating Nissin caliper, OC-ABS
ABS
Cornering aware ABS
Tyres - Front
90/90-21
Tyres - Rear
150/70 R17
Wheels - Front
36-spoke 21 x 2.15 in, aluminum rims
Wheels - Rear
32-spoke 17 x 4.25 in, aluminum rims
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
