Key Specifications
Engine
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Power
49 kW / 66 hp @ 7250 rpm
Torque
71 Nm / 7.24 kgf-m / 52 ft-lb @ 6000 rpm
Fuel Capacity
16.0 Litres / 4.2 US gal / 3.5 Imp gal
Advertisement

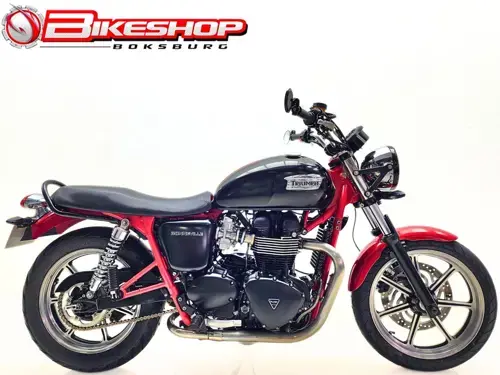

Full 2013 Triumph Bonneville Specifications
Year
2013
Make Model
Triumph Bonneville
Seat Height
739 mm / 29.1 in
Wheelbase
1488 mm / 58.6 in
Height
1130 mm / 44.5 in
Length
2113 mm / 83.2 in
Width
840 mm / 33.1 in
Dry Weight
205 kg / 451 lbs
Fuel Capacity
16.0 Litres / 4.2 US gal / 3.5 Imp gal
Wet Weight
225 kg / 495 lbs
Displacement
865 cc / 52.8 cu in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
90 x 68 mm
Compression Ratio
9.2:1
Cooling System
Air-cooled
Engine Oil Specification
Synthetic, 15W/50
Fuel Induction
Multipoint Sequential Fuel injection
Ignition
Digital
Lubrication
Wet sump
Clutch
Wet, multi plate
Final Drive
Chain, X-ring
Transmission / Drive
5 Speed
Frame Type
Tubular steel cradle, swing arm: twin-sided, tubular steel
Suspension - Front
41mm Kayaba telescopic forks
Suspension - Rear
Kayaba chrome spring twin shocks with adjustable preload
Rake
26°
Trail
106 mm / 4.2 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
106 mm / 4.17 in
Brakes - Front
Single 310 mm disc, 2 piston Nissen floating calipers
Tyres - Front
100/70 R17
Tyres - Rear
130/80 R17
Wheels - Front
Cast aluminium alloy, 7 spokes, 17 x 3.0 in
Wheels - Rear
Cast aluminium alloy, 7spokes, 17 x 3.5 in
