Key Specifications
Torque
64 Nm / 6.53 kg-m / 47.2 lb-ft @ 7200 rpm
Top Speed
204.3 km/h / 126.9 mph
Fuel Capacity
4.49 gallons
Advertisement

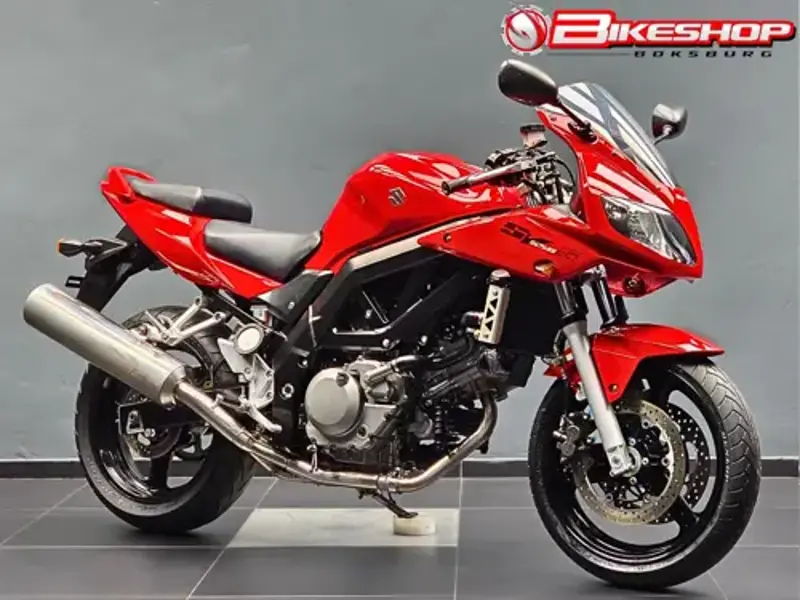

Full 2006 Suzuki SV 650S Specifications
Year
2005 - 06
Colours
Blue, Yellow
Colours
Blue, Red
Make Model
Suzuki SV 650S
Ground Clearance (in.)
6.1 inches
Ground Clearance (mm)
155 mm
Height (in.)
46.1 inches
Height (mm)
1,170 mm
Length (in.)
82.1 inches
Length (mm)
2,085 mm
Seat Height (in.)
31.5 inches
Seat Height (mm)
800 mm
Wheelbase (in.)
56.3 inches
Wheelbase (mm)
1,430 mm
Width (in.)
28.7 inches
Width (mm)
730 mm
Ground Clearance (in.)
6.1 inches
Ground Clearance (mm)
155 mm
Height (in.)
46.1 inches
Height (mm)
1,170 mm
Length (in.)
81.9 inches
Length (mm)
2,080 mm
Seat Height (in.)
31.5 inches
Seat Height (mm)
800 mm
Wheelbase (in.)
56.3 inches
Wheelbase (mm)
1,430 mm
Width (in.)
28.7 inches
Width (mm)
730 mm
Seat Height
800 mm / 31.5 in
Wheelbase
1 430 mm / 56.3 in
Ground Clearance
155 mm / 6.1 in
Height
1175 mm / 46.3 in
Length
2130 mm / 83.9 in
Width
730 mm / 28.7 in
Dry Weight (lbs.)
372.6 pounds
Dry Weight (kg)
169
Fuel Capacity (gal.)
4.49 gallons
Wet Weight (kg)
189
Fuel Capacity (l)
17.00 litres
Fuel Capacity (l)
17.00 litres
Fuel Capacity (gal.)
4.49 gallons
Dry Weight (lbs.)
372.6 pounds
Dry Weight (kg)
169
Dry Weight
169 kg / 372 lbs
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal
Oil Capacity
2.3 Litres / 2.4 US qt / 2.0 Imp qt
Wet Weight
189 kg / 417 lbs
Stroke
4
Bore x Stroke (in,)
3.2 x 2.5 inches
Bore x Stroke (mm)
81.0 x 62.6 mm
Displacement (cc)
645.00 cc
Displacement (ci)
39.36 cubic inches
Engine Type
V2
Fuel Control
DOHC
Fuel Control
DOHC
Engine Type
V2
Displacement (ci)
39.36 cubic inches
Displacement (cc)
645.00 cc
Bore x Stroke (mm)
81.0 x 62.6 mm
Bore x Stroke (in,)
3.2 x 2.5 inches
Stroke
4
Displacement
645 cc / 39.4 cu-in
Engine Detail
Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder
Fuel System
Injection
Fuel System
Injection. Fuel Injection
Bore x Stroke
81 x 62.6 mm
Compression Ratio
11.5:1
Compression Ratio
11.5:1
Cooling System
Liquid cooled
Engine Lubrication
Wet Sump
Engine Oil Specification
Synthetic, 10W40
Fuel Consumption
4.65 L/100 km / 21.5 km/l / 50.6 US mpg / 60.7 Imp mpg
Fuel Induction
Fuel Injection
Ignition
Digital transistorised
Ignition
Digital/Transistorized
Lubrication
Wet sump
Spark Plug
NGK, CR8E
Starter
Electric
Clutch
Wet multiple plate coil springs
Clutch
Wet, multiple discs, cable operated
Final Drive
Chain
Final Drive
Chain, #525 O-ring
Final Drive Ratio
45/14 (3.000)
Gear Ratios
1st 32/13 (2.461) / 2nd 32/18 (1.777) / 3rd 29/21 (1.380) / 4th 27/24 (1.125) / 5th 25/26 (0.961) / 6th 23/27 (0.851)
Gearbox
6-speed
Gearbox
6-speed
Primary Drive Ratios
34/71 (2.088)
Transmission / Drive
6 Speed
Frame Type
Pressure cast aluminium alloy diamond truss
Suspension - Front
Telescopic, coil spring, oil damped, fully adjustable preload
Suspension - Front
Telescopic 41 mm, coil spring, oil damped, fully adjustable preload
Suspension - Rear
Link-type, 7-way adjustable spring preload
Suspension - Rear
KYB single shock, adjustable spring preload
Rake
25°
Trail
102 mm / 4.0 in
Wheel Travel - Front
130 mm / 5.1 in
Wheel Travel - Rear
125 mm / 4.7 in
Brakes - Front
2 x 290 mm Discs, 2 piston calipers
Brakes - Front
Double disc
Brakes - Rear
Single 240 mm disc, 2 piston caliper
Brakes - Rear
Single disc
Tyres - Front
120/60 ZR17
Tyres - Front
120/60-ZR17
Tyres - Rear
160/60 ZR17
Tyres - Rear
160/60-ZR17
Wheels - Rear
4.5 x 17
