Key Specifications
Engine
In-line four, four-stroke
Weight
214 kg / 471.8 lbs
Fuel Capacity
19.00 litres / 5.02 US gallons
Advertisement

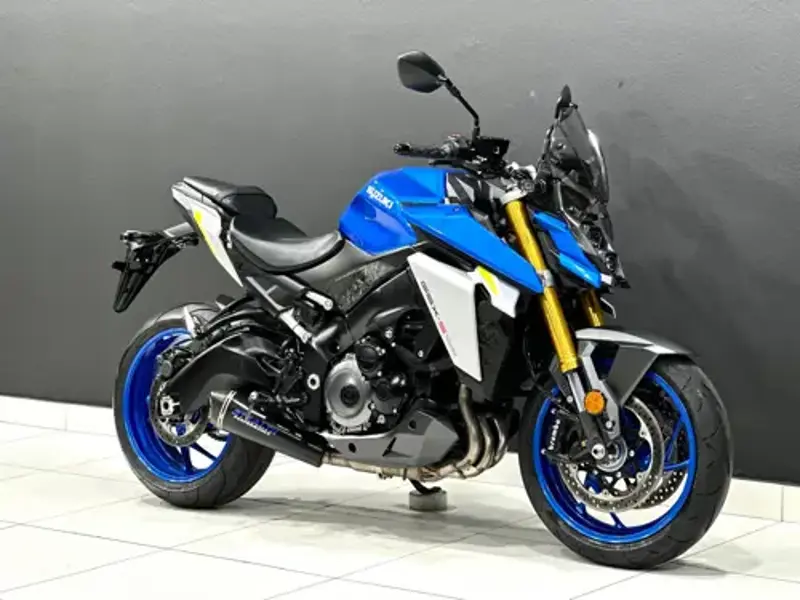

Full 2023 Suzuki GSX-S 1000 Specifications
Comments
Traction Control. Ride modes.
Colours
Metallic Triton Blue, Glass Sparkle Black
Warranty
12-month unlimited mileage limited warranty
Ground Clearance (mm)
140 mm
Ground Clearance (in.)
5.5 inches
Seat Height
810 mm / 31.9 in.
Wheelbase
1460 mm / 57.5 in.
Height
1080 mm / 42.5 in.
Length
2115 mm / 83.3 in.
Width
810 mm / 31.9 in.
Dry Weight
214 kg / 471.8 lbs
Fuel Capacity
19.00 litres / 5.02 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
60.96 cubic inches
Displacement (cc)
999.0 cc
Bore x Stroke (mm)
73.4 x 59.0 mm
Bore x Stroke (in,)
2.9 x 2.3 inches
Fuel System
Injection. Ride-by-Wire electronic throttle bodies
Compression Ratio
12.2:1
Engine Lubrication
Wet sump
Exhaust
Stainless steel, 4-2-1 exhaust system
Ignition
Electronic ignition (Transistorized)
Starter
Electric
Valve System
4
Clutch
Wet, multi-plate SCAS type
Final Drive
Chain (final drive)
Gearbox
6-speed
Primary Drive
Chain, RK525GSH, 525 x 116 links
Frame Type
Twin-spar aluminum
Suspension - Front
Inverted telescopic, coil spring, oil damped
Suspension - Rear
Link type, single shock, coil spring, oil damped
Rake
25.0°
Trail
100 mm / 3.9 in.
Wheel Travel - Front
120 mm / 4.7 in.
Instrumentation
LCD display
Lighting system
Stacked LED headlight
Brakes - Front
Double disc. Brembo 4-piston, ABS
Brakes - Rear
Single disc. Nissin, 1-piston, single disc, ABS
Rims
Cast aluminum. Dunlop’s Roadsport 2 radial tires.
Tyres - Front
120/70-ZR17
