Key Specifications
Engine
In-line four, four-stroke
Torque
117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 10000 Revolutions"
Weight
202.0 kg / 445.3 lbs
Fuel Capacity
16.00 litres / 4.23 US gallons
Advertisement

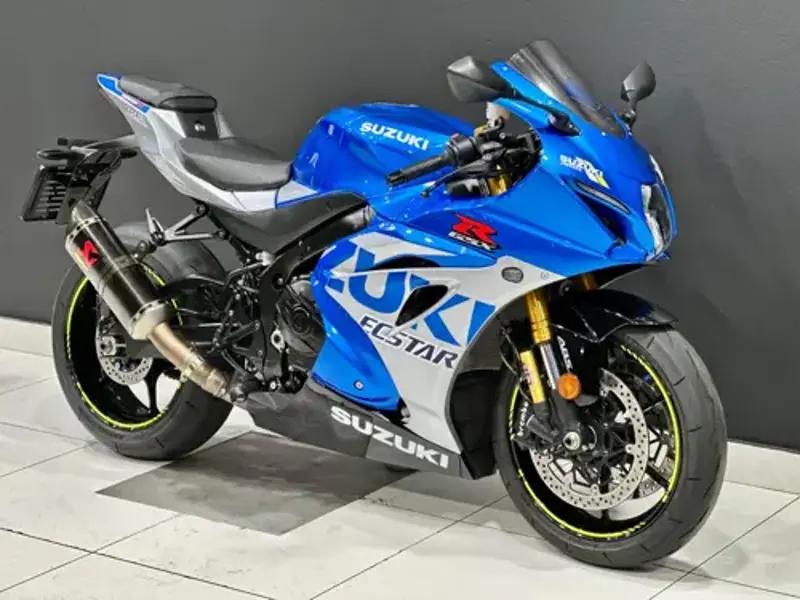

Full 2022 Suzuki GSX-R 1000R Specifications
Comments
IMU, adjustable traction control, Suzuki Bi-Directional Quick Shift System, and Suzuki Drive Mode Selector, Launch Control
Colours
Metallic Matte Black/Glass Matte Mechanical Gray, Metallic Matte Black
Warranty
12 month unlimited mileage limited warranty.
Ground Clearance (mm)
130 mm
Ground Clearance (in.)
5.1 inches
Seat Height
825 mm / 32.5 in.
Wheelbase
1485 mm / 58.5 in.
Height
1145 mm / 45.1 in.
Length
2075 mm / 81.7 in.
Width
705 mm / 27.8 in.
Fuel Capacity
16.00 litres / 4.23 US gallons
Wet Weight
202.0 kg / 445.3 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
61.01 cubic inches
Displacement (cc)
999.8 cc
Bore x Stroke (mm)
76.0 x 55.1 mm
Bore x Stroke (in,)
3.0 x 2.2 inches
Engine Detail
Titanium valves
Fuel System
Injection. Ride-by-Wire throttle bodies
Compression Ratio
13.2:1
Engine Lubrication
Wet sump with oil cooler
Exhaust
4-2-1 exhaust
Starter
Electric
Valve System
4
Chain Size
525
Clutch
Wet, multi-plate
Final Drive
Chain (final drive)
Gearbox
6-speed
Number of Chain Links
120
Primary Drive
DID 525HV3 chain
Frame Type
Twin-spar made of five cast sections
Suspension - Front
Inverted telescopic, coil spring, oil damped
Suspension - Rear
Link type, single shock, coil spring, oil damped
Seat
Passenger seat can exchanged with a color-matched solo tail cowl.
Wheel Travel - Front
120 mm / 4.7 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Instrumentation
LCD multifunction instrument panel, black background.
Lighting system
LED headlight
Brakes - Front
Double disc. Brembo 4-piston. ABS.
Brakes - Rear
Single disc. Nissin-1 piston. ABS.
Tyres - Front
120/70-ZR17
