Key Specifications
Power
146 kW / 195.7 hp @ 9800 rpm
Torque
154 Nm / 15.81 kg-m / 113.6 lb-ft @ 7200 rpm
Top Speed
296.9 km/h / 184.49 mph
Fuel Capacity
21.00 litres

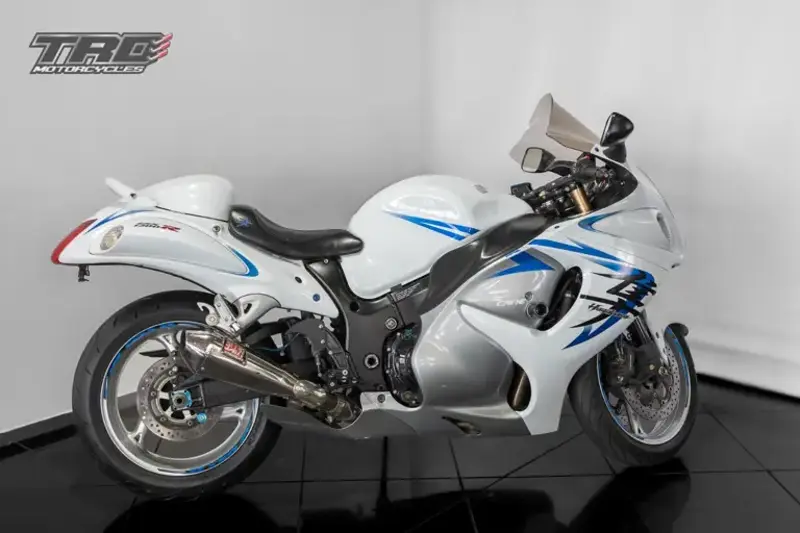

Full 2009 Suzuki GSX 1300R Hayabusa Specifications
Year
2009
Colours
Black/Gray, Gray/Silver, White/Silver
Make Model
Suzuki GSX 1300R Hayabusa
Width (mm)
735 mm
Width (in.)
28.9 inches
Wheelbase (mm)
1,480 mm
Wheelbase (in.)
58.3 inches
Seat Height (mm)
805 mm
Seat Height (in.)
31.7 inches
Length (mm)
2,190 mm
Length (in.)
86.2 inches
Height (mm)
1,165 mm
Height (in.)
45.9 inches
Ground Clearance (mm)
120 mm
Ground Clearance (in.)
4.7 inches
Seat Height
805 mm / 31.7 in
Wheelbase
1480 mm / 58.3in
Ground Clearance
120 mm / 4.7 in
Height
1165 mm / 45.9 in
Length
2190 mm / 86.2 in
Width
735 mm / 28.9 in
Wet Weight (lbs.)
573.2 pounds
Wet Weight (kg)
260.0 kg
Fuel Capacity (l)
21.00 litres
Fuel Capacity (gal.)
5.55 gallons
Dry Weight (lbs.)
573.2 pounds
Dry Weight (kg)
260
Dry Weight
220 kg / 485 lbs
Fuel Capacity
21 Litres / 5.5 US gal / 4.6 Imp gal
Wet Weight
266 kg / 586 lbs
Stroke
4
Fuel Control
DOHC
Engine Type
Single cylinder
Displacement (ci)
81.77 cubic inches
Displacement (cc)
1340.00 cc
Bore x Stroke (mm)
81.0 x 65.0 mm
Bore x Stroke (in,)
3.2 x 2.6 inches
Displacement
1340 cc / 81.8 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Suzuki SDTV fuel injection system with dual injectors per cylinder and ram air intake with large volume airbox
Bore x Stroke
81 x 65 mm
Compression Ratio
12.5:1
Cooling System
Liquid cooled
Engine Lubrication
Wet Sump
Exhaust
4-into-2-into-1 exhaust system with a large capacity catalyzer, oxygen sensors and an oval cross section canister with dual openings that meets Euro 3 and Tier 2 regulation
Fuel Consumption
6.1 L/100 km / 16.3 km/l / 38.3 US mpg / 46.0 Imp mpg
Fuel Induction
Suzuki Fuel Injection fuel injection
Ignition
Electronic
Lubrication
Wet sump
Starter
Electric
Clutch
Clutch Type: Wet multi-plate, manual Clutch Actuation System: Hydraulic Clutch Spring Type: Coil Number of Clutch Springs: 6 Number of Clutch Plates: 10 Drive; 9 Driven
Final Drive
Chain
Final Drive Ratio
2.388 (43/18)
Gear Ratios
1st 1.596 / 2nd 2.615 / 3rd 1.937 / 4th 1.526 / 5th 1.136 / 5th 1.136
Gearbox
6-speed
Primary Drive Ratios
1.596 (83/52)
Transmission / Drive
6 Speed
Frame Type
Design (Material): Twin-spar (aluminum alloy)
Suspension - Front
Inverted telescopic coil springs, spring preload, rebound and compression damping fully adjustable.
Suspension - Rear
Link type, oil damped, coil springs, spring preload, rebound and compression damping fully adjustable.
Rake
24.2°
Trail
98 mm / 3.8 in
Brakes - Front
2 x 310 mm Discs, 4 piston calipers
Brakes - Rear
Single 260 mm disc, 1 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
190/50 ZR17
Wheels - Front
17 M/C x MT3.50, cast aluminum alloy
Wheels - Rear
17 M/C x MT6.00, cast aluminum alloy
