Key Specifications
Engine
In-line four, four-stroke
Torque
102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 6700 Revolutions">RPM
Fuel Capacity
17.50 litres

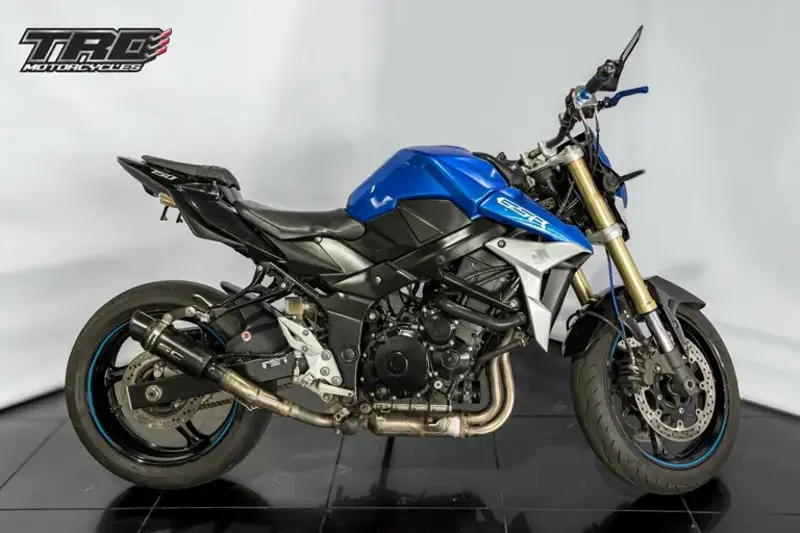

Full 2012 Suzuki GSR750 Specifications
Comments
Italian brand.
Colours
Metallic Triton Blue/Glass Splash White, Marble Daytona Yellow/Glass Sparkle Black
Warranty
12 Month Limited Warranty
Width (mm)
865 mm
Width (in.)
34.1 inches
Wheelbase (mm)
1,470 mm
Wheelbase (in.)
57.9 inches
Seat Height (mm)
800 mm
Seat Height (in.)
31.5 inches
Length (mm)
2,170 mm
Length (in.)
85.4 inches
Ground Clearance (mm)
162 mm
Ground Clearance (in.)
6.4 inches
Wet Weight (lbs.)
418.9 pounds
Wet Weight (kg)
190.0 kg
Fuel Capacity (l)
17.50 litres
Fuel Capacity (gal.)
4.62 gallons
Dry Weight (lbs.)
436.5 pounds
Dry Weight (kg)
198
Fuel Reserve (l)
4.50 litres
Fuel Reserve (gal.)
1.19 gallons
Fuel Control
DOHC
Bore x Stroke (in,)
2.8 x 1.8 inches
Bore x Stroke (mm)
72.0 x 46.0 mm
Engine Type
In-line four, four-stroke
Displacement (cc)
749.00 cc
Displacement (ci)
45.70 cubic inches
Engine Detail
Forged pistons, shot-peened conrods, chrome-nitride-coated upper compression and oil control rings, and pentagonal ventilation holes
Fuel System
Injection
Compression Ratio
12.3:1
Emissions
Catalytic converter
Engine Lubrication
Wet sump
Exhaust
Triangle-shaped muffler, stainless steel heat shield
Ignition
Digital CDI
Starter
Electric
Valve System
4
Clutch
Wet, multi-plate
Final Drive
Chain
Gearbox
6-speed
Primary Drive
RK525ROZ5Y, 116 links
Trail (in.)
3.9 inches
Trail (mm)
100 mm
Wheel Travel - Front (in.)
5.9 inches
Wheel Travel - Front (mm)
150 mm
Wheel Travel - Rear (in.)
5.9 inches
Wheel Travel - Rear (mm)
150 mm
Frame Type
Verlicchi high strength steel tube tellis frame
Suspension - Front
Inverted KYB front forks, 41 mm
Suspension - Rear
Steel swingarm fitted with a KYB monoshock
Rake
24.5°
Instrumentation
Electronic/analogical rev counter and speedometer with multifunctional LCD display
Brakes - Rear Diameter (mm)
220 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front
Double disc. Optional ABS
Brakes - Rear
Single disc
Rims
Three-spoke cast aluminum
Tyres - Front
120/70-R17
Tyres - Rear
180/55-R17
